Technical FAQ
Q1: How does the 10-port Ethernet configuration benefit large-scale surveillance?

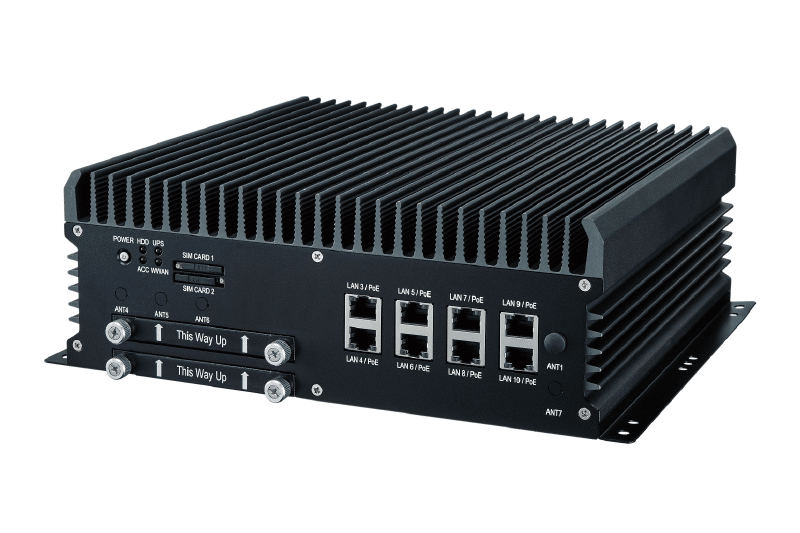

A: The ABOX-5200 provides 10x RJ45 GbE ports, with an optional configuration for 8x PoE (100W max). This extensive connectivity allows for the simultaneous integration of multiple IP cameras, sensors, and communication devices, providing a high-bandwidth backbone for real-time video surveillance without the need for external network switches.
Q2: What makes the ABOX-5200 suitable for vehicle-based installations?
A: The system is E-Mark certified and features Smart Ignition Power Management, which detects ignition signals to manage system startup and shutdown delays. This prevents hardware damage from power surges and ensures that all data is securely processed and saved during the vehicle’s engine cycles.
Q3: Can the ABOX-5200 operate reliably in extreme outdoor temperatures?
A: Yes. Designed for the harshest conditions, the ABOX-5200 features a completely fanless design and a rugged aluminum alloy chassis. It is tested to operate in a wide temperature range from -40°C to 70°C, making it the ideal choice for non-climate-controlled environments and outdoor video surveillance systems.
Q4: How does the RAID support enhance data reliability for field control?
A: The platform supports RAID 0, 1, and 5 configurations through its dual 2.5” SATA drive bays. By utilizing RAID 1 or 5, users can ensure data redundancy, meaning that even if a drive fails, the system remains operational and critical surveillance footage or field data is protected from loss.
Q5: What expansion options are available for mobile communication and positioning?
A: The ABOX-5200 offers significant flexibility with dual SIM card sockets and 3x Full-size Mini-PCIe slots. These can be used to add 4G LTE, Wi-Fi, GPS, or CAN bus modules, allowing the system to maintain constant real-time communication and precise asset tracking in mobile and remote industrial applications.
