Product

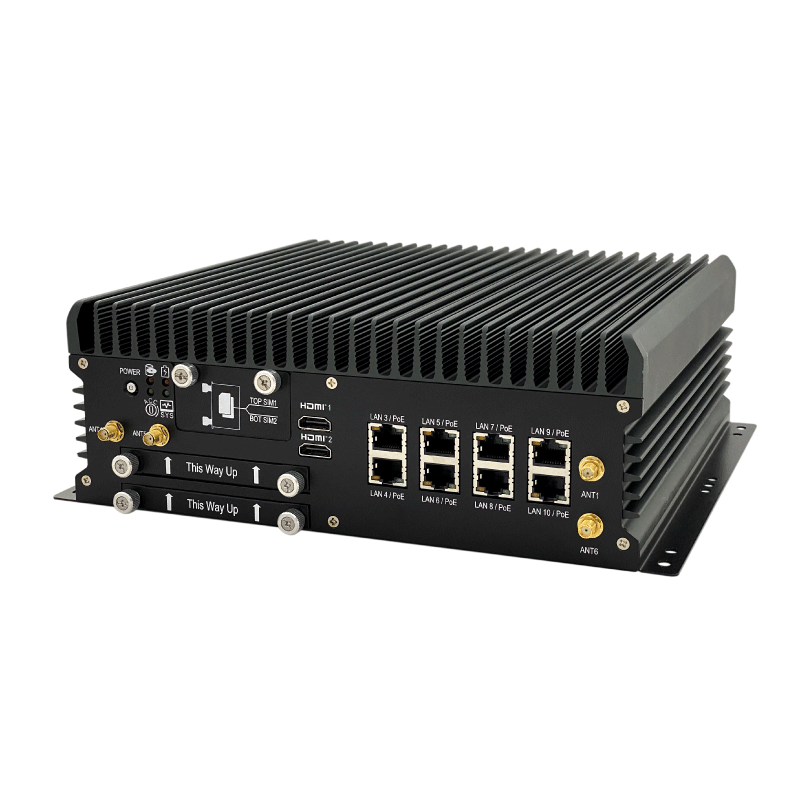

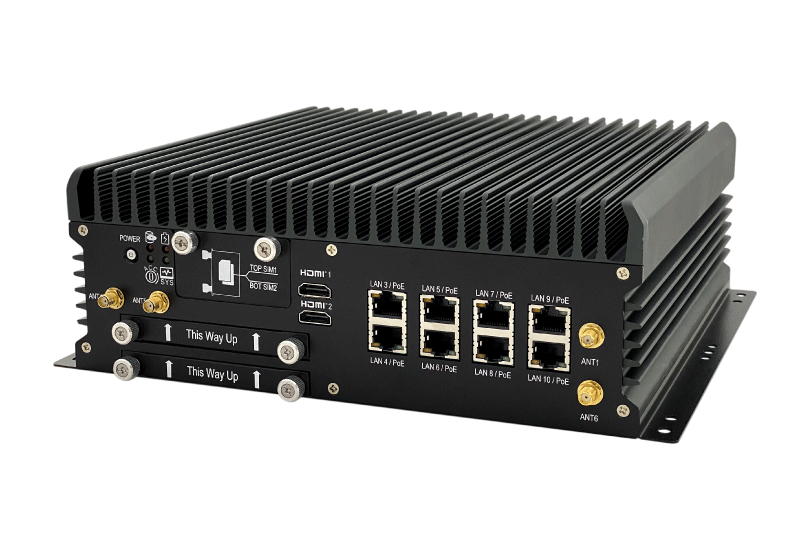

ABOX-5210(P)(G)

AI GPU Computer for Edge Computing

Intel® Xeon® W-1290TE Processor / 10th Generation Intel® Core™ i9 Processor / NVIDIA GPU

Edge AI Computing System

Product Status: Available

Features

  • Intel® Xeon® W-1290TE Processor / 10th Generation Intel® Core™ i9 Processor
  • NVIDIA® RTX™ A4500/A2000/3000 & NVIDIA® T1000
  • 8 x DI, and 4 x DO and 3 x RS-232/422/485
  • 1 x M.2 Key B, 1 x M.2 Key A-E & 3 x Mini PCIe Expansion Slots
  • Dual Hot-swappable SATA Storage RAID 0/1/5
  • 9~48V DC Power Input
  • 10 x GbE RJ45 (Optional 8 x PoE & 8 x M12 X-Code Connectors)
  • Rolling Stock EN 50155 & EN 50121-3-2 Certified

Introduction

Intel® Xeon® or 10th Generation Intel® Core™ processor and NVIDIA® GPU both powers ABOX-5210(G) Series in Edge AI computing. It can provide high computing performance in graphic processing by harnessing the power of its graphics processing unit (GPU). ABOX-5210(G) features the dual hot-swappable SATA storage RAID 0, 1, 5, allowing more hardware maintenance and expansion flexibility. ABOX-5210(G) offers the best solution for customers, and it can be adapted to various industrial requirements, including Smart Solutions (Smart Patrol, Smart Factory Automation Control System), Surveillance Systems (Bus Surveillance Fleet Management, Outdoor Video Surveillance System), and Visual Management (Automatic License Plate Recognition, Vision Control System, Mining Machines).

SYSTEM

Processor

Intel® Xeon® W-1290TE (20M Cache 1.8GHz up to 4.6GHz)

*Use only with Intel W480E
10th Generation Intel® Core™ i9-10900TE (20M Cache 2.0GHz up to 4.5GHz)
10th Generation Intel® Core™ i7-10700TE (16M Cache 2.0GHz up to 4.4GHz)
10th Generation Intel® Core™ i5-10500TE (12M Cache 2.3GHz up to 3.7GHz)
10th Generation Intel® Core™ i3-10100TE (6M Cache 2.3GHz up to 3.6GHz)
Intel® Celeron® Processor G5900TE (2M Cache 3.0GHz)

Chipset

Q470E / W480E

Memory

2 x DDR4 2666/2933 MHz SO-DIMM up to 64GB (Optional ECC support with Xeon W-1290TE)

Watchdog

2 ~ 255 Level Reset

TPM

2.0

GRAPHICS

Graphics Engine

N/A

HDMI®

2 (MXM Graphics)

DisplayPort

3 (Intel built-in GPU)

DVI

N/A

VGA

N/A

Resolution

Max Resolution (DP 1.2) : 4096 x 2340 @ 60Hz

AUDIO

Audio Codec

N/A

Line-out

1

Mic-in

1

Line-in

1

ETHERNET

LAN Chipset

9 x Intel i210-AT and 1 x i219LM (iAMT9.5 w/ i5, i7 only) Gb/s Ethernet Controllers Onboard Support PXE and WOL

LAN

10 x RJ45 Ports for GbE (Optional 8 with M12 X Coded Connectors and )

PoE

Optional 8 x PoE Total Max.120W

I/O

Serial Port

3 x RS 232/422/485 (option additional 1 x RS 232/422/485)

USB

4 x USB 3.2 5Gbps Ports

DIO

8 x DI (5~48VDC) and 4 x DO (5VDC, 100mA)

AIO

N/A

SIM Socket

N/A

Antenna

N/A

STORAGE

SSD/HDD

2 x 2.5″ drive bay for SATA TypemPCIe

mPCIe

N/A

mSATA

N/A

M.2

1 x M.2 2280 Key M slot supports NVMe and SATA SSD

*Thermal heatsink is required for M.2 storage. Please contact sales representative for more information.

RAID

0, 1, 5

EXPASION

Mini PCI Express

2 x Full Mini-PCle Slots and 1 x Full Mini-PCIe Slot w/ USB interface only for WWAN sharing 2 x SIM Card Sockets with M.2 B Key 3042 Slot

M.2

1x M.2 A-E Key 2230 slot, 1 x M.2 B Key 3042 Slot w/ 2 x SIM Card Sockets for WWAN
Patented Automatic SIM Card Detection

POWER

Power Input

9V – 48V DC Power Input

Power Protection

Automatics Recovery Short Circuit Protection

Smart Ignition

Vehicle Power Ignition for Variety Vehicle

Power-off Delay

Power off Delay Time Setting by BIOS and Software

Backup Battery Solution

Internal Battery Kit for 10 Mins Operating
(Charging Temp. 0~45oC, Discharging Temp. -10~60oC)
*UPS backup time varies depending on actual overall system power consumption and battery is required to be charged before using.
Patent No. : M447854 – Build-in Battery

MECHANICAL

Dimension

260(L) x 250(W) x 95(H) mm

Weight

5300g (bare-bone)

Construction

Aluminum Alloy

Mounting

Wall-mount

ENVIRONMENT

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-40°C ~ 70°C w/0.6 m/s airflow (for barebone system)

*The operating temp. varies by accessories installed. Patent No. : M565941 – Thermal Cooling

Storage Temp.

-40°C ~ 80°C

Vibration & Shock

N/A

IP Rating

N/A

CERTIFICATION

Certification

CE, FCC Class A, E-Mark, ECE R118, EN 50155, EN 45545-2 R25

Safety

N/A

Patent

N/A

OPERATIONAL SYSTEM

Windows

Windows 10 64bit

Linux

Ubuntu 20.04 64bit

Others

N/A

ORDERING INFORMATION

Model No.

ABOX-5210xyy-zz (x= P= w/PoE, x= Empty= w/o PoE, yy=G6=RTX 3000, yy=G7=T1000, zz=Z9= W-1290TE, zz= i9= i9-10900TE, zz= i7= i7-10700TE, zz= i5= i5-10500TE, zz= i3= i3-10100TE, zz= C1= G5900TE)

Description

Intel® Xeon® W Processor / 10th Generation Intel® Core™ Processors w/ NVIDIA® GPU/ 10 x GbE (Optional 8 x PoE)/ 3 x COM/ 3 x DP/ 2 x HDMI®/ 4 x USB 3.2 Gen 5Gbps/ 9-48V Input AI GPU Computing

State of Origin

Made in Taiwan
