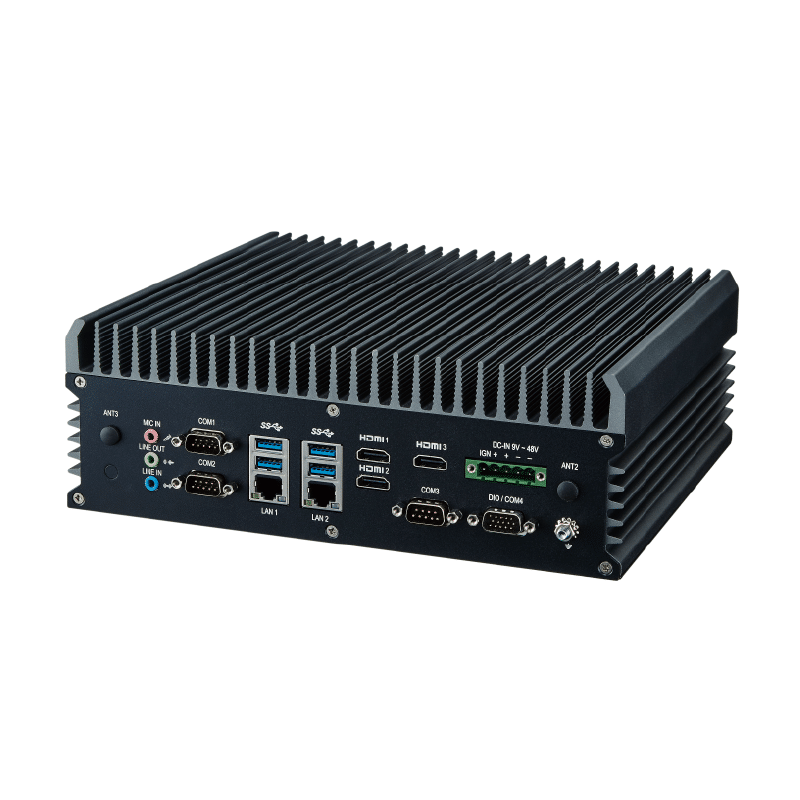

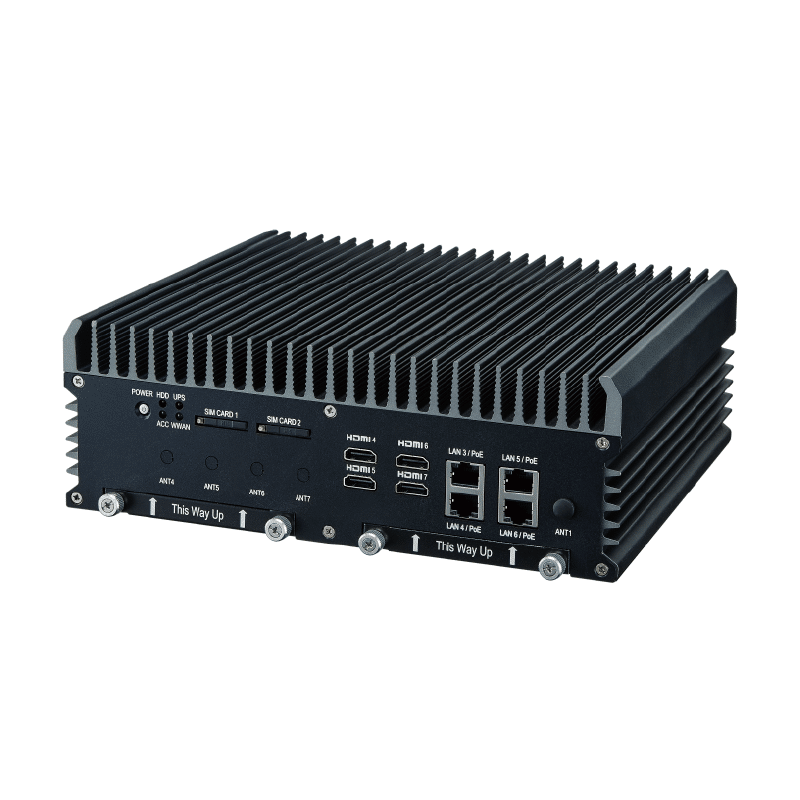

ABOX-5000(P)

Fanless Computer for Edge GPU

Intel® 6th/7th-Gen Quad Core Xeon/ Core i7/i5/i3 CPU w/ 4 x GbE/ 4 x ISO COM/ 2 x DP/ VGA/
4 USB 3.0 Fast Expansible Slot 9-36V Fanless Computer

Product Status: Available

Features

  • Intel® 6th/7th-Gen Quad Core Xeon/Core i7 LGA1151 CPU
  • 4 x RS-232/422/485 with 1.5KVrms isolated
  • 8 x GPI and 4 x GPO with 1.5KVrms isolated
  • 4 x GbE LAN w/ PoE
  • Dual Hot Swappable SATA Storage
  • 9-36V DC input and operating Temp.: -40°C ~ 70°C
  • Fast Expansible Slot support PCI-E, USB, SMBus, GPIO, and SATA

SYSTEM

Processor

Intel® Xeon E3-1268L v5 (8M, cache 2.4~3.4GHz)
Intel® Gen6 Core i7-6700TE (8M Cache 2.4GHz up to 3.4GHz)
Intel® Gen6 Core i5-6500TE (6M Cache 2.3GHz up to 3.3GHz)
Intel® Gen6 Core i3-6100TE (4M Cache 2.7GHz)

Chipset

Intel® Q170 for Intel® 6th-Gen Skylake-S Core-i series
Intel® C236 for Xeon Quad Core E3-1268L v5 (optional)

Memory

2 x DDR4 2133 MHz SO-DIMM up to 32GB

Watchdog

1 ~255 Level Reset

TPM

2.0

GRAPHICS

Graphics Engine

Intel® HD Graphics 530
DirectX Video Acceleration (DXVA) for Accelerating Video Processing – Full AVC/VC1/MPEG2 HW Decode Supports DirectX 11/10.1/10/9 and OpenGL 4.0

DisplayPort

2

VGA

1

(Triple Independent Display)

Resolution

Max Resolution (VGA): 1920×1200@ 60 Hz
Max Resolution (DP): 4096×2304@ 60 Hz

AUDIO

Line-out

1

Mic-in

1

Line-in

Optional

ETHERNET

LAN Chipset

3 x Intel® i210-AT and 1 x i219LM (iAMT9.5 w/ i5, i7 only) Gb/s Ethernet Controllers Onboard Support PXE and WOL

LAN

4 x RJ45 Ports

PoE

Optional for 4 x PoE 15.4W

I/O

Serial Port

4 x RS 232/422/485 w/1.5KVms isolation (Auto Direction Control)

USB

4 x USB 3.0 Ports

DIO

8 x GPI and 4 x GPO connector w/1.5KVms isolation

SIM Socket

2 x SIM Card Socket for 3G/LTE

STORAGE

Type

2 x 2.5” Drive Bay for SATA Type HDD/SSD RAID 0, 1, 5 1 x SATA DOM

EXPANSION

Mini PCI Express

3 Full and 1 Half Mini-PCIe Slot

FES Expansion

Support PCI-E Bus, USB Bus, SMBus, GPIO, and SATA Bus (Customized for Customer without NRE charge)

POWER

Power Input

9V – 36V DC Power Input

Power Protection

Automatics Recovery Short Circuit Protection

Smart Ignition

Vehicle Power Ignition for Variety Vehicle

Power-off Delay Control

Power off Delay Time Setting by BIOS and Software

Backup Battery Solution

Internal Battery Kit for 10 Mins Operating (Optional)

MECHANICAL

Dimensions

240(L) x 226(W) x 79(H) mm

Weight

3860g (Barebone)

Construction

Aluminum Alloy

Mounting

Wall-mount

ENVIRONMENT

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-40°C ~ 70°C (Default CPU 35Watt), ambient w/ 0.6m/s airflow

Storage Temp.

-40°C ~ 80°C

Vibration & Shock

IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis with SSD

MIL-STD-810G, Method 514.6, Procedure I, Category

Shock Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD

CERTIFICATION

Certification

CE, FCC Class A, E13

ORDERING INFORMATION

Model No.

ABOX-5000P-i7 Optional for i5/i3/C1

Description

Intel® 6th/7th-Gen Quad Core Xeon/ Core i7/i5/i3 CPU w/ 4 GbE/ 4 ISO COM/ 2 DP/ VGA/ 4 USB 3.0 Fast Expansible Slot/ 9-36V Fanless Computer

State of Origin

Made in Taiwan
