VDB-800S (EOL)

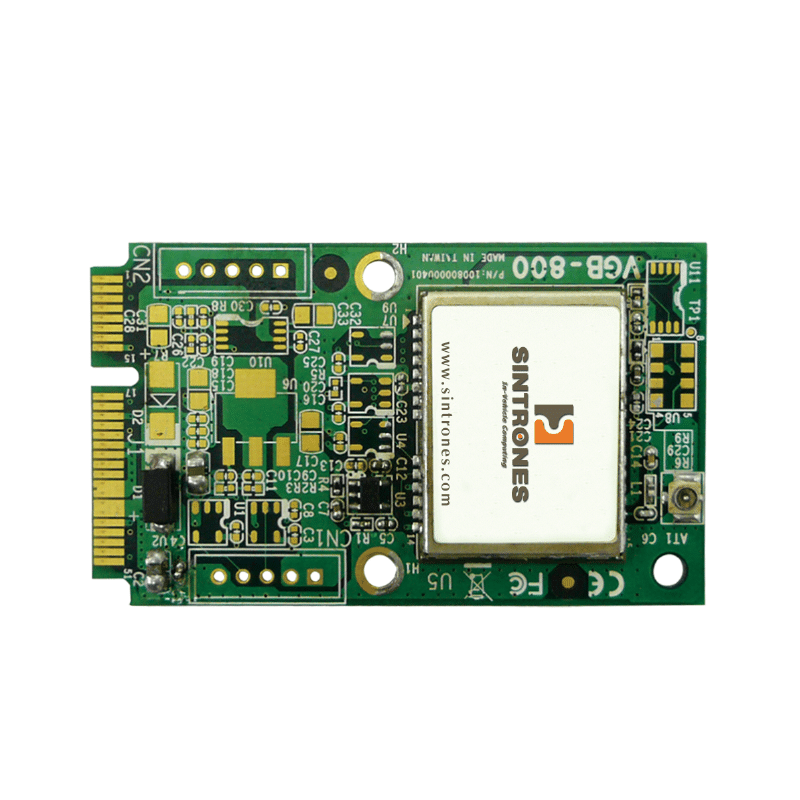

Embedded u-blox6 GPS Mini PCIe Card

Product Status: EOL

Inquiry Datasheet

Features

50-channel u-blox6 Engine with Over 2 Million Effective Correlators
-147dBm SuperSense® Acquisition and Tracking Sensitivity
AssistNow Online and Offline A-GPS Services,OMA SUPL Compliant
5 Hz Position Update Rate
Standard Mini PCIe V1.2 Full-Mini Card (USB 2.0 Interface)
Time To First Fix (TTFF) : <1 sec
Operating Temp. : -40ºC to 85ºC

Receiver Type

Chipset

LEA-6S

Frequency

GPS L1, C/A Code
GALILEO L1 Open Service (with upgrade)
SBAS : WAAS, EGNOS, MSAS, GAGAN

Channels

Supports 50 Channels

Sensitivity

Tracking & Navigation

-160dBm

Acquisition

-160dBm

Cold Start(Autonomous)

-147dBm

Time to First Fix (TTFF)

Cold Start

28 sec

Warm Start

28 sec

Hot Start

<1 sec

Aided Start

<1 sec

Accuracy

Horizontal Position

Autonomous : <2.5m CEP, SBAS : <2.0m CEP

Accuracy of Timepulse Signal

RMS 30ns

Max Navigation Update Rate

99% <60ns 5 Hz (Max.)

Dynamic Conditions

Velocity

<500 m/s (972 knots)

Acceleration

<= 4g

Output Message Format

GPS Protocol

NMEA, BUX Binary, GGA, GLL, GSA, GSV, RMC, VTG, TXT

Multipath Suppression

Intelligent Multipath detection and suppression

A-GPS

Support AssistNow Online and Offline, OMA SUPL Compliant

Environmental Characteristics

Operating Temp.

-40C to +85C

Storage Temp.

-40C to +85C

Peak Supply Current

Max=150mA

Max Performance

Acquisition =74mA

Eco Mode

Tracking = 43mA

Power Input

3.3V +-10% VDC input

Dimensions

51 x 30 (mm)

Ordering Information

Part Number

VDB-800S-000

Description

Embedded u-bloxx6 GPS Mini PCIe Card
