VBOX-3630RP-M12X

Embedded Fanless Pc for Fleet Management

Intel® 11th Gen Core™ i7-1185G7E CPU with 4 x GbE LAN On-Board Computer

Product Status: Available

Features

  • Intel® 11th Gen Core™ i7-1185G7E
  • Support Dual 5G/LTE, GPS, Wi-Fi / BT, and CAN bus
  • Isolated DC Input 24 ~ 110VDC with Power Management for Rolling Stock
  • 1x 2.5GbE + 3x GbE LAN Port with M12 Connectors
  • Support 4 Independent Display by 2x HDMI®, 1x DP, 1x DVI-D
  • Supports Optional Backup Battery Kit
  • E-Mark & EN50155 Certified

Introduction

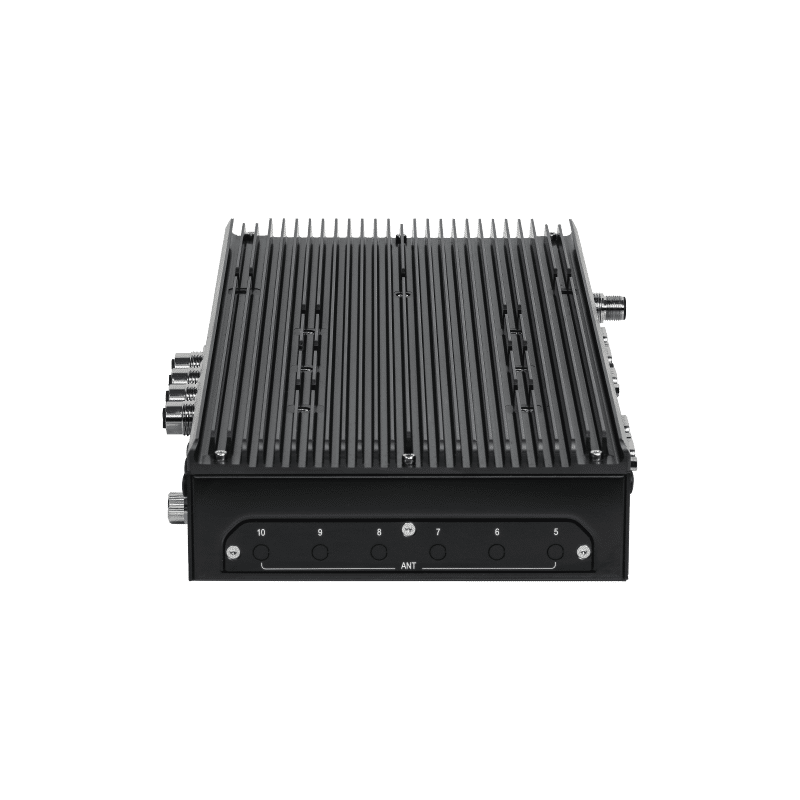

VBOX-3630R(P)-M12X is a fanless in-vehicle computer with 5G connectivity. It utilizes Intel® 11th Gen Core™ i7-1185G7E CPU up to 4.4GHz. It features an ultra-compact design measuring 365 x 165 x 55 mm, which can easily fit into restricted spaces. The system can select 5G, LTE, GPS, and Wi-Fi / Bluetooth as robust connectivity by M.2 modules. It is a building-in four independent display output, audio line-out, and microphone-in. It is the perfect solution for fleet management, in-vehicle digital signage, and mobile DVR. Furthermore, it features Smarter Vehicle Power Ignition and wireless remote control in various vehicles.VBOX-3630R-M12X can effectively support cars in extreme weather and operating conditions, such as snowplows, trucks, buses, taxis, and forklifts.

SYSTEM

Processor

11th Gen Intel® Core™ i7-1185G7E 1.8GHz up to 4.4GHz
11th Gen Intel® Core™ i5-1145G7E 1.5GHz up to 4.1GHz
11th Gen Intel® Core™ i3-115G4E 2.2GHz up to 3.9GHz Intel® Celeron® 6305E up to 1.8GHz

Chipset

N/A

Memory

2x DDR4-3200 SO-DIMM Up to 64GB

Watchdog

Watchdog Timer Support, offer 1 – 255 Step

TMP

2.0

Graphics

GRAPHIC ENGINE

Intel® Iris® Xe Graphics / Intel® UHD Graphics

HDMI®

2

DisplayPort

1

DVI

1 (Supports 4 Independent Display)
*Use only Single Link DVI Cables.

VGA

N/A

Resolution

Max Resolution (HDMI® 2.0b): 4096 x 2304@60Hz Max Resolution (DP): 4096 x 2304@60Hz

AUDIO

Audio Codec

N/A

Line-out

1

Mic-in

1

Line-in

Optional

ETHERNET

LAN Chipset

1 x Intel® i255-LM 2.5GbE Supports mGig Supports iAMT and PXE LAN Boot ROM 3 x Intel® 1210-AT Gigabit Ethernet

LAN

4 x RJ45 (1 x 2.5GbE, 3 x GbE)
Option: M12 connector and/or IEEE 802.3af/at PoE w/ Max. 60W power budget

I/O

Serial Port

4 X RS-232/422/485 (Auto Direction Control)

USB

2 x USB 3.2 Gen 2 (Type A) 2 x USB 2.0 (Type A)

DIO

6 x DI (5~60V)
4 x DO (5V/100mA)
(option: 2 x 12V/1A output)

AIO

N/A

SIM Socket

2 x SIM Card Sockets Supported Onboard with Eject

Antenna

7 x Pre-cut Holes for External SMA Antenna

STORAGE

SSD/HDD

2 x 2.5″ Drive Bay for SATA Type

mPCIe

N/A

mSATA

N/A

M.2

1 x M.2 2280 Key M for NVMe SSD*
*Additional thermal heatsink is required. Please contact our sales representatives for a suitable type.

EXPASION

Mini PCI Express

1 x Combo Port (1 x M.2 3042/52 Key B or 1 x mPCIe Full Card) 1 x mPCIe Full Size (USB function only)

M.2

1 x M.2 2230 Key A-E

POWER

Power Input

Isolated DC Input 24-110VDC for Rolling Stock

Power Protection

Automatics Recovery Short Circuit Protection

Smart Ignition

Power Ignition for Vehicle

Power-off Delay Control

Power off Delay Time Setting by Software

Backup Battery Solution

Patented Battery Kit

MECHNICAL

Dimension

365(L) x 165(W) x 55(H) mm

Weight

3800g (bare-bone)

Construction

Aluminum Alloy

Mounting

N/A

ENVIRNOMENT

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-40°C ~ 70°C, ambient w/ 0.6m/s airflow
Patent No. M448011-Thermal Cooling

Storage Temp.

-40°C ~ 85°C

Vibration & Shock

N/A

IP Rating

N/A

CERTIFICATION

Certification

CE, FCC Class A, E13, EN50155. EN45545-2 (R25)

ORDERING INFORMATION

Model No.

VBOX-3630x-yyyy-zz (x=P=w/PoE, yyyy= M12X=M12 x-code for LAN ports, zz=i7=i7-1185G7E, zz=i5=i5-1145G7E, zz=i3=i3-1115G4E, zz=C1=6305E)

Description

Intel® 11th Gen Core i7-1185G7E CPU with 4 x GbE LAN On-Board Computer

State of Origin

Made in Taiwan
