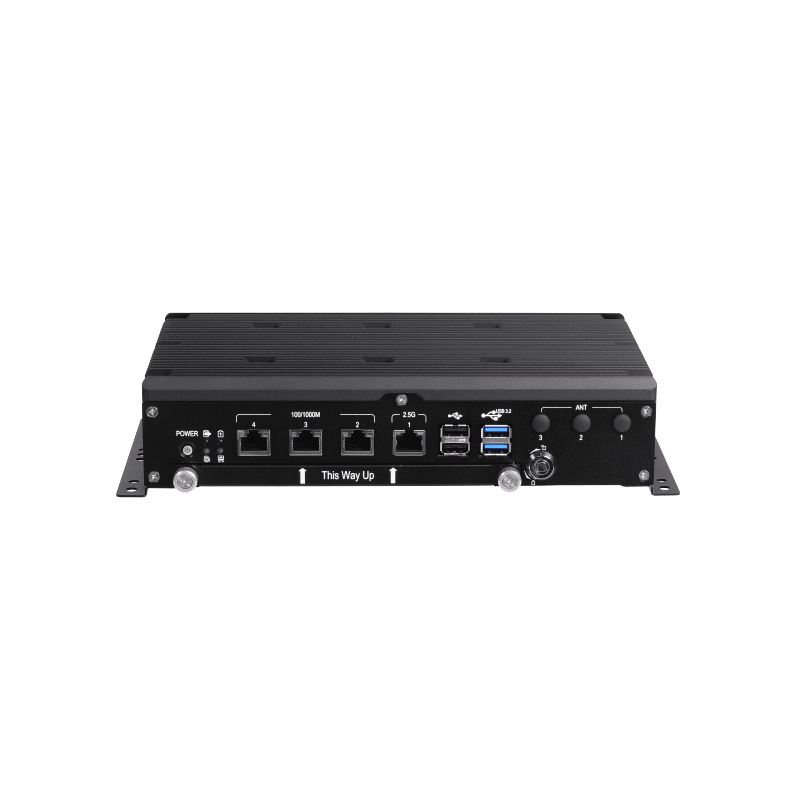

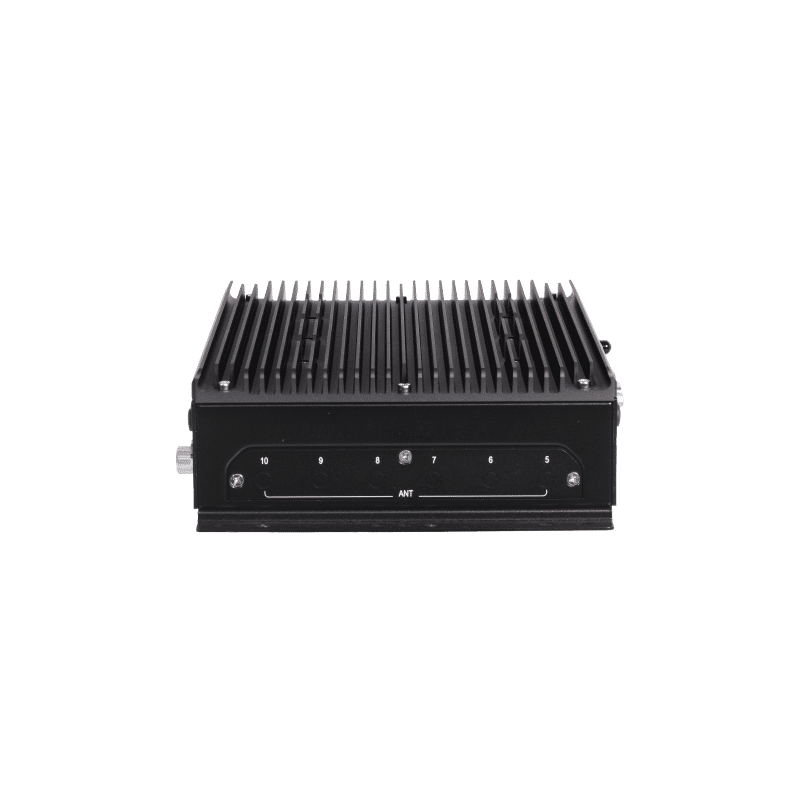

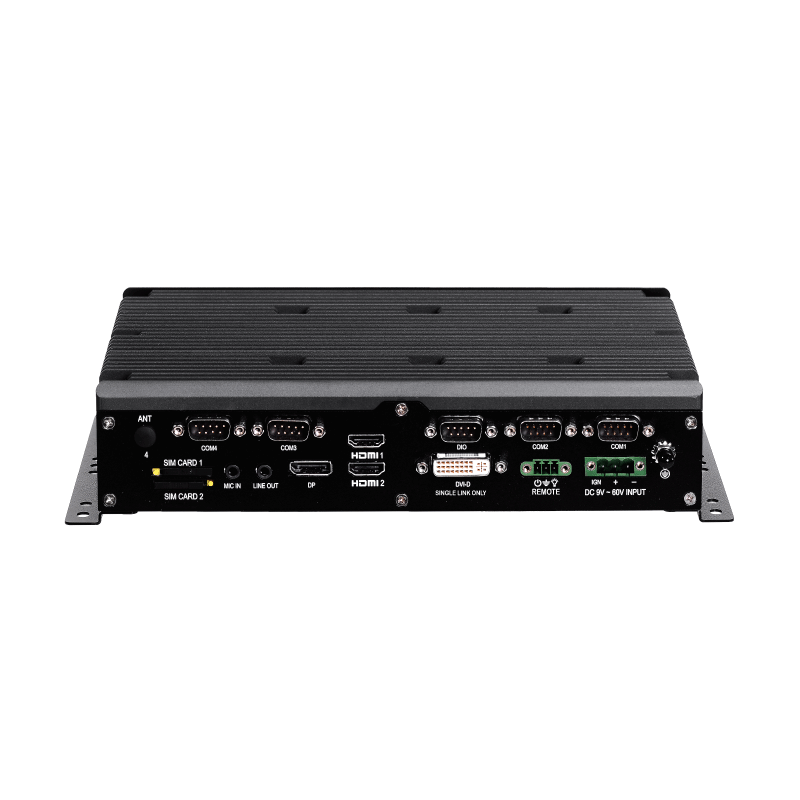

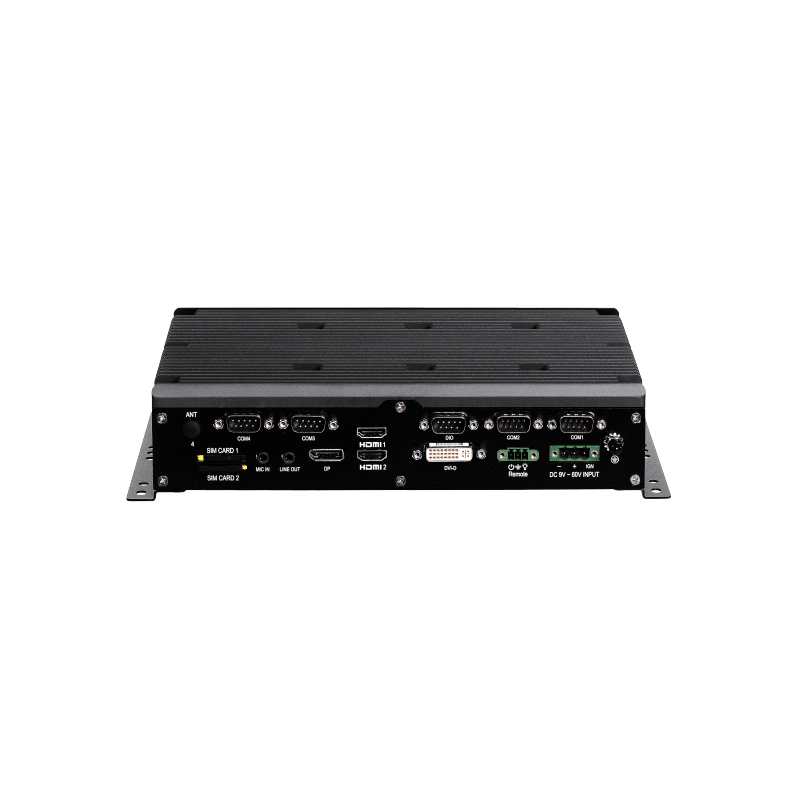

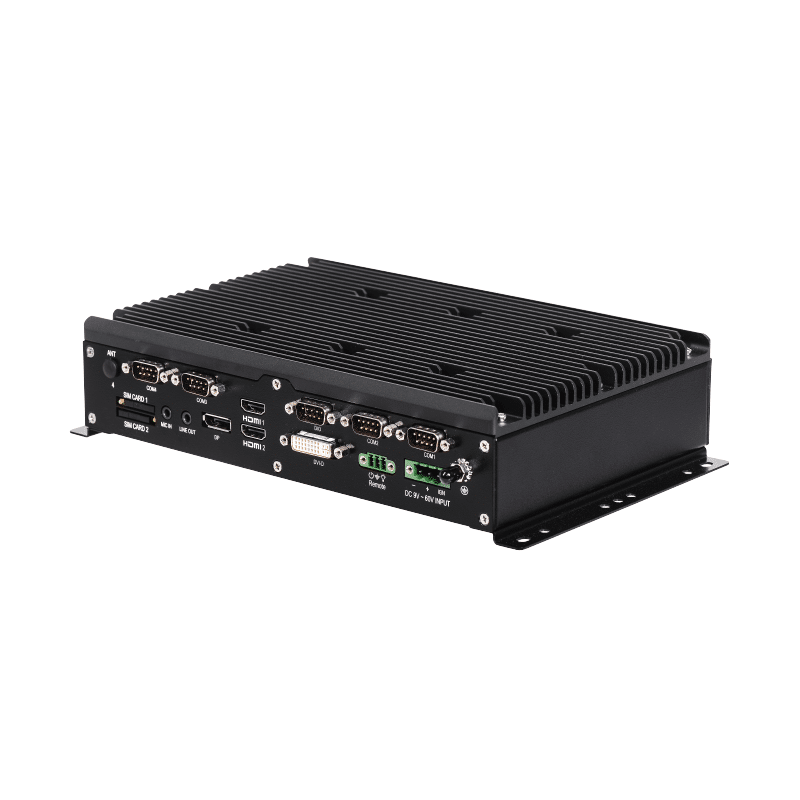

VBOX-3630P

In-Vehicle Computer for On-board Telematics with PoE

11th Gen Intel® Core™ i7-1185G7E CPU with 4 x GbE LAN On-Board Computer

Product Status: Available

Features

  • 11th Gen Intel® Core™ i7-1185G7E
  • Supports Dual 5G / LTE, GPS, Wi-Fi / BT, and CAN Bus
  • Wide Range Input 9V – 60VDC with Ignition Control for EV Installations
  • 1 x 2.5GbE + 3 x GbE LAN Port with M12X Connectors
  • Supports 4 Independent Display Outputs: 2 x HDMI®, 1 x DP, 1 x DVI-D
  • Supports Optional Battery Backup Kit
  • E-Mark & EN50155 Certified

Introduction

VBOX-3630 is a fanless in-vehicle computer with 5G connectivity. It utilizes Intel® 11th Gen Core™ i7-1185G7E CPU up to 4.4GHz. VBOX-3630 features an ultra-compact design measuring 250 x 165 x 55mm, which can easily fit into restricted spaces. The system can select 5G, LTE, GPS, and Wi-Fi / Bluetooth as robust connectivity by M.2 modules. It is a building-in four independent display output, audio line-out, and microphone-in. It is the perfect solution for fleet management, in-vehicle digital signage, and mobile DVR. Furthermore, it features Smarter Vehicle Power Ignition and wireless remote control in various vehicles.VBOX-3630 can effectively support cars in extreme weather and operating conditions, such as snowplows, trucks, buses, taxis, and forklifts.

SYSTEM

Processor

11th Gen Intel® Core™ i7-1185G7E 1.8GHz up to 4.4GHz
11th Gen Intel® Core™ i5-1145G7E 1.5GHz up to 4.1GHz
11th Gen Intel® Core™ i3-1115G4E 2.2GHz up to 3.9GHz
Intel® Celeron® 6305E up to 1.8GHz

Chipset

N/A

Memory

2 x DDR4-3200 SO-DIMM Up to 64GB

Watchdog

Watchdog Timer Support, Offer 1 – 255 Step

TPM

2.0

GRAPHICS

Graphics Engine

Intel® Iris® Xe Graphics / Intel® UHD Graphics

HDMI®

2

DisplayPort

1

DVI

1 (Supports 4 Independent Display)
*Use only Single Link DVI Cables.

VGA

N/A

Resolution

Max Resolution (HDMI® 2.0b): 4096 x 2304@60Hz
Max Resolution (DP): 4096 x 2304@60Hz

AUDIO

Audio Codec

N/A

Line-out

1

Mic-in

1

Line-in

Optional

ETHERNET

LAN Chipset

1 x Intel® 2.5GbE Supports 10/100/1000/2500BASE-T Supports vPro and PXE LAN Boot ROM (i5/i7 SKU)
3 x Intel® Gigabit Ethernet

LAN

4 x RJ45 (1 x 2.5GbE, 3 x GbE)

PoE

Optional: M12 connectors and/or IEEE 802.3af/at PoE w/ Max. 60W power budget

I/O

Serial Port

4 X RS-232/422/485
(Auto Direction Control)
*3 Ports for M12 Model

USB Port

2 x USB 3.2 Gen 2 (Type A)
2 x USB 2.0 (Type A)

DIO

6 x DI (5~60V) and 4 x DO (5V/100mA)
(option: 2 x 12V/1A output)

AIO

N/A

SIM Socket

2 x SIM Card Sockets Supported Onboard with Eject

Antenna

7 x Pre-cut Holes for External SMA Antenna

STORAGE

SSD/HDD

2 x 2.5″ Drive Bay for SATA Type

mPCIe

N/A

mSATA

N/A

M.2

1 x M.2 2280 Key M for NVMe SSD*
*Additional thermal heatsink is required. Please contact our sales representatives for a suitable type.

EXPANSION

Mini PCI Express

1 x Combo Port (1 x M.2 3042/52 Key B or 1 x mPCIe Full Card)

M.2

1 x M.2 2230 Key A-E, 1 x mPCIe Full Size (USB function only)

POWER

Power Input

9~60 VDC Input (24 ~ 60 VDC Input for PoE Connections)

Power Protection

Automatics Recovery Short Circuit Protection

Smart Ignition

Power Ignition for Vehicle

Power-off Delay Control

Power off Delay Time Setting by Software

Backup Battery Solution

Patented Battery Kit

MECHANICAL

Dimension

250(L) x 165(W) x 55(H) mm

Weight

2500g (bare-bone)

Construction

Aluminum Alloy

Mounting

N/A

ENVIRONMENT

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-40 ~ 70°C, ambient w/ 0.6m/s airflow
Patent No. M448011-Thermal Cooling

Storage Temp.

-40 ~ 85°C

Vibration & Shock

N/A

IP Rating

N/A

CERTIFICATION

Certification

CE, FCC Class A, E13, EN50155. EN45545-2 (R25)

OPERATIONAL SYSTEM

Windows

Windows 10 IoT LTSC (64-bit)
Windows 11 IoT (64-bit)

Linux

Ubuntu 20.04 (64-bit), 22.04 (64-bit)

ORDERING INFORMATION

Model No.

VBOX-3630x-yyyy-zz (x=P=w/PoE, yyyy= M12X=M12 x-code for LAN ports, zz=i7=i7-1185G7E, zz=i5=i5-1145G7E, zz=i3=i3-1115G4E, zz=C1=6305E)

Description

Intel® 11th Gen Core i7-1185G7E CPU with 4 x GbE LAN On-Board Computer

State of Origin

Made in Taiwan

Optional Accessories

DRAM

DDR4 SO-DIMM 3200 8GB~32GB (-40~85°C) x 2

SSD

2.5 inch SATA SSD TLC 64GB~1TB (-40~85°C)

M.2 2280 NVMe 256GB~1TB TLC (-40~85°C)

Wi-Fi Module

M.2 2230 Wi-Fi 6E + Bluetooth 5.2 Module

WWAN Modem

M.2 3042/52 5G/LTE Modem

GPS

mPCle GPS Module

CAN Bus

mPCle CAN Bus Module

Battery Backup Kit

BAT-3630 Kit, 2,300mAh 3S1P Battery Kit (0~60°C for Discharge)
