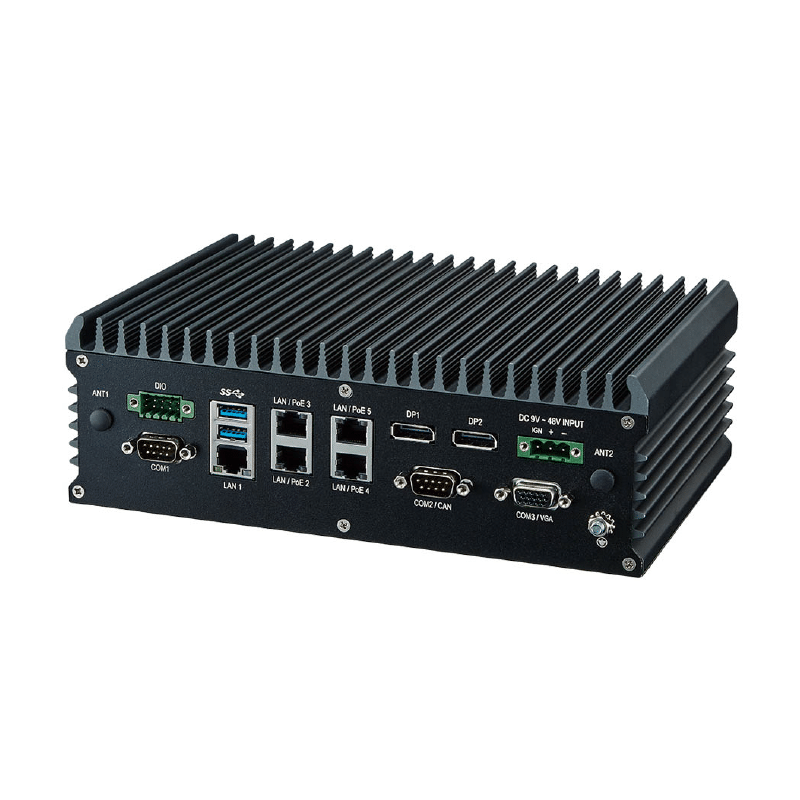

VBOX-3210 (EOL)

AMD Merlin Falcon Enbedded Platform RX-421BD/RX-216GD APU with 2xDP / 2xCOM / 5xGbE / 4xPOE / 2xUSB3.0 / DC Input 9~48V In-Vehicle Computer

Product Status: EOL

Features

AMD Merlin Falcon RX-421BD/RX-216GD
Wireless support LTE, WLAN, GPS, BT (Option)
5 x GbE w/optional 4 x POE 802.3at
Input 9-48V with lgnition for Variety Vehicle
3 x Mini PCIe card & 1 x M.2 for extension
2 x DP, 1 x VGA

SYSTEM

Processor

AMD RX-421BD Quad Core 2.1GHz up to 3.4 GHz*
AMD RX-216GD Dual Core 1.6GHz up to 3.0 GHz (Optional GX-224IJ, GX-215JJ)
*Config to 15W

Memory

2 x SO-DIMM DDR4 up to 32GB (only 1 slot for GX series)

Watchdog

1 ~ 255 level reset

ATA

2 x Serial ATA GEN 3.0

GRAPHICS

Graphics Engine

AMD RadeonTM graphicsDisplayPort

DisplayPort

2

VGA

1 (only for RX series)

AUDIO

Line-out

1

Mic-in

1

Line-in

1

ETHERNET

LAN

5 x RJ45 Ports GbE (Optinal for 4 x POE 802.3at/af*)

I/O

Serial Port

2 x RS232/422/485 (option additional 2 x RS232)

USB

2 x USB 3.0 ports and 2 x USB2.0 Ports

GPIO

4 In and 4 Out

SIM Socket

2 x SIM Card Sockets Supported Onboard with eject
*When Power Input ≧ 24V, total PoE outputs is 100W max.
When Power Input < 24V, total PoE output is 60W max.

Antenna

6 x SMA-type External Antenna Connectors

STORAGE

SSD/HDD

1 x 2.5” Drive Bay for SATA Type Hard Disk Drive/SSD



Cfast slot

1 x Cfast slot

EXPANSION

M.2

1 x M.2 A-E key 2230 (only for RX series)

Mini-card slots

3

POWER

Power Input

9V – 48V DC Power Input

Smart Ignition

Vehicle Power Ignition for Variety Vehicle

Power-off Delay Control

Power on/off Delay Time Setting by Software

Backup Battery Solution

Internal Battery backup Kit for 10 Mins Operating (Optional)

MECHANICAL

Dimensions

240 x 161 x 85 mm

Weight

1405g

Construction

Aluminum Alloy

Mounting

Wall-mount, Din Rail Mounting kit (Optional Internal Battery backup Kit)

ENVIRONMENT

Relative Humidity

5 ~ 95% (non-condensing)

Operating Temp.

-40 ~ 70C (w/SSD), ambient w/ 0.6m/s airflow

Storage Temp.

-40 ~ 85C

Vibration & Shock

Vibration (random): IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis with SSD

Vibration Operating:  MIL-STD-810G, Method 514.6, Procedure I, Category 4

Shock: Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD



CERTIFICATION

Certification

CE, FCC Class A, E13

Patent

Patent No. : M447854 – Build-in Battery

OPERATIONAL SYSTEM

Windows

WES 7 64bit, Win 10 LTSB 1607

Linux

Ubuntu 16.04 64bit
