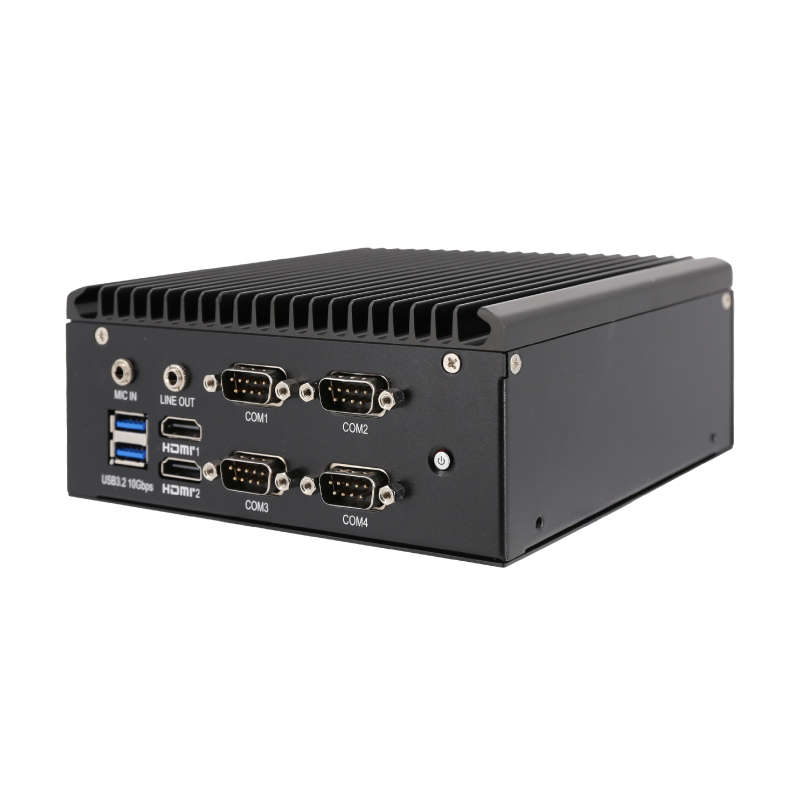

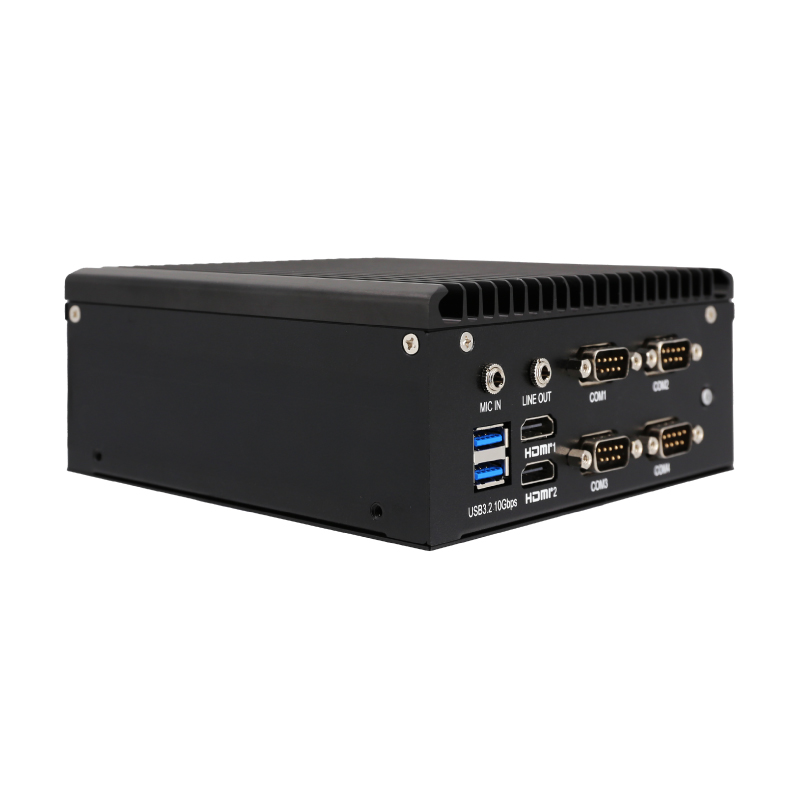

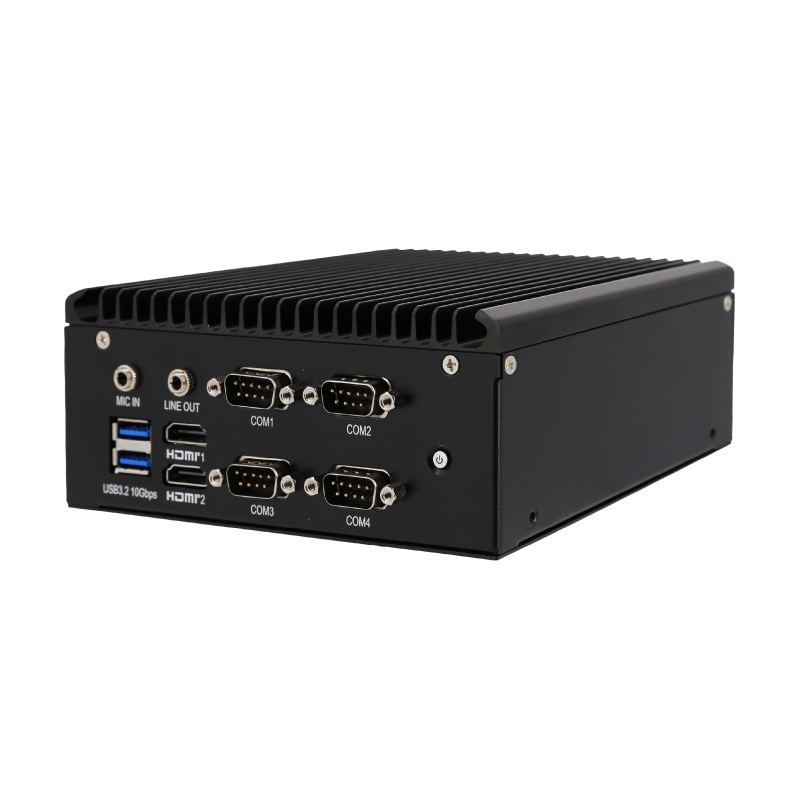

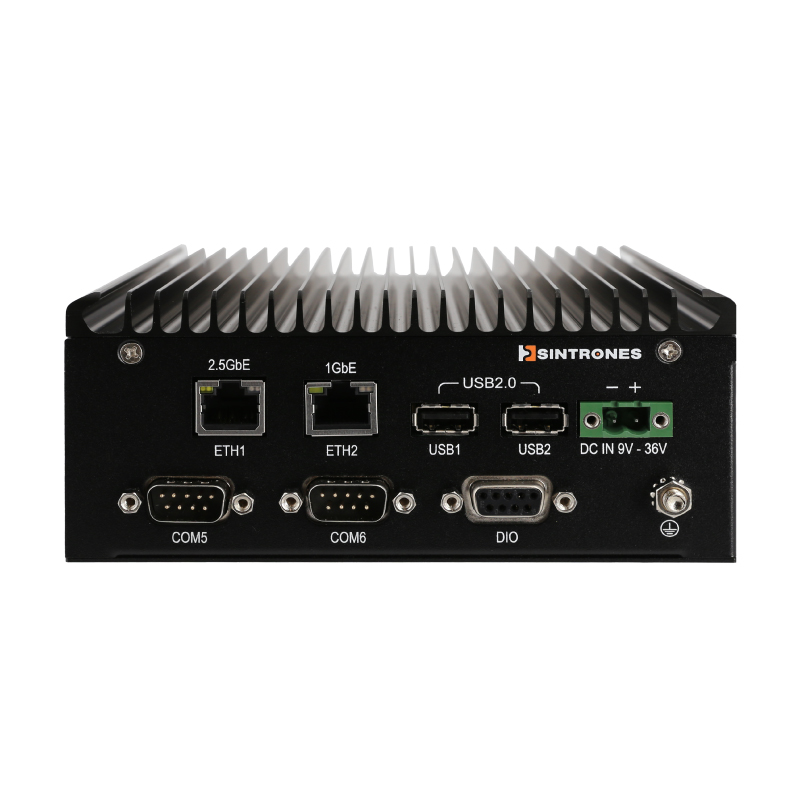

Rugged Industrial Computer
SBOX-2624(P)

AMD Ryzen™ Embedded R2312 w/ 2x HDMI® / 1 x 2.5GbE, 1 x GbE / 6 x COM / DC-IN 9-36V Embedded Computer

• AMD Ryzen™ Embedded R2312 2C/4T Processor
• 1 x 2.5GbE, 1 x GbE(Optional 4 x GbE w/ PoE)
• 2 x HDMI® Supports Resolution Specified in HDMI 2.0b
• 6 x COM
• 1 x M.2 2280 Key M Supports NVMe and SATA
• 1 x M.2 3042/52 Key B Supports USB 3.2
• 1 x M.2 2230 Key E Supports PCIe and USB2.0
• 9V – 36V DC Input

Product Status: Available
Conformité Européenne FCC Certification EN 50155 Wide-voltage Wide-temperature Fanless
Inquiry Datasheet

Compact Fanless Performance for Industrial Edge Computing

The SBOX-2624P is built around the AMD Ryzen™ Embedded R2312 processor, delivering stable, low-power computing performance for continuous, unattended industrial operation. Paired with DDR4-2400 memory up to 32GB (ECC support with ECC DRAM), the system ensures reliable data integrity for long-duration workloads at the edge. Dual HDMI® outputs supporting 4K @60Hz as specified in HDMI 2.0b allow the system to drive multiple displays for control room monitoring, machine vision review, or on-site dashboard applications. A dedicated TPM 2.0 security chip further safeguards system integrity and protects sensitive data against tampering, meeting the growing security requirements of mission-critical deployments. With its fanless aluminum alloy construction, the SBOX-2624P eliminates moving parts that are prone to failure in dusty or high-vibration environments, ensuring consistent performance throughout its service life.

PoE-Ready Connectivity for Simplified Industrial Automation

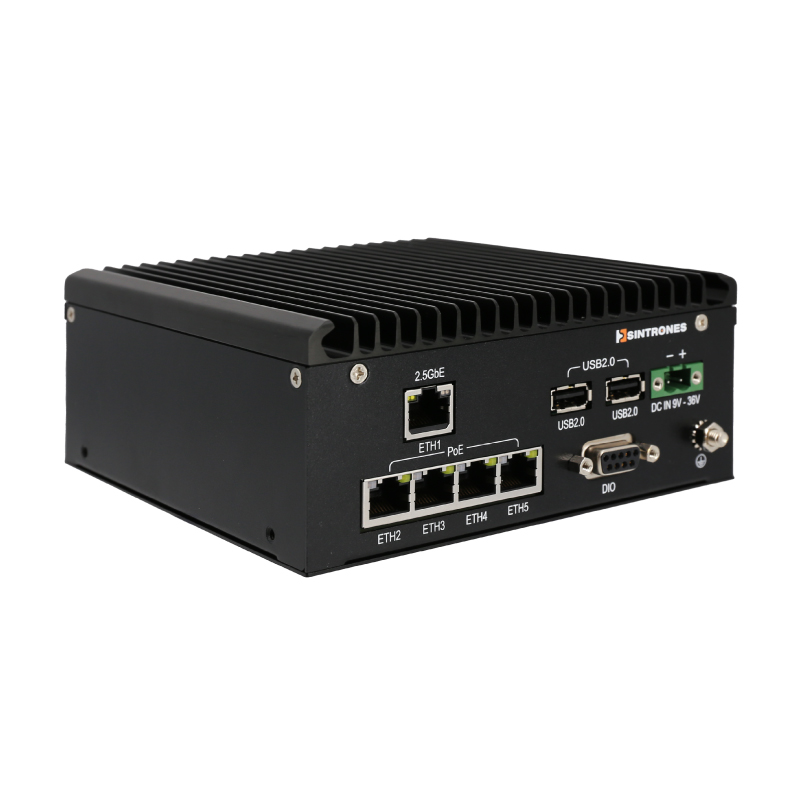

Engineered for industrial automation and edge gateway applications, the SBOX-2624P features 1 x 2.5GbE and 4 x GbE ports via a Marvell Ethernet switch, with 4 ports supporting PoE (PSE Class 3, 15W per port, 60W total power budget). This allows the system to power and connect IP cameras, wireless APs, and other PoE edge devices through a single cable, significantly simplifying field wiring. To support legacy industrial equipment, the system also offers 4 x COM ports (2 x configurable RS-232/422/485 and 2 x RS-232), along with 4 x DI / 4 x DO for real-time I/O control. Housed in a compact aluminum alloy, wall-mountable chassis and rated for -30°C to 60°C operation, the SBOX-2624P is designed to withstand the demanding conditions of factory floors, control cabinets, and outdoor enclosures.

Technical FAQ

Q1: What makes the SBOX-2624P suitable for industrial automation deployments?
A: The SBOX-2624P combines PoE-powered Ethernet connectivity, multiple configurable COM ports, and digital I/O in a compact fanless design, allowing it to serve as a central edge gateway for PLCs, sensors, IP cameras, and wireless access points without additional power adapters or expansion modules.

Q2: How does PoE support on the SBOX-2624P simplify field installation?
A: With 4 x GbE ports supporting PoE (PSE Class 3, 15W per port), the SBOX-2624P can directly power connected edge devices such as IP cameras and APs through a single Ethernet cable, reducing cabling complexity and installation cost in the field.

Q3: Can the SBOX-2624P operate reliably in harsh industrial environments?
A: Yes. With an aluminum alloy fanless chassis, wide 9-36VDC input with over voltage and reverse polarity protection, and an operating temperature range of -30°C to 60°C, the SBOX-2624P is built to perform reliably in factory automation and unattended edge environments.

Q4: What storage and expansion options does the SBOX-2624P support?
A: The SBOX-2624P offers 1 x M.2 2280 Key M slot supporting NVMe or SATA SSDs for primary storage, along with an M.2 2230 Key A+E slot for Wi-Fi 6 + Bluetooth 5.2, and an M.2 3042/52 Key B slot for optional 5G/LTE WWAN with Nano SIM support, giving system integrators flexibility to configure wireless connectivity for remote or mobile deployments.

Q5: How does the SBOX-2624P handle mixed legacy and modern peripheral connections?
A: The system pairs 4 x COM ports (2 x configurable RS-232/422/485 and 2 x RS-232) for legacy industrial devices such as PLCs and sensors with 2 x USB 3.2 Gen 2 (10Gbps) and 2 x USB 2.0 ports for high-speed storage or standard peripherals, allowing a single unit to bridge older field equipment with modern high-bandwidth devices.
