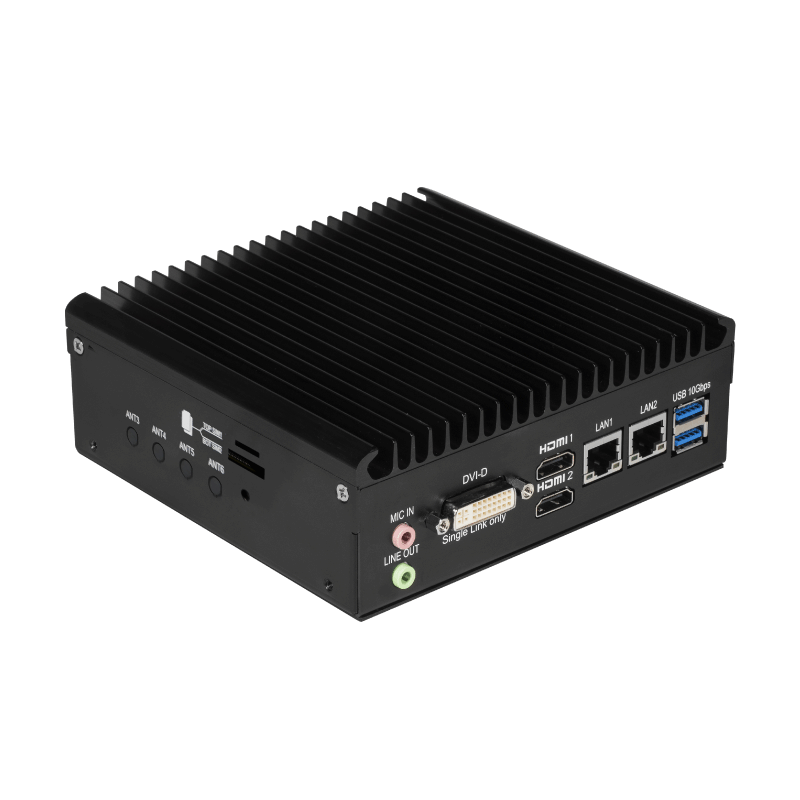

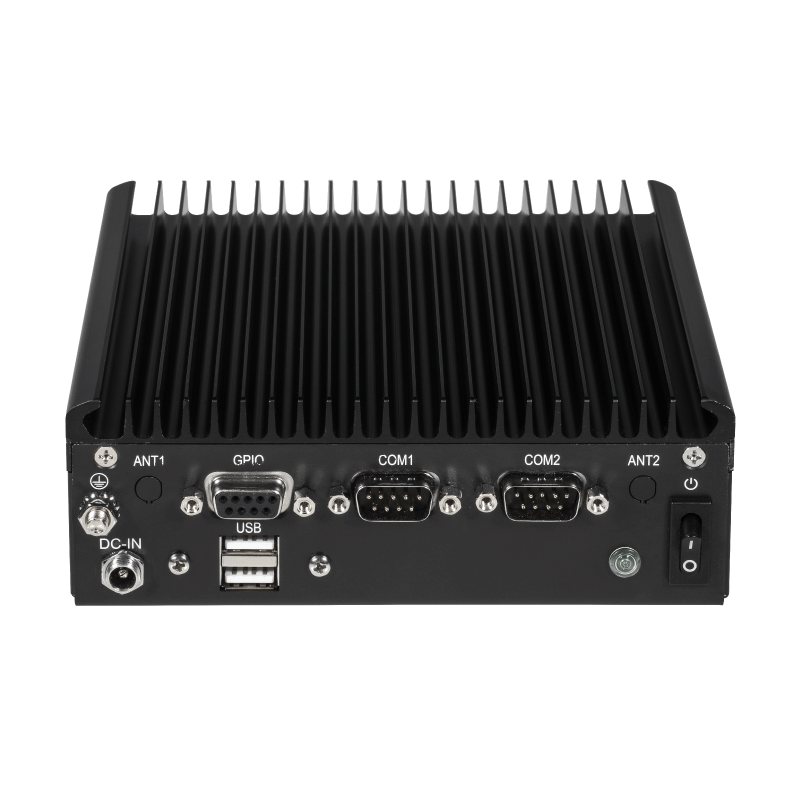

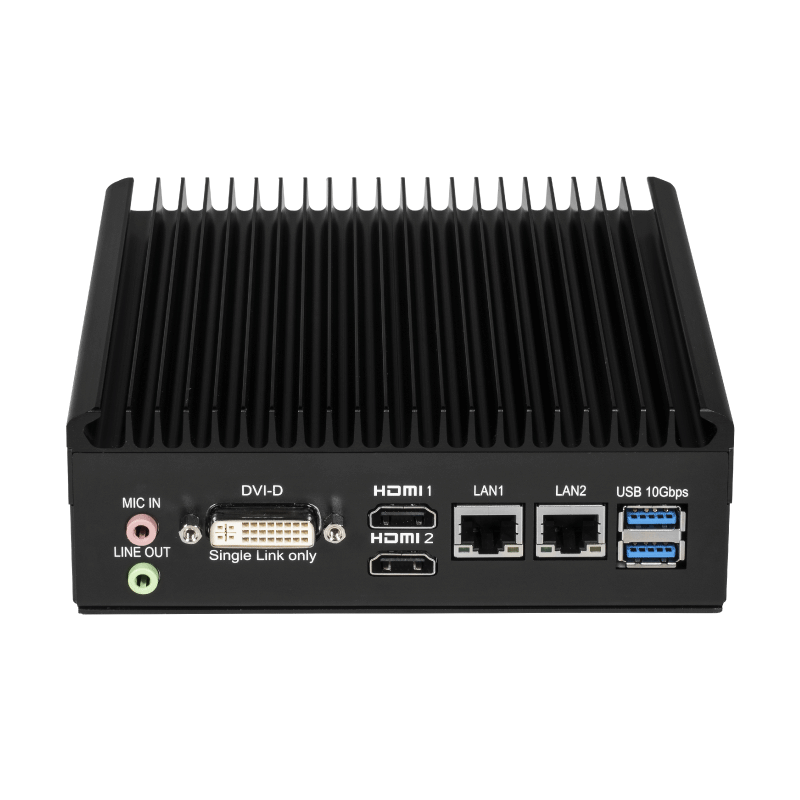

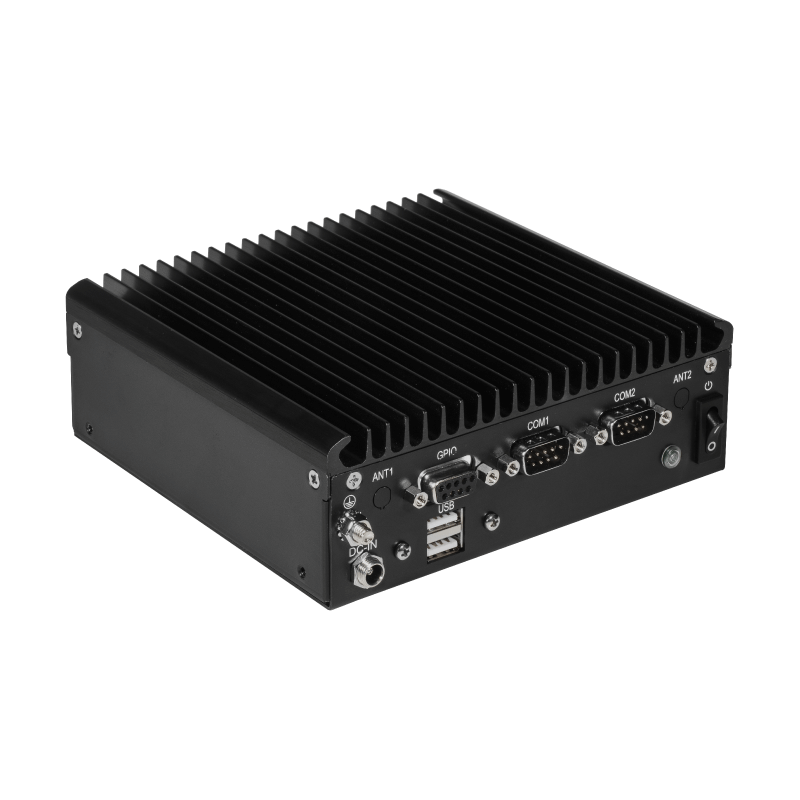

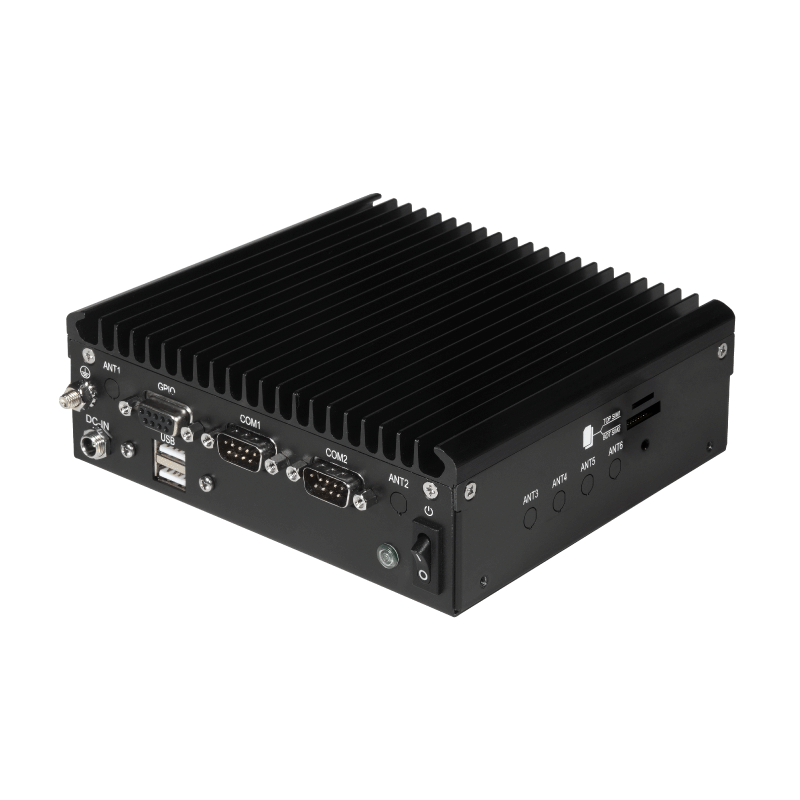

SBOX-2603-R2312

AMD Ryzen™ Embedded Computer

AMD Ryzen™ Ultra Compact & Cost-effective Computer

Product Status: Available
Inquiry Datasheet
Features
  • AMD Ryzen™ Embedded R2312 2C/4T Processor
  • Dual HDMI® Supports Resolution Specified in HDMI 2.0b
  • 1 x M.2 2280 Key M Supports NVMe or SATA SSD
  • 1 x M.2 3042/52 Key B Supports USB 3.2 WWAN with Dual SIM
  • 1 x M.2 2230 Key E Supports PCIe and USB2.0 Wi-Fi/Bluetooth

Performance Leap, Connectivity Upgrade, Bringing New Heights to Embedded Applications

AMD Ryzen™ Embedded R2000 Series Processors with AMD Radeon™ Graphics

The AMD Ryzen™ Embedded R2000 Series SoCs boost the Ryzen™ Embedded mid-range processor portfolio to new heights by bringing together the “Zen+” x86 core architecture with high-performance AMD Radeon™ graphics. Compared to the legacy R1000 Series, the R2000 Series provides up to 2X the CPU core count1, Radeon™ graphics supporting up to 4 independent 4K displays and up to 2X the I/O connectivity2 targeting Industrial and Robotics Systems, Machine Vision, IoT, Thin Clients and more.

With thermal design power (TDP) spanning from 12W to 54W, AMD Ryzen™ Embedded R2000 Series SoCs provide thermal agility for compact system designs to help streamline design efficiencies and BOM costs. They provide pin-to-pin package compatibility and a common software foundation with legacy AMD Ryzen™ Embedded R1000 and V1000 Series SoCs while delivering significant performance and connectivity boosts from previous R-Series families.

SYSTEM
Processor

AMD Ryzen™ Embedded R2312 2C/4T Processor

Graphics

CPU Built-in Graphics AMD Radeon™ Graphics

Memory

1 x SO-DIMM DDR4-2400 up to 32GB (ECC Support with ECC DRAM)

Security

TPM 2.0

Watchdog

System reset 1 ~ 255 sec. or min. settings in BIOS

INTERFACE
Video
  • 1 x DVI-D (Single link with custom pin define)
  • 2 x HDMI® supports 4K@60Hz as specified in HDMI 2.0b
Audio

1 x Line-out and 1 x Mic-in

Ethernet

2 x I210-AT GbE RJ45 port

USB

• 2 x USB 3.2 Gen 2 (10Gbps)
• 2 x USB 2.0

GPIO

1 x GPIO port supporting 4 x GPI and 4 x GPO (5VDC TTL)

Serial Port

2 x RS-232/422/485

Internal Expansion
M.2
  • 1 x M.2 3042/52 Key B supports USB 3.2 WWAN w/ Dual SIM
  • 1 x M.2 2230 Key E supports PCIe and USB2.0 Wi-Fi/BT
STORAGE
Type
  • 1 x M.2 2280 Key M supports NVMe or SATA SSD
  • 1 x 2.5” SATA SSD
POWER
Power Input

DC 12V only via DC Jack

SOFTWARE
Operating System
  • Windows 10 IoT Enterprise 64bit LTSC
  • Windows 11 IoT Enterprise LTSC
  • Ubuntu 20.04 LTS 64bit
ENVIRONMENTAL
Operating Temp.

-30 ~ 60°C, with SSD, ambient w/ air flow 0.6m/s (for barebone system)

Storage Temp.

-40 ~ 85°C

Relative Humidity

10% RH ~ 90% RH (non-condensing)

Certification / Standard

CE, FCC Class A, UKCA

MECHANICAL
Construction

Aluminum Alloy

Mounting Method

Wall-mounting

Weight

1.3Kg

Dimensions

176 (L) x 140 (W) x 52 (H) mm

ORDERING INFORMATION
Model Number

SBOX-2603-R2312

Description

AMD Ryzen™ Embedded R2312 w/ 1x DVI-D / 2x HDMI® / 2x GbE / 2x COM / DC 12V Embedded Computer

State of Origin

Made in Taiwan

OPTIONAL ACCESSORIES
Memory

DDR4-2400/2666/3200 SO-DIMM, 8GB~32GB, -40~85°C (ECC Option Available)

SSD

M.2 2280 Key B-M NVMe TLC -40~85°C 512GB~2TB

SSD

M.2 2280 Key B-M SATA TLC -40~85°C 128GB~2TB

SSD

2.5 inch SATA TLC -40~85°C 128GB~2TB

Wi-Fi

M.2 2230 Key E 802.11 a/b/g/n/ac, Wi-Fi 6E

WWAN

M.2 3042 Key B LTE (USB) / 3052 Key B 5G (USB) with Thermal Kit

Power Adapter

60W 100-240VAC to 12VDC Power Adapter
