Edge AI Rugged Computer

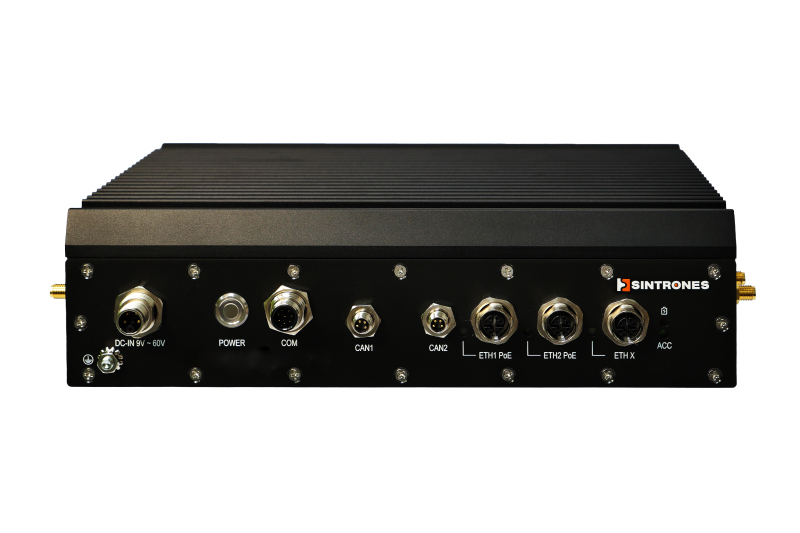

IBOX-650P-IP66

NVIDIA® Jetson AGX Orin™ Edge AI Fanless Computer

  • NVIDIA® Jetson AGX Orin™ SoM with 2048 CUDA Cores
  • IP66 Design (Waterproof and Dustproof) for Harsh Environment
  • 1 x 10 GbE, 2 GbE with PoE via Phoenix Contact® M12 IP67 Connectors
  • 2 x CAN FD
  • 2 x RS-232/422/485*, 4 x DI/4 x DO*
  • Supporting 4 x GMSL-2 Cameras (via FAKRA Connectors)
  • 9 ~ 60VDC Input with Built-in Smart Ignition Power Management
  • -25 ~ 70°C Operating with Fanless Design
  • Patented Design of Emergency Backup Battery*

*This is a customized specification. If you have any needs, please contact our sales representative.

Status: Available
Conformité Européenne FCC Certification E-Mark EN 50155 Wide voltage Wide temperature Fanless IP66 Design (Waterproof and Dustproof)
Inquiry Datasheet
IBOX 650P IP66 NVIDIA® Jetson AGX Orin™ Edge AI Fanless Computer

Unmatched AI Intelligence for Harsh Environments

Empowered by the NVIDIA® Jetson AGX Orin™ module, the IBOX-650P-IP66 delivers up to 275 TOPS of AI performance, enabling real-time processing for the most complex edge workloads. Its fanless thermal design and robust IP66-rated enclosure ensure stable operation in extreme temperatures ranging from -25°C to 70°C, providing a reliable computing foundation where standard systems fail. This high-performance architecture allows for the simultaneous execution of multiple AI models, ensuring that high-speed data analytics and environmental perception remain uninterrupted in the field.

IBOX-650P-IP66
Seamless Integration For Autonomous And Railway Innovation

Mission-Critical Connectivity for Railway and Defense

Beyond pure power, the IBOX-650P-IP66 is engineered for seamless field integration. It features 10GbE networking and 4x GMSL-2 FAKRA connectors for advanced multi-sensor AI vision, fully compliant with EN50155 and MIL-STD-810H standards. Supported by a wide-range 9-60V DC input, intelligent ignition control, and a patented UPS backup battery, it ensures zero downtime and safeguards critical data during tactical operations or transit missions. These versatile interfaces, combined with optional 5G and GNSS expansions, empower operators to maintain real-time situational awareness and secure communication in the most isolated and demanding terrains.

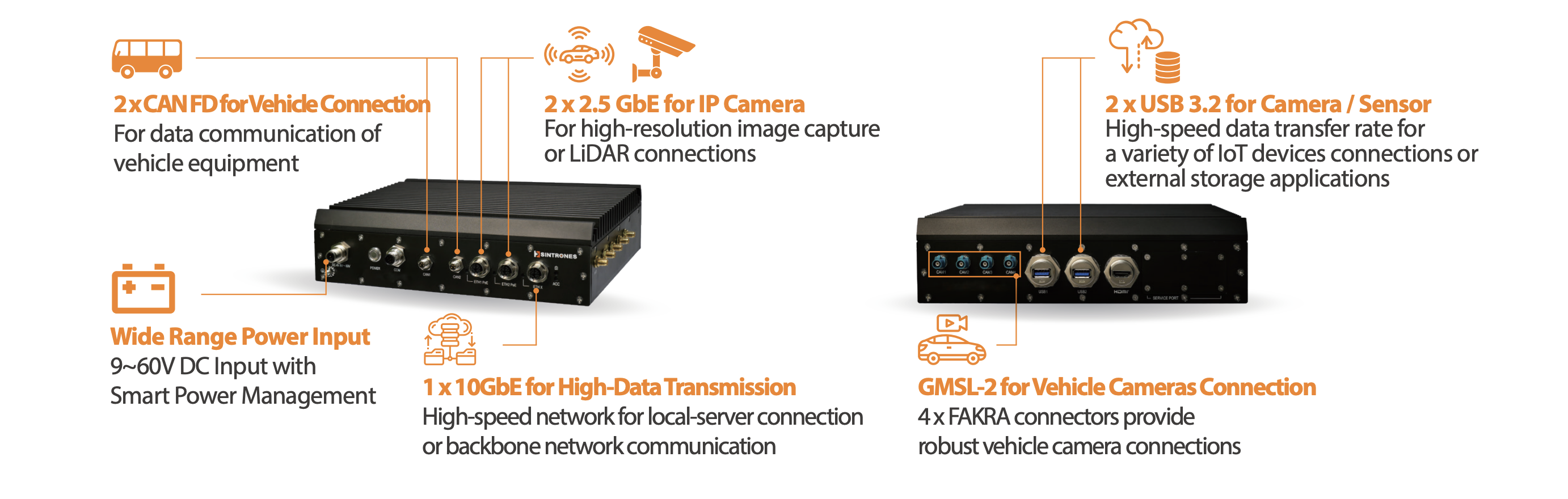

IBOX 650P IP66 Edge AI Application

Technical FAQ

Q1: What are the advantages of using Phoenix Contact® M12 connectors for this IP66 system?

A: The Phoenix Contact® M12 connectors (X-coded for Ethernet, K-coded for Power) provide a secure, screw-locking interface that prevents accidental cable detachment caused by intense vibrations or shocks. This ensures a reliable IP66-rated waterproof and dustproof connection, which is essential for outdoor deployments and rolling stock applications.

Q2: Does the IBOX-650P-IP66 support power management for vehicle-based installations?

A: Yes. The system features a wide-range 9~60V DC input and built-in Smart Ignition Power Management. This allows the device to detect the vehicle’s ignition status to manage startup and shutdown delays, protecting the system from power surges and ensuring graceful OS shutdowns when the vehicle engine is turned off.

Q3: How does the system handle potential data loss during sudden power interruptions?

A: The IBOX-650P-IP66 includes a patented design for an Emergency Backup Battery (UPS). In the event of an unexpected power loss, this internal battery provides temporary power, allowing the system to save critical data and execute a safe shutdown procedure to prevent file system corruption.

Q4: Can I connect high-resolution automotive cameras to this device?

A: Yes. The system is equipped with 4x FAKRA-Z connectors specifically designed for GMSL-2 cameras. This interface supports high-bandwidth, low-latency video transmission, making it ideal for AI-driven vision tasks such as autonomous driving, real-time monitoring, and predictive maintenance.

Q5: Which operating systems and AI SDKs are supported?

A: The IBOX-650P-IP66 is optimized for NVIDIA® JetPack 6.2 or above, which includes Jetson Linux and the necessary development tools (CUDA, cuDNN, TensorRT) to fully leverage the 275 TOPS AI performance of the Jetson AGX Orin™ module.

Processing
