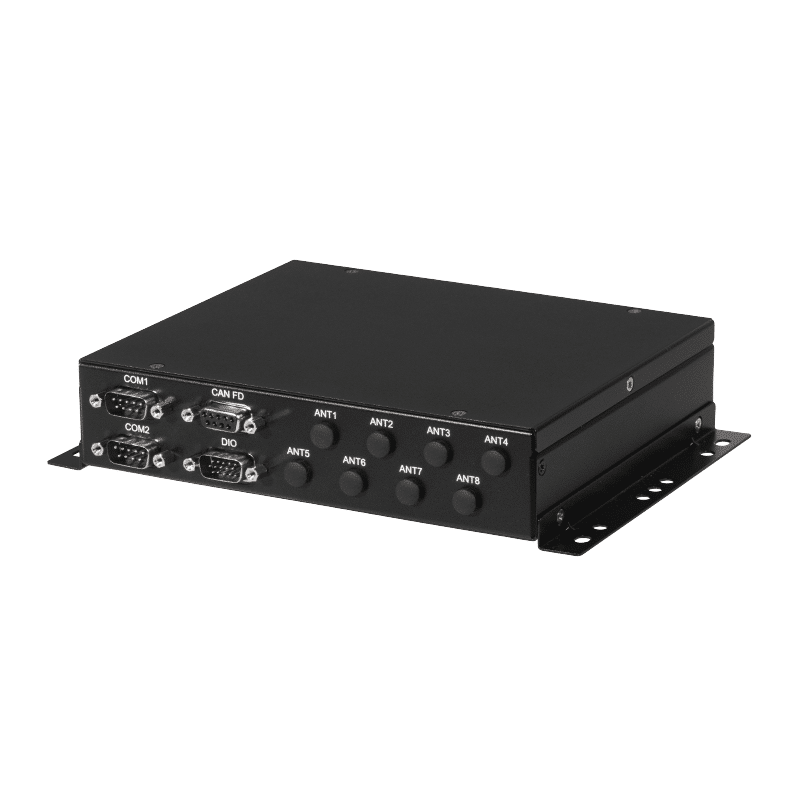

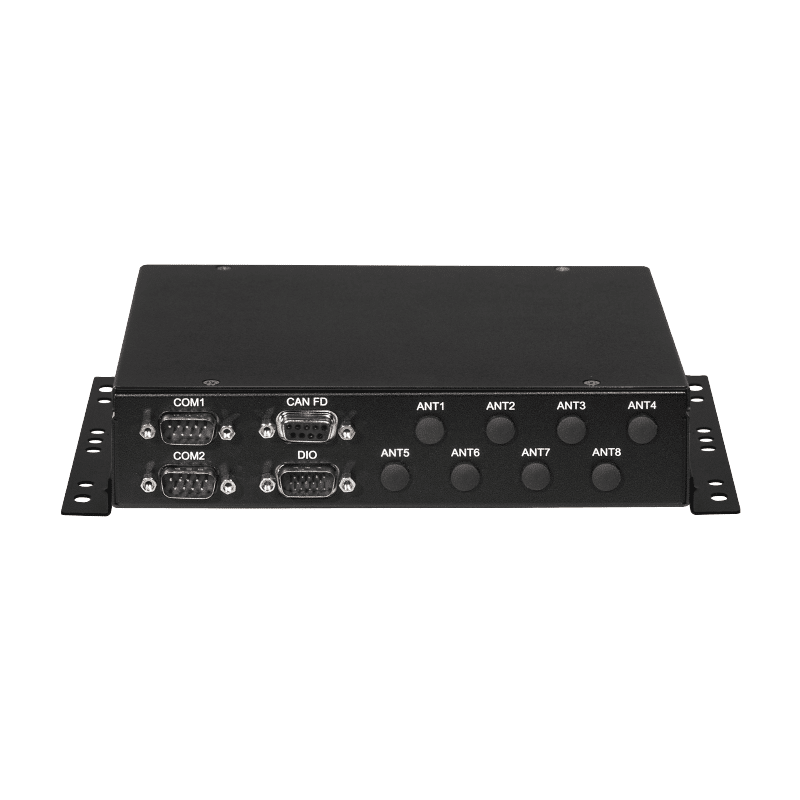

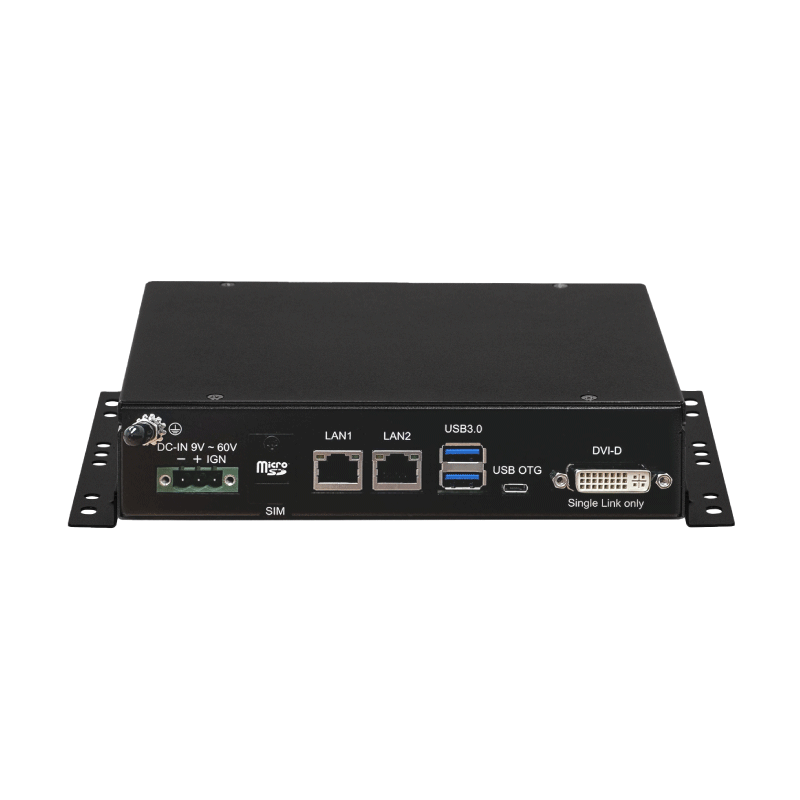

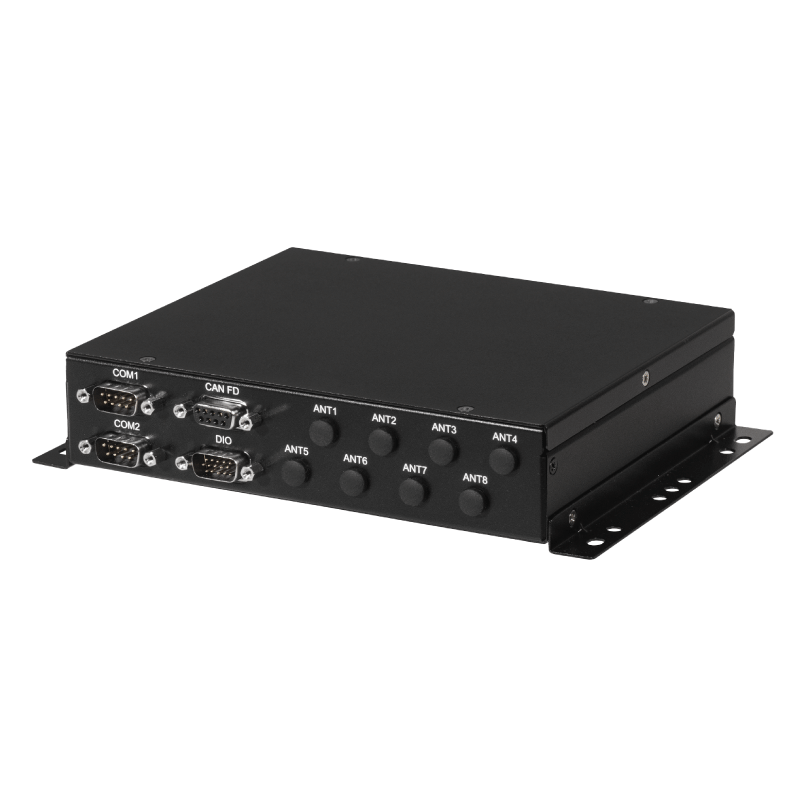

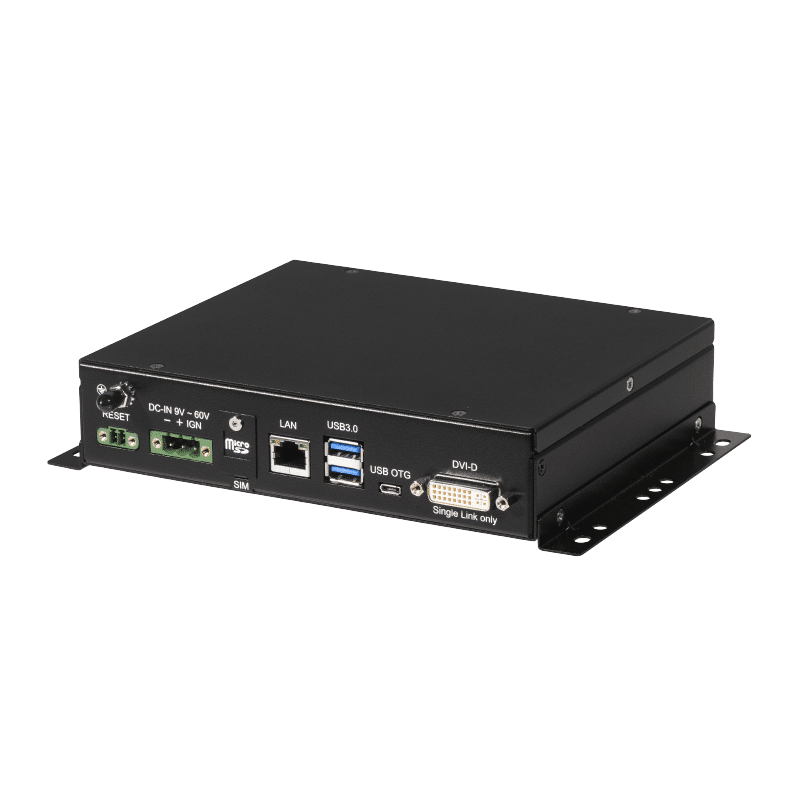

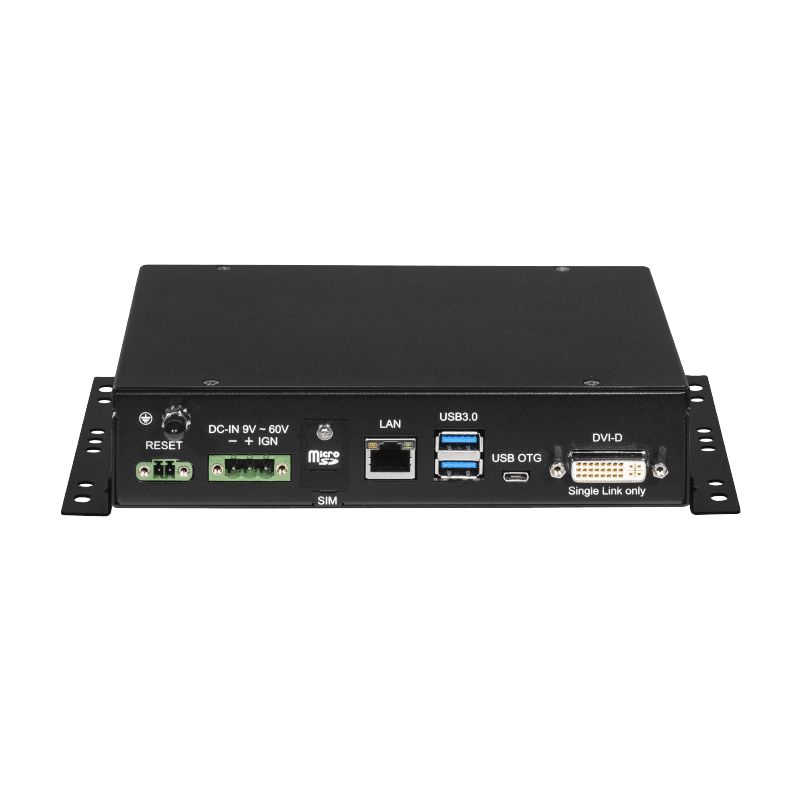

IBOX-500

Fanless Industrial Computer for EV Smart Cockpit

NXP® i.MX 8 QuadXPlus Automotive Grade SoC/ On-board LPDDR4 3GB/ On-board eMMC 5.1 32GB/ 1 x GbE/ 2 x RS-232/ 1 x DVI-D Single-Link/ 2 x USB 3.2

Product Status: Available

Features

  • NXP i.MX 8 QuadXPlus Automotive Grade Soc ( AEC-Q100 Grade 3)
  • On-board LPDDR4 3GB and eMMC 5.1 32GB
  • Built-in Accelerometer, Gyroscope, and Magnetics Sensor
  • 3 x CAN/ CAN FD
  • 1 x DVI-D Single-Link (Sintrones proprietary pin define)
  • 8 x DI, and 4 x DO and 2 x RS-232
  • 1 x M.2 3042/3052 Key B, 1 x M.2 2242 Key B, 1 x M.2 Key A-E
  • 1 x Micro-SD Slot
  • 9-60V DC Power Input
  • Operating Temp.: -40 ~ 70°C







Introduction

IBOX-500 is an ultra-compact fanless in-vehicle Computer with 5G or LTE connectivity. It utilizes NXP i.MX 8QuadXPlus Automotive AEC-Q100 Grade 3 Processor up to 1.2 GHz. IBOX-500 features an ultra-compact design that can easily fit into restricted spaces. As robust connectivity, the system can select 5G, LTE, GPS, and Wi-Fi /Bluetooth by M.2 modules. It is the perfect solution for the digital cluster, intelligent cockpit, and fleet management. Furthermore, it features smarter vehicle power Ignition and can also effectively support cars in extreme weather and operating conditions, such as snowplows, Trucks, Buses, taxis, and Forklifts.

SYSTEM

Processor

NXP i.MX 8QuadXPlus Automotive SoC (AEC-Q100 Grade 3)
Integrated 4 x Arm Cortex@-A35 Cores Up to 1.2 GHz
1 x Am Cortex@-M4F Core Up to 264 MHz

Chipset

N/A

Memory

On-board LPDDR4 3 GB

Sensor

Built-in Accelerometer, Gyroscope, and Magnetic Sensor

Watchdog

1 ~ 255 Level Reset

GRAPHICS

Graphics Engine

CPU 1 x GC7000Lite with 4 x Vec4 shader cores
(16 execution units)

DVI-I

1 x Single Link
(SINTRONES proprietary pin define)

Max Resolution

Max Resolution (DV-D Single Link) : 1920×1080 @60Hz

ETHERNET

LAN

1 x RJ-45 for GbE

I/O

Serial Port

1 x RS-232
1 x RS-232/422/485

USB

2 x USB 3.2 5 Gbps
1 x USB 2.0 OTG

DIO

8x DI (5~60VDC)
4 X DO (5VDC, 100mA)

STORAGE

Type

Onboard eMMC 5.1 32 GB
1 x Micro SD Slot

EXPANSION

M.2

1 x M.2 3042/3052 Key B for WWAN w/ 1 x nano SIM Slot
1 x M.2 2242 Key B for GPS
1 x M.2 Key A-E for Wi-Fi

POWER

Power Input

9V -60V Power Input

Power Protection

Automatics Recovery Short Circuit Protection

Power-off Delay Control

Vehicle Power Ignition for Variety Vehicle

Power Off Control

Power off Delay Time Setting by Software

MECHANICAL

Dimension

214(L) x 150(W) x 43(H) mm

Weight

1,000g (Barebone)

Construction

Steel

Mounting

Wall-mount

ENVIRONMENT

Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-40 ~ 70°C

Storage Temp.

-40 ~ 85°C

Vibration & Shock

IEC 60068-2-64, Random, 2.5G@5~500Hz. 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Operating: MIL-STD-810G, Method 516.6, Procedure, Trucks and semi-trailers=15G (11ms) with SSD

CERTIFICATION

Certification

CE, FCC, Class A, E13, ECE, R118

OPERATIONAL SYSTEM

Linux

Yocto Linux

ORDERING INFORMATION

Model No.

IBOX-500

Description

NXP i.MX 8QuadXPlus Automotive Grade SoC/ Onbaord LPDDR4 3GB/ Onboard eMMC 5.1 32GB/ 1 x GbE / 2 x RS-232/ 1 x DVI-D Single Link
/ 2 X USB 3.2

State of Origin

Made in Taiwan

Optional Accessory

Storage

MicroSD Card 64/128/256GB 3D TLC WT

Wi-Fi

M.2 2230 Key A-E/ IEEE 802.11 a/b/g/n/ac, Wi-Fi 6E

Modem

M.2 3042 Key B 5G & LTE Module

GPS

M.2 GPS Module
