Edge AI Rugged Computer
IBOX-602P-IP66

NVIDIA® Jetson Rugged IP66 PoE Edge AI Computer

  • NVIDIA® Jetson Orin™ NX SoM with 1024 CUDA Cores
  • IP66 Design (Waterproof and Dustproof) for Harsh Environment
  • 2 x GMSL-2 Cameras Support
  • 2 x Ethernet with PoE Support
  • Optional Backup Battery for Emergency

Product Status: Sample Available
Conformité Européenne FCC Certification E-Mark Certification EN 50155 Wide voltage Wide temperature Fanless
Inquiry Datasheet
SINTRONES IBOX-602P-IP66 compact edge AI computing system with NVIDIA Jetson Orin NX and dual GMSL-2 for real-time vision AI applications

Elite Vision AI Performance for Autonomous Mobility and Real-Time Decision Making

The IBOX-602P-IP66 is a high-performance edge AI computing solution specifically designed to bridge powerful AI capabilities with uncompressed video data via dual GMSL2 FAKRA connectors. Powered by the NVIDIA® Jetson Orin™ NX module and JetPack 6.2, this system provides the computational density required for real-time image processing in advanced driver assistance systems (ADAS) and autonomous vehicle navigation. Its compact footprint is optimized for rapid deployment in machine vision applications, including autonomous mobile robots (AMR), smart surveillance, and emergency care in moving ambulances, ensuring data-driven decision-making directly at the edge.

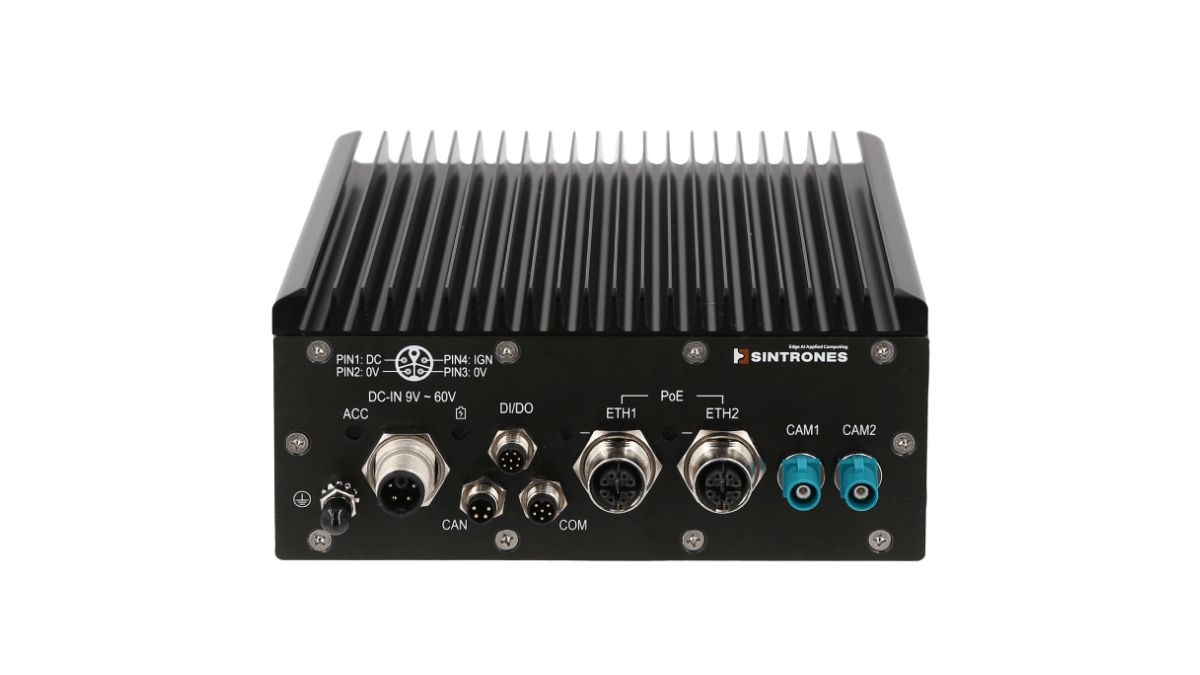

Vision-based edge AI computer IBOX-602P-IP66 featuring GMSL-2 FAKRA connectors and NVIDIA Jetson Orin NX for autonomous mobile robot navigation.
Rugged IBOX-602P-IP66 edge AI computing controller deployed in an agricultural autonomous vehicle, featuring IP66 protection and GMSL-2 vision AI for real-time crop monitoring and autonomous navigation in harsh farming environments.

IP66-Rated Ruggedness and Smart Power Management for Volatile Environments

Engineered for operational excellence in extreme outdoor and industrial settings, the IBOX-602P-IP66 is an ideal candidate for a fleet management gateway, agricultural autonomous vehicle controller, or smart traffic management hub. It features an IP66-rated waterproof and dustproof aluminum alloy enclosure and is fully certified with EN 50155 and MIL-STD-810G standards to withstand intense shock and vibration. The system utilizes vibration-proof M12 Connectors and supports dual PoE (PSE Class 3) to simplify connectivity for IP cameras or LiDAR sensors. With a wide 9-60V DC power input and a fanless industrial PC design, it operates reliably from -40°C to 65°C, providing a robust backbone for rolling stock and mission-critical mobility.

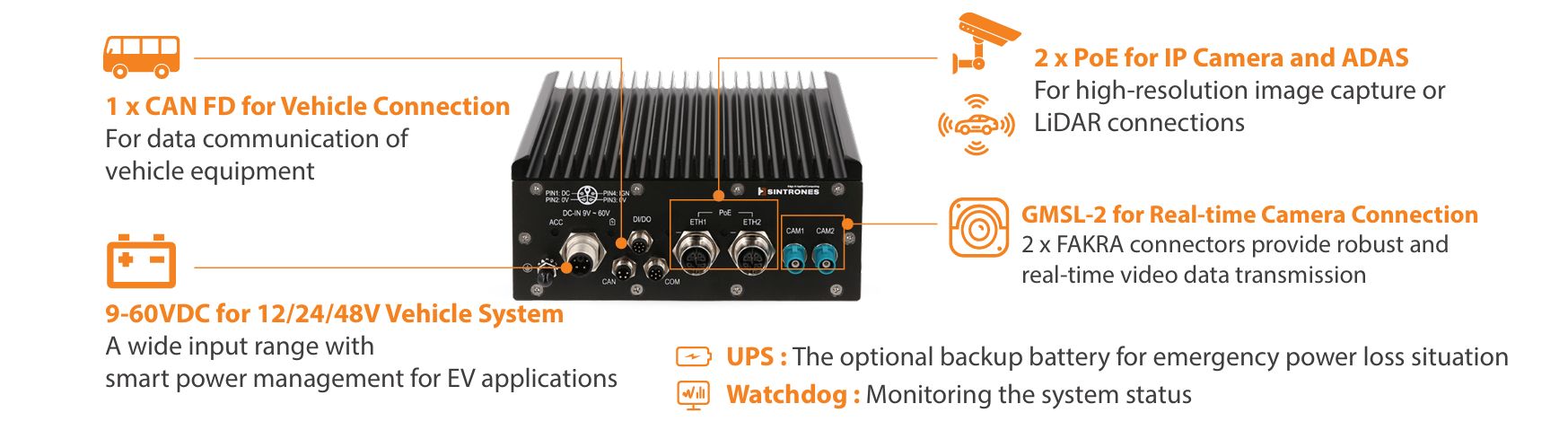

IBOX 602P IP66 Edge AI Application

Technical FAQ

Q1: What are the vision AI capabilities of the IBOX-602P-IP66 with GMSL2 technology?

A: The IBOX-602P-IP66 integrates dual GMSL2 via FAKRA connectors with the NVIDIA Jetson Orin NX module. This combination allows for the transmission and processing of uncompressed, high-resolution video with ultra-low latency, essential for self-driving cars and robotic devices.

Q2: How does the IP66 rating and thermal solution support deployment in extreme climates?

A: The IP66 rating ensures the system remains resilient against high-pressure water jets and heavy dust. Additionally, the built-in “Low-Temp. Starter” and optional thermal solutions allow the device to operate in temperatures as low as -40°C, making it suitable for both snowplows and desert fleet vehicles.

Q3: Why are M12 connectors and PoE significant for this fanless industrial PC?

A: M12 connectors provide secure, screw-locked interfaces that resist the intense shocks and vibrations typical of rolling stock. The dual PoE ports reduce cable clutter by supplying 15W of power directly to connected peripherals like IP cameras or LiDAR sensors.

Q4: Can the IBOX-602P-IP66 handle the power fluctuations of 12V/24V/48V vehicle systems?

A: Yes, the system supports a wide 9-60V DC power input with high tolerance for large fluctuations. Its smart power management with ignition detection ensures data integrity and smooth system shutdowns during vehicle operation.

Q5: Does the system support seamless mobile data transmission for moving vehicles?

A: Yes, the IBOX-602P-IP66 supports WWAN modules with dual Nano SIM cards, preventing signal loss when switching between different 5G or LTE providers. This ensures uninterrupted data transmission for fleet management and mission-critical autonomous mobility.

Processing
