Technical FAQ

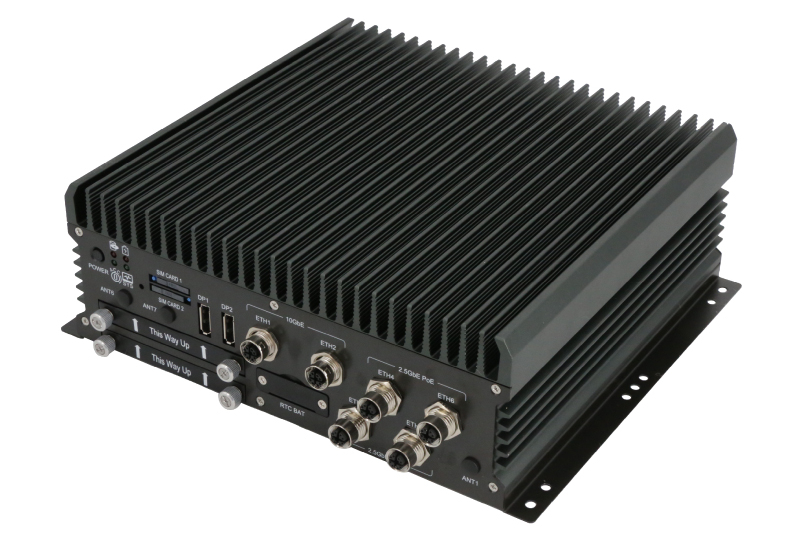

Q1: What are the AI computing capabilities of the ABOX-5221 with NVIDIA RTX™ Ada Generation GPUs?
A: The ABOX-5221 supports a range of discrete GPU options, including the NVIDIA RTX™ Embedded 5000 Ada Generation, which provides up to 682 AI TOPS. This allows for high-bandwidth edge AI inference, enabling the system to process massive parallel data for real-time video analytics and complex autonomous decision-making in industrial and transit environments.
Q2: How do the dual 10GbE ports benefit high-volume data handling at the edge?
A: The dual 10GbE ports provide high-bandwidth uplink and aggregated downlink connectivity, which is essential for real-time, high-volume data handling. This enables low-latency data transmission between the core network and connected edge devices, ensuring that compute-intensive and time-sensitive workloads are processed without network bottlenecks.
Q3: How does the front-access RTC battery design simplify maintenance for field deployments?
A: Unlike traditional systems that require chassis disassembly, the ABOX-5221 features a front-access, easy-swap RTC battery design. This innovative feature allows for rapid battery replacement without removing the system from its mounting or disassembling the housing, significantly minimizing maintenance downtime and operational costs in the field.
Q4: Is the ABOX-5221 suitable for rolling stock and harsh railway environments?
A: Yes, the ABOX-5221 is specifically designed for railway applications, holding certifications for EN 50155 and EN 45545-2 (R25). It also features optional M12 X-coded connectors for Ethernet ports and SMA connectors for antennas, ensuring secure and stable connections despite the heavy vibration and shock typical of rolling stock environments.
Q5: What power protection and management features are integrated into the system?
A: The ABOX-5221 supports a wide power input range of DC 9-60V and includes OCP, OVP, surge, and reversed polarity protection. It also features Smart Power Management with ignition detection for in-vehicle use and an optional patented BBU battery kit (Patent No.: M447854) that provides up to 10 minutes of emergency backup time during power interruptions.
