ABOX-5210 AI GPU Computer
ABOX-5210P-i7 AI GPU Computer
ABOX-5210 AI GPU Computer
ABOX-5210P-i7 AI GPU Computer

Edge AI Rugged Computer
ABOX-5210(P)(G)

Intel® Xeon® W-1290TE Processor / 10th Generation Intel® Core™ i9 Processor / NVIDIA GPU

Edge AI Computing System

  • Intel® Xeon® W-1290TE Processor / 10th Generation Intel® Core™ i9 Processor
  • NVIDIA® RTX™ A4500/A2000/3000 & NVIDIA® T1000
  • 8 x DI, and 4 x DO and 3 x RS-232/422/485
  • 1 x M.2 Key B, 1 x M.2 Key A-E & 3 x Mini PCIe Expansion Slots
  • Dual Hot-swappable SATA Storage RAID 0/1/5
  • 9~48V DC Power Input
  • 10 x GbE RJ45 (Optional 8 x PoE & 8 x M12 X-Code Connectors)
  • Rolling Stock EN 50155 & EN 50121-3-2 Certified

Product Status: Available
Conformité Européenne FCC Certification E-Mark Certification EN 50155 Wide voltage Wide temperature Fanless
Inquiry Datasheet
ABOX-5210 Edge AI GPU computer powered by Intel Xeon W-1290TE and NVIDIA Quadro RTX 3000 for autonomous vehicle operations.

Accelerating Deep Learning at the Edge with Server-Grade Performance

Driven by Intel® Xeon® W-1290TE or 10th Gen Core™ i9 processors, the ABOX-5210 series is engineered to handle the most demanding GPU computing needs at the rugged edge. By integrating NVIDIA® Quadro® RTX 3000 GPUs, the system delivers up to 1920 CUDA cores and 240 Tensor cores, providing a robust platform for real-time AI inference and high-speed deep learning operations. This powerful combination ensures secure, low-latency data processing for mission-critical AIoT applications, from complex object detection in autonomous vehicles to real-time traffic flow analysis in smart city infrastructures.

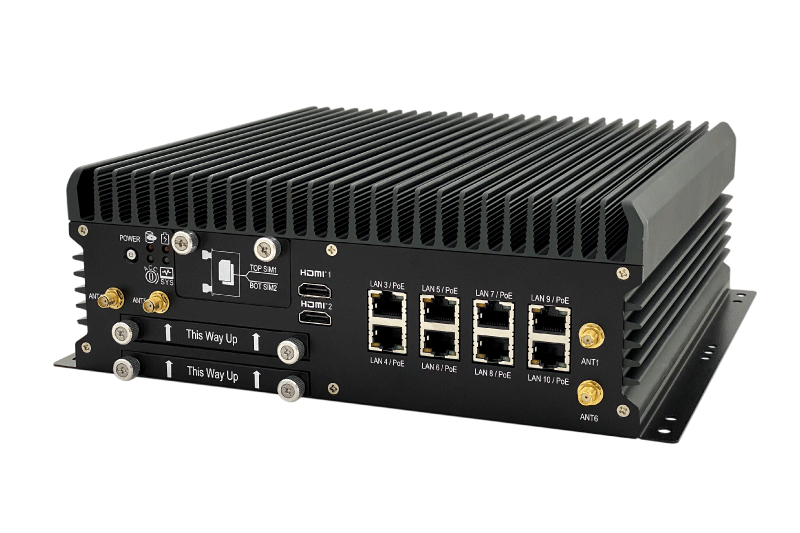

NVIDIA Quadro RTX 3000 GPU module with 1920 CUDA cores integrated into ABOX-5210 for deep learning and traffic flow analysis.
ABOX-5210 fanless computer integrated into fleet management systems with 10x GbE LAN and patented internal battery for real-time vehicle diagnostics.

Ruggedized Connectivity and Fail-Safe Power for Intelligent Transportation

The ABOX-5210 series stands out with its exceptional connectivity, offering 10 x GbE LAN ports with optional PoE and M12 X-coded connectors for secure data transmission in high-vibration environments. Fully certified with EN 50155 and E-Mark, this series is optimized for rolling stock and vehicle-based fleet management systems. To ensure data integrity during power fluctuations, the ABOX-5210 features Smart Ignition Power Management and a SINTRONES patented internal battery kit, capable of providing emergency operation during unexpected power loss. With a wide operating temperature range from -40°C to 70°C, it guarantees 24/7 reliability in the harshest outdoor and industrial settings.

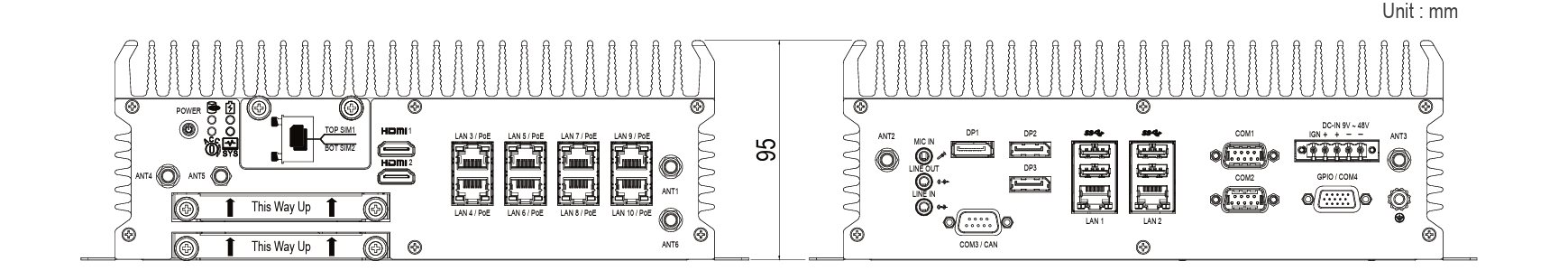

ABOX-5210 Dimension

Technical FAQ

Q1: How does the NVIDIA® Quadro® RTX 3000 GPU enhance AI performance in the ABOX-5210?

A: The integration of the RTX 3000 GPU provides 1920 CUDA cores and 240 Tensor cores, specifically designed to satisfy demanding AI deep learning and inference needs. This allows the system to perform high-resolution object detection and real-time data analytics with significantly lower latency compared to standard embedded computers.

Q2: What connectivity options are available for vehicle-based surveillance?

A: The ABOX-5210 offers up to 10 x GbE RJ45 ports, with an optional configuration of 8 x PoE (Total Max 120W) to power IP cameras directly. For environments with extreme vibration, the system provides M12 X-coded connectors to ensure a lockable, stable network connection for public transit surveillance and fleet management applications.

Q3: How does the patented internal battery kit protect mission-critical data?

A: The SINTRONES patented internal battery provides emergency power backup for approximately 10 minutes of operation. This allows the system to manage safe shutdowns or bridge brief power interruptions common in vehicle engine cycles and rural power grids, preventing data corruption and hardware damage.

Q4: Is the ABOX-5210 series certified for railway and in-vehicle deployment?

A: Yes, the ABOX-5210 is fully compliant with EN 50155, EN 45545-2 R25, and E-Mark standards. These certifications guarantee that the hardware meets rigorous safety and performance requirements for rolling stock, public transportation, and smart fleet management.

Q5: What are the storage expansion and data redundancy options?

A: The system features dual 2.5″ SATA drive bays with support for RAID 0, 1, and 5, ensuring data redundancy for critical surveillance footage. Additionally, an M.2 2280 Key M slot supports high-speed NVMe SSDs for rapid data logging and system boot-up.
