VDB-130-FD-M2

USB2.0 to Dual Isolated CAN FD

• Dual Isolated CAN FD
• Compatible with CAN 2.0A, CAN 2.0B, and CAN protocol
• USB 2.0 Interface
• M.2 Type 3042 Key B
• Operating Temp.: -40°C to 85°C

Product Status: Coming soon

Inquiry Datasheet

Chipset

• Fintek F81605N

Supported Data Rate

• 1, 2, and 5Mbps

Supported Bit Identifier

• 11-bit for CAN 2.0A, 29-bit for CAN 2.0B

Electrical Characteristics

Isolation: • 5 kV rms for signal, 3 kV rms for power
CAN Output Voltage Range: • 5.0 VDC ±5%

Interface

Input

• USB 2.0

Output

• 2 x 1.0 mm 1×4-PIN JST (H1, H2)

• PIN 1: GND_ISO

• PIN 2: CAN_H

• PIN 3: CAN_L

• PIN 4: GND_ISO

Configuration

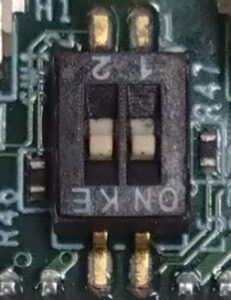

Termination Resistor *PIN 1 for H2 *PIN 2 for H1: ON

(Default Setting)

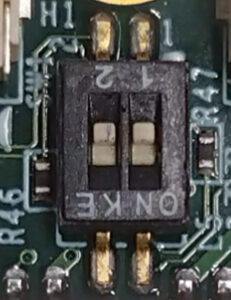

OFF

Power Requirement

Power Input: • 3.3 VDC ±10%
Power Consumption: • TBD

Environmental

Operating Temp.: • -40°C ~ 85°C, ambient w/ air flow 0.6m/s
Storage Temp.: • -55°C ~ 120°C
Relative Humidity: • 10% RH – 90% RH (non-condensing)

Software

Supported Driver

• Windows 10/11 64-bit,

• Linux Kernel 2.6 or above

EMC Compliance

• CE, FCC

Mechanical

Form-factor: • M.2 3042 Key B
Dimensions (L x W x H): • 30 x 42 x 8 mm

Ordering Information

Model Number: VDB-130-FD-M2
Description: M.2 3042 Key B USB 2.0 to Dual Isolated CAN FD Module
Accessory: 2 x D-Sub 9 Male Cable
State of Origin: Made in Taiwan

D-Sub 9 Connector Pinout

Pin No.	Signal
1	N/C
2	CAN_L
3	GND
4	N/C
5	N/C
6	GND
7	CAN_H
8	N/C
9	N/C
