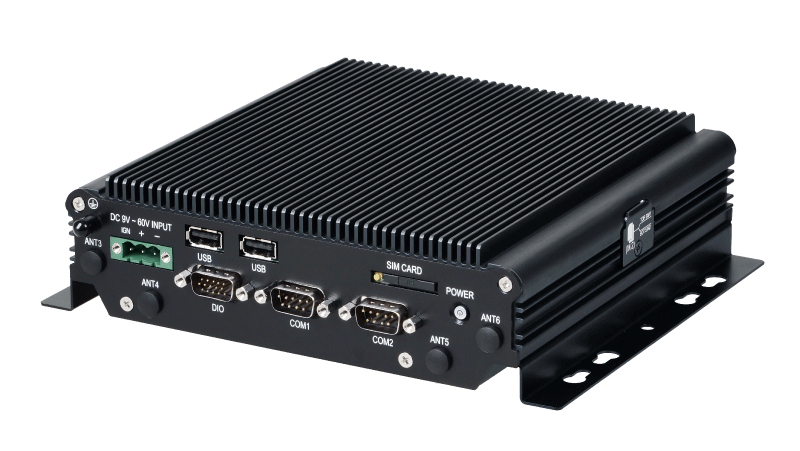

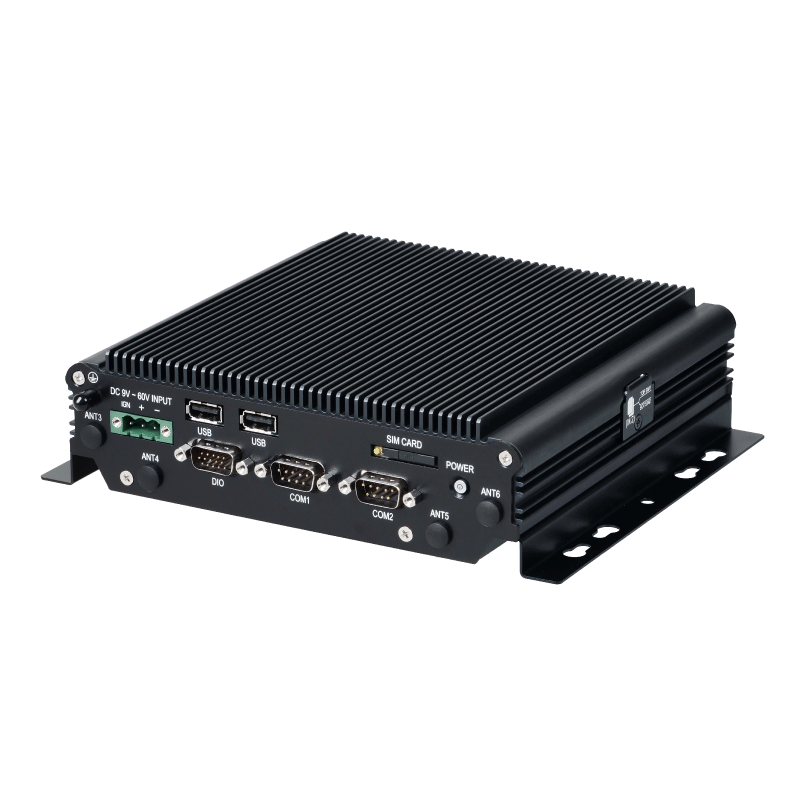

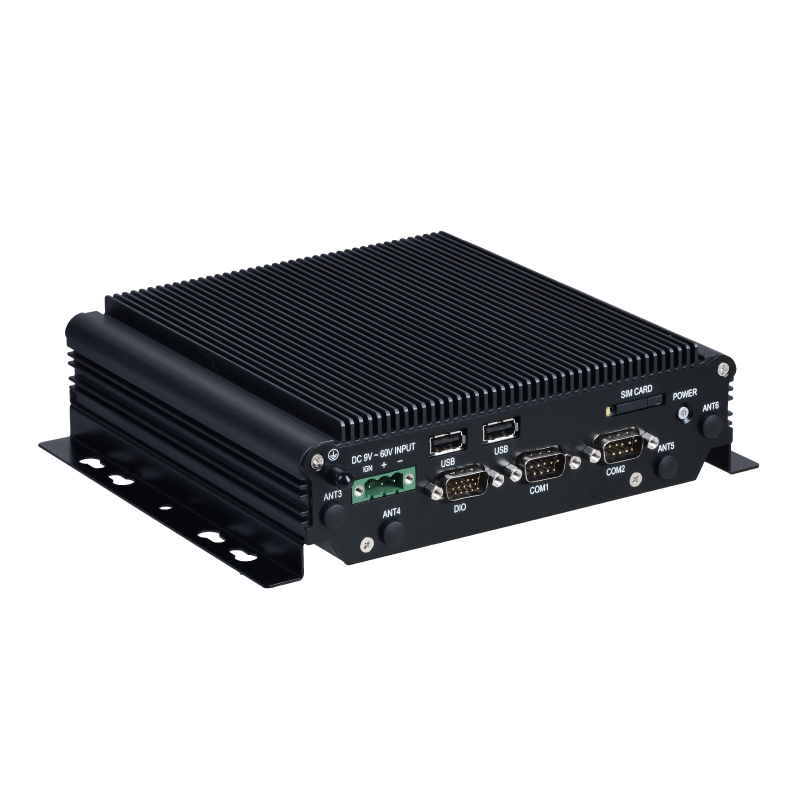

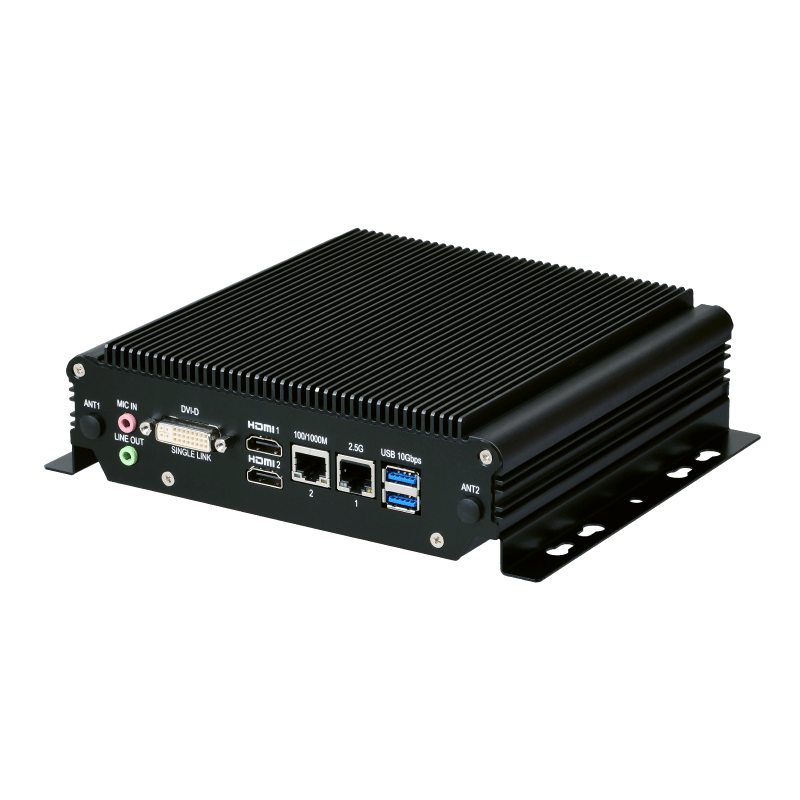

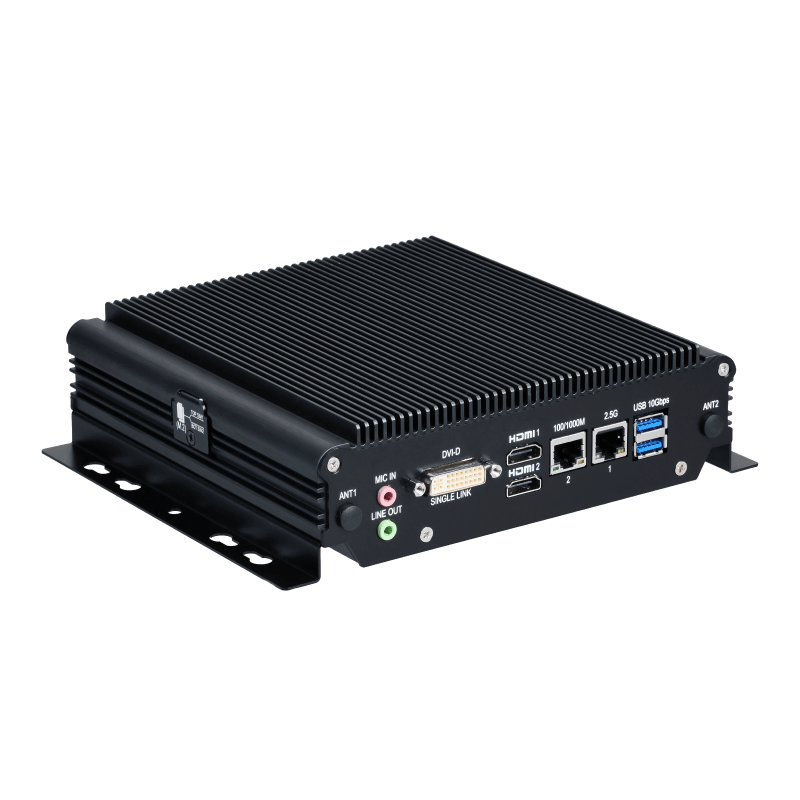

VBOX-3122

In-Vehicle Computer for On-board Telematics

Intel® 11th Gen Core™ 1185G7E CPU 2x LAN/ 2x HDMI®/ 1x DVI/ 2x COM/ DC 9-60V Input In-Vehicle Computer

Product Status:Available

Features

• Intel® 11th Gen Core™ i7-1185G7E
• 3 x M.2 & 2 x mPCIe Slots for WWAN / Wi-Fi / SSD /GPS / CAN Expansion
• 9V – 60VDC Wide Power Input
• Smart Vehicle Power Management
• 2 x RS-232/422/485 Serial Port
• 4 x DI / 4 x DO / 2 x Analog Input

Introduction

The VBOX-3122 Series is a robust line of in-vehicle computers designed for high-performance and reliable operation in challenging mobile environments. Powered by the Intel® 11th Gen Core™ i7-1185G7E CPU, these systems are equipped to handle demanding applications with ease. Key features include a wide range power input (9V-60VDC), intelligent vehicle power ignition, and an array of communication interfaces. With expansion slots supporting WWAN, Wi-Fi, GPS, and CAN modules, the series ensures seamless wireless connectivity. Two RS-232/422/485 serial ports, four digital inputs/outputs, and two analog inputs provide versatile interfacing options. Additionally, the system offers multiple video outputs with 2 HDMI® and 1 DVI ports. The VBOX-3122 Series, engineered for the diverse needs of modern vehicular systems, is a testament to the convergence of advanced computing technology with rugged, mobile applications.

SYSTEM
CPU

Intel® 11th Gen Core™ i7-1185G7E up to 2.8 GHz*
Intel® 11th Gen Core™ i5-1145G7E up to 2.6 GHz*
Intel® 11th Gen Core™ i3-1115G4E up to 3.0 GHz*
Intel® Celeron® 6305E 1.8 GHz
*CPU TPD is configured at 15W as the default setting.

Memory

1 x DDR4-3200 SO-DIMM up to 32 GB

Graphics

Intel® Iris® Xe / UHD Graphics (for Celeron® 6305E only)

Network

1 x Intel® 2.5GbE supports vPro for Core i5 & i7
SKU 1 x Intel® Gigabit Ethernet

Watchdog

1 ~ 255 Level Reset

Security

TPM 2.0

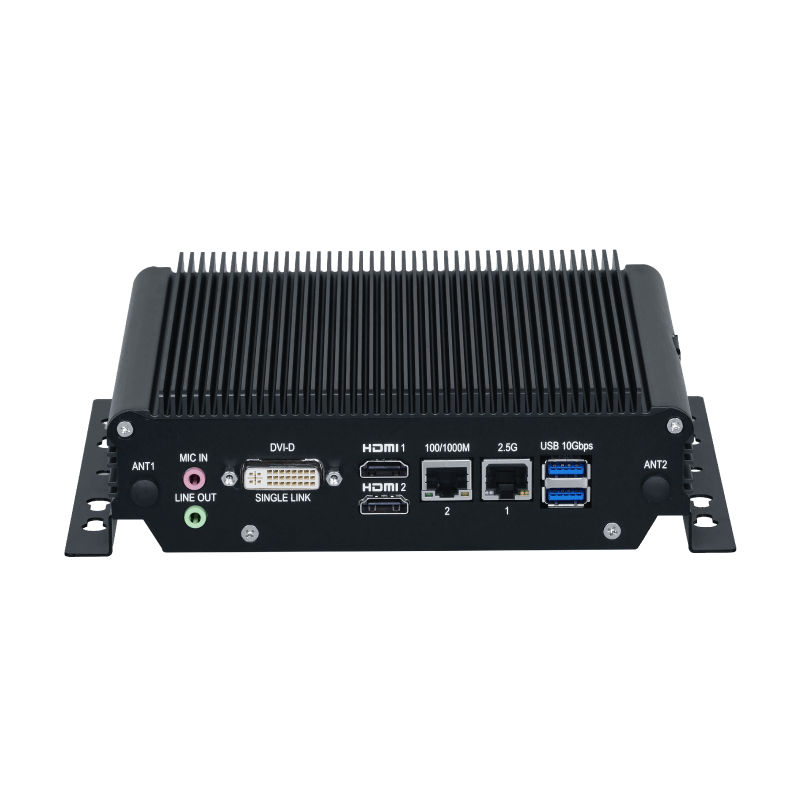

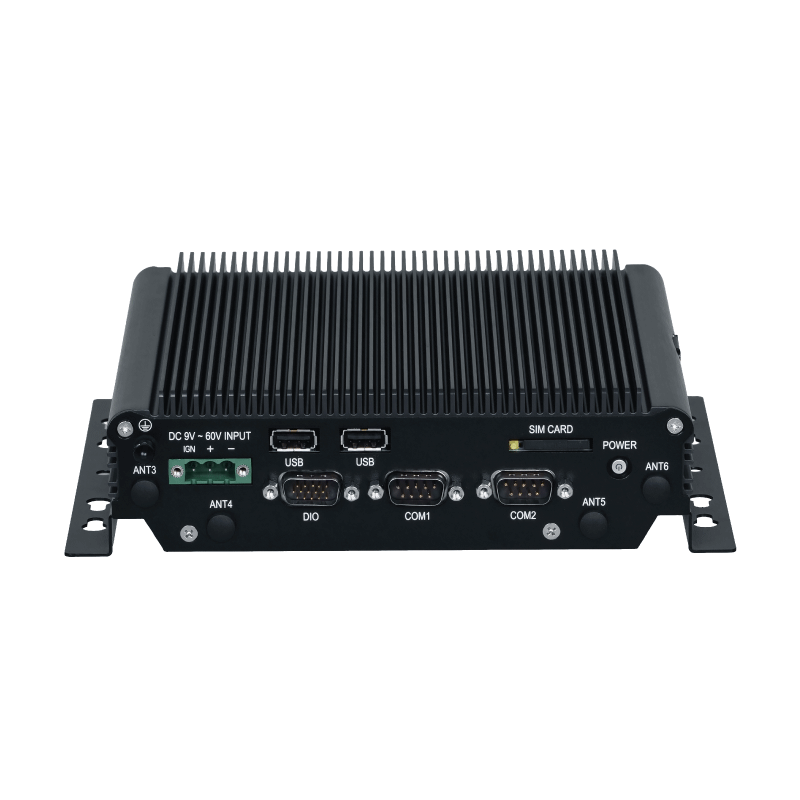

I/O
Serial ATA

1 x SATA 6Gb/s

Serial Port

2 x RS-232/422/485

USB Port

2 x USB 3.2 Gen 2, 2 x USB 2.0

Ethernet

2 x RJ-45 Ports for 1 x 2.5GbE and 1 x GbE

Video Port

2 x HDMI® 2.0b, 1 x DVI-D
*Only supports Single-Link DVI-D cables

GPIO Port

4 x DI (9~60V) / 4 x DO (5V / 100mA)
2 x Analog Input (0~60V w/0.5V accuracy)

Audio

1 x MIC-in, 1 x Line-out

Expansion Bus

1 x M.2 3042/52 Key B Slot w/ 2 x SIM Card Sockets for WWAN expansion
1 x M.2 2230 Key E slot for Wi-Fi/BT module
1 x mPCIe Full-size slot supports USB 3.0 and USB 2.0 w/ SIM card slot
1 x mPCIe Full-size Slot supports PCIe 3.0 x1 and USB 2.0

Antenna

6 x Pre-cut Hole for External SMA Antenna

SOFTWARE
Operating System

Windows 10/11 IoT 64-bit, Ubuntu 20.04/22.04 LTS 64-bit

ENVIRONMENTAL
Operating Temp.

-40 ~ 70ºC (with SSD), ambient w/ 0.6m/s airflow

Storage Temp.

-40 ~ 80°C

Relative Humidity

10% RH – 90% RH (non-condensing)

Vibration (with SSD)

IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, DUT Operating

Shock

MIL-STD-810G, Method 516.6, Procedure I, Trucks and semitrailers= 15G (11ms) with SSD, DUT Operating

Certifications / Approvals

CE, FCC Class A, E-Mark

STORAGE
Type

1 x SATA Connector for 2.5″ SATA HDD/SSD
1 x M.2 2280 Key M for NVMe SSD

POWER REQUIREMENT
Power Input

DC 9 – 60V Input

Power Mgmt.

Ignition Management for Variety Vehicle

Power Off Control

Power off delay time setting by BIOS and SINTRONES utility

UPS (Optional)

Internal battery Kit for about 10 mins operating
*UPS backup time varies depending on actual overall system power consumption.
*Operating temperature will be 0~55°C with the battery kit.
Patent No. : M447854 – Build-in Battery

MECHANICAL
Construction

Aluminum Alloy

Mounting

Wall-mount, VESA-mount, Din Rail Mounting Kit

Weight

1,800g

Dimensions

210 x 171 x 54 mm (w/ mounting kit)

ORDERING INFORMATION
Part Number

VBOX-3122-zz
zz=i7=Core™ i7-1185G7E, zz=i5=Core™ i5-1145G7E, zz=i3=Core™ i3-1115G4E; zz=C1=Celeron® 6305E

Description

Intel® 11th Gen Core™ i7 / i5 / i3 / Celeron® Processor with 2 x LAN/ 2 x HDMI®/ 1 x DVI/ 2 x COM/ DC IN 9-60V In-Vehicle Computer

State of Origin

Made in Taiwan

OPTIONAL ACCESSORIES
DRAM

DDR4 SO-DIMM 3200 4GB~32GB (-40~85°C)

SATA SSD

2.5 Inch SATA SSD TLC 128GB~1TB (-40~85°C)
M.2 2280 Key M NVMe 256 GB~1 TB TLC (-40~85°C)

Wi-Fi / BT Module

M.2 2230 Key A+E Wi-Fi 6 + Bluetooth 5.2 module

WWAN Modem

M.2 3042/52 5G/LTE modem

GPS

mPCIe GPS module

CAN Bus

mPCIe CAN module

Battery Backup Kit

BAT-3000 kit 1150mAH 3S1P Battery kit (-10~60°C for Discharge)
