Intel® Processor N150 Ultra-Compact Embedded Computer
• Ready for high-speed DDR5 4800 memory, up to 16 GB capacity
• 9–36V Wide DC Input with OCP, OVP, Surge and Reversed Polarity Protection
• Up to 6 x USB Ports and 3 x COM Ports for Retail and Industrial Applications
• 2 x Intel 2.5Gb Ethernet for High-Bandwidth Uplink and Downlink Connection
• Expandable Wireless Connectivity via M.2: Wi-Fi, 5G, and LTE Module
• Support TPM 2.0 to Enhance System Security and Safeguard Critical Data
• Ultra-Compact Fanless Computer for Limited Space Deployment
• Intel® Twin Lake N150 4-core processor up to 3.60 GHz
• Intel Atom® x7433RE 4-core processor up to 3.40 GHz
• Intel® Twin Lake Core™ 3 N355 8-core processor up to 3.90 GHz
Intel® Graphics
1 x DDR5-4800 SO-DIMM up to 16GB
TPM 2.0
Auto reset for unresponsive system
(custom 1-255 sec/min delay settings in BIOS)

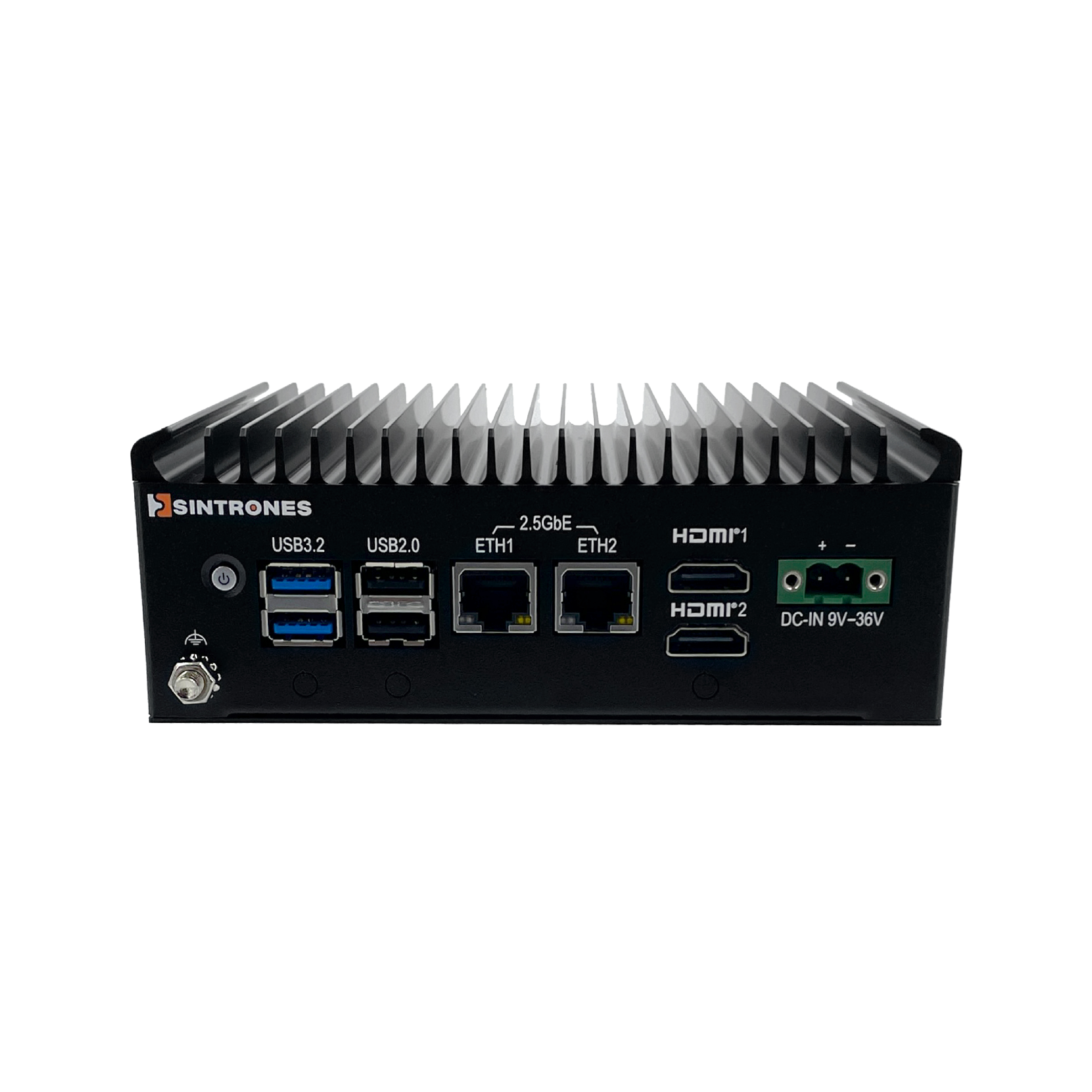

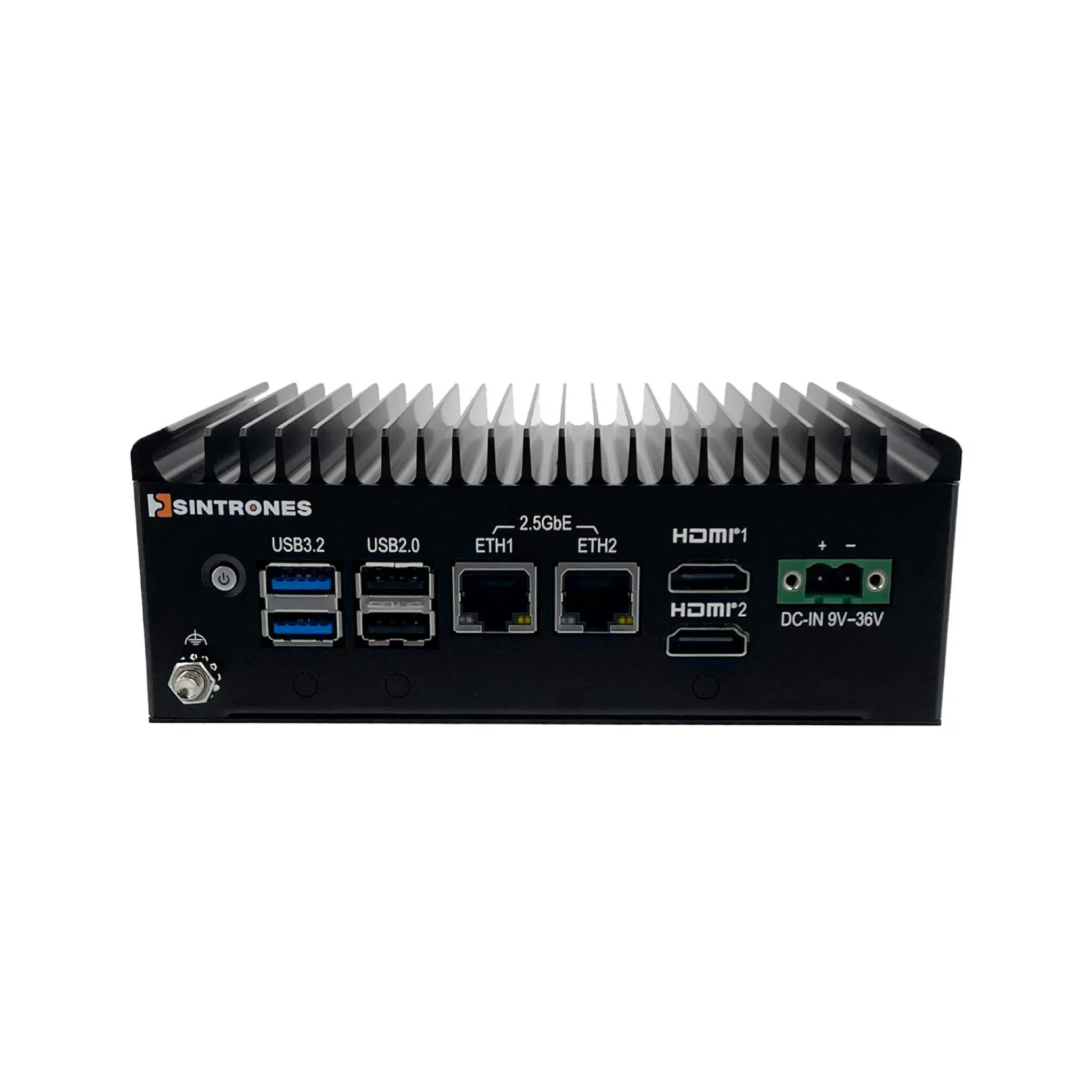

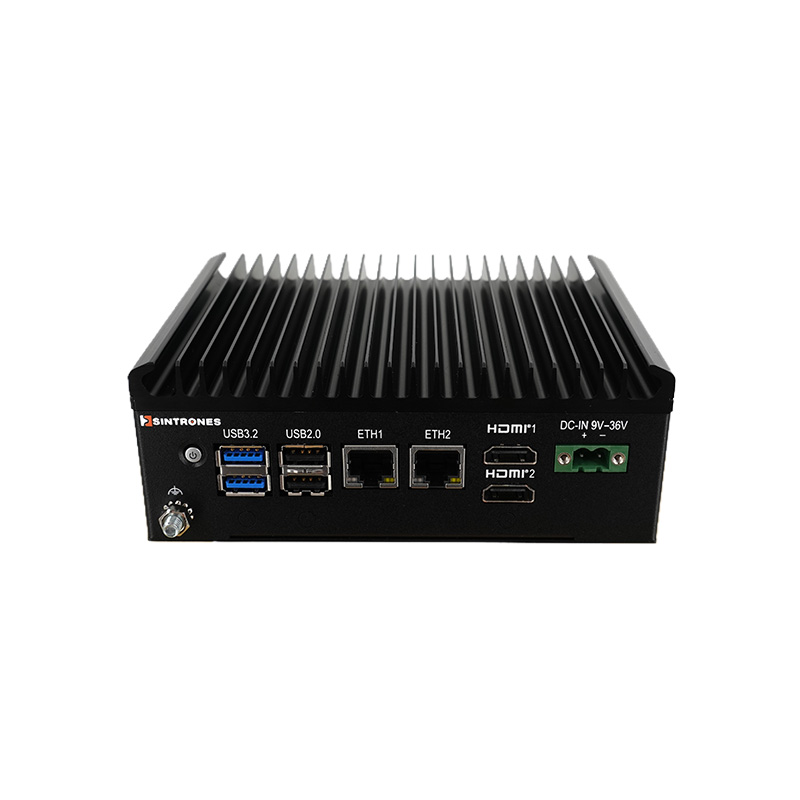

2 x HDMI® up to 3840 x 2160 @ 60Hz as specified in HDMI 2.0b

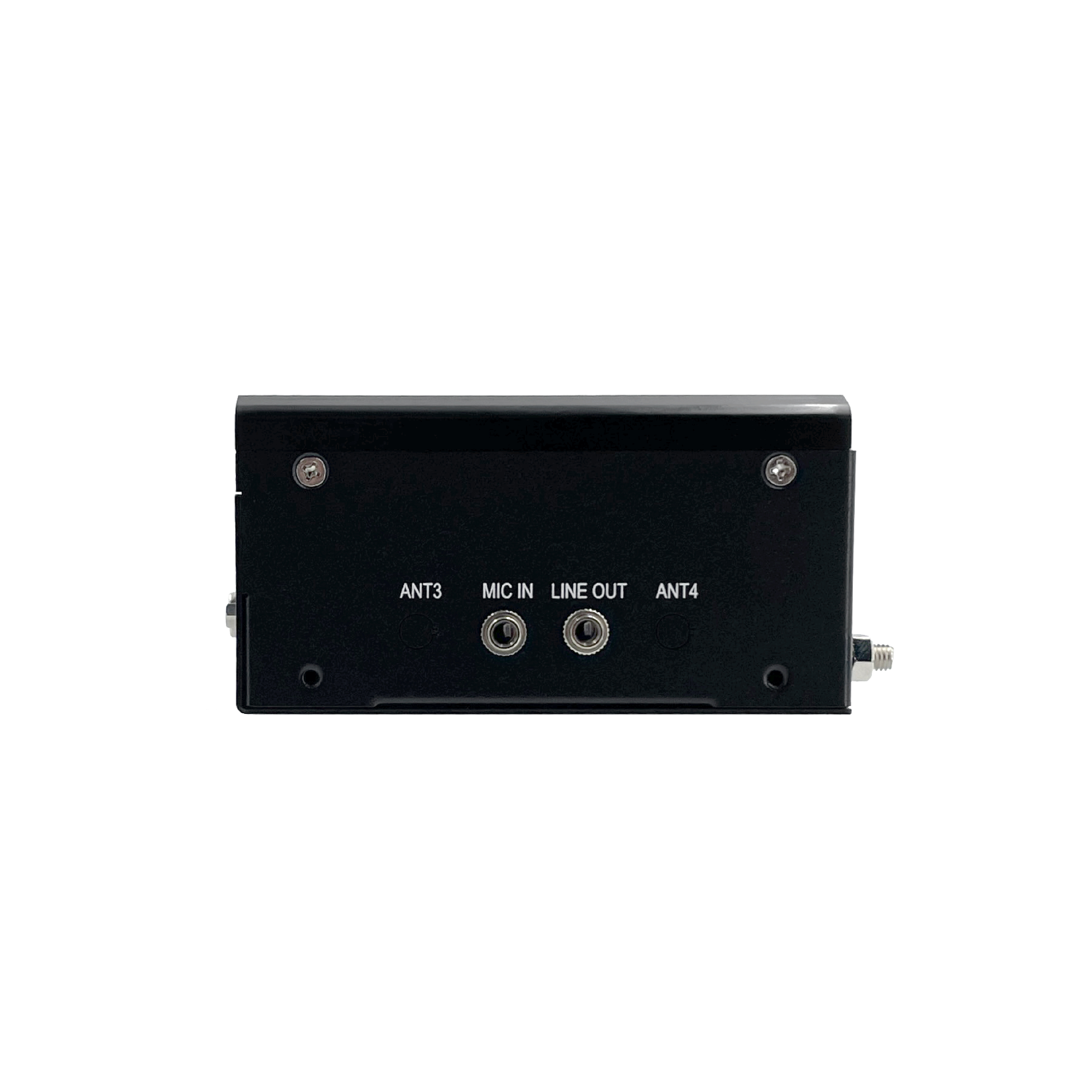

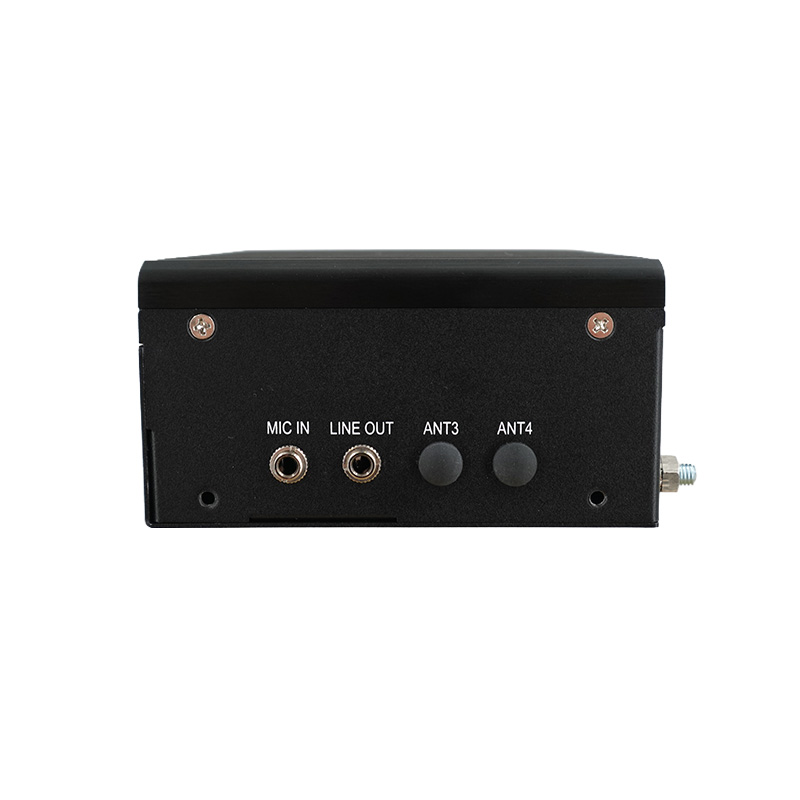

1 x Line-out, 1 x Mic-in
2 x 2.5GbE (Intel I226-LM) via RJ-45
• 2 x USB 3.2 Gen 1
• 4 x USB 2.0
• 4 x DI (DC 5-36V)
• 4 x DO (DC 5V/100mA)

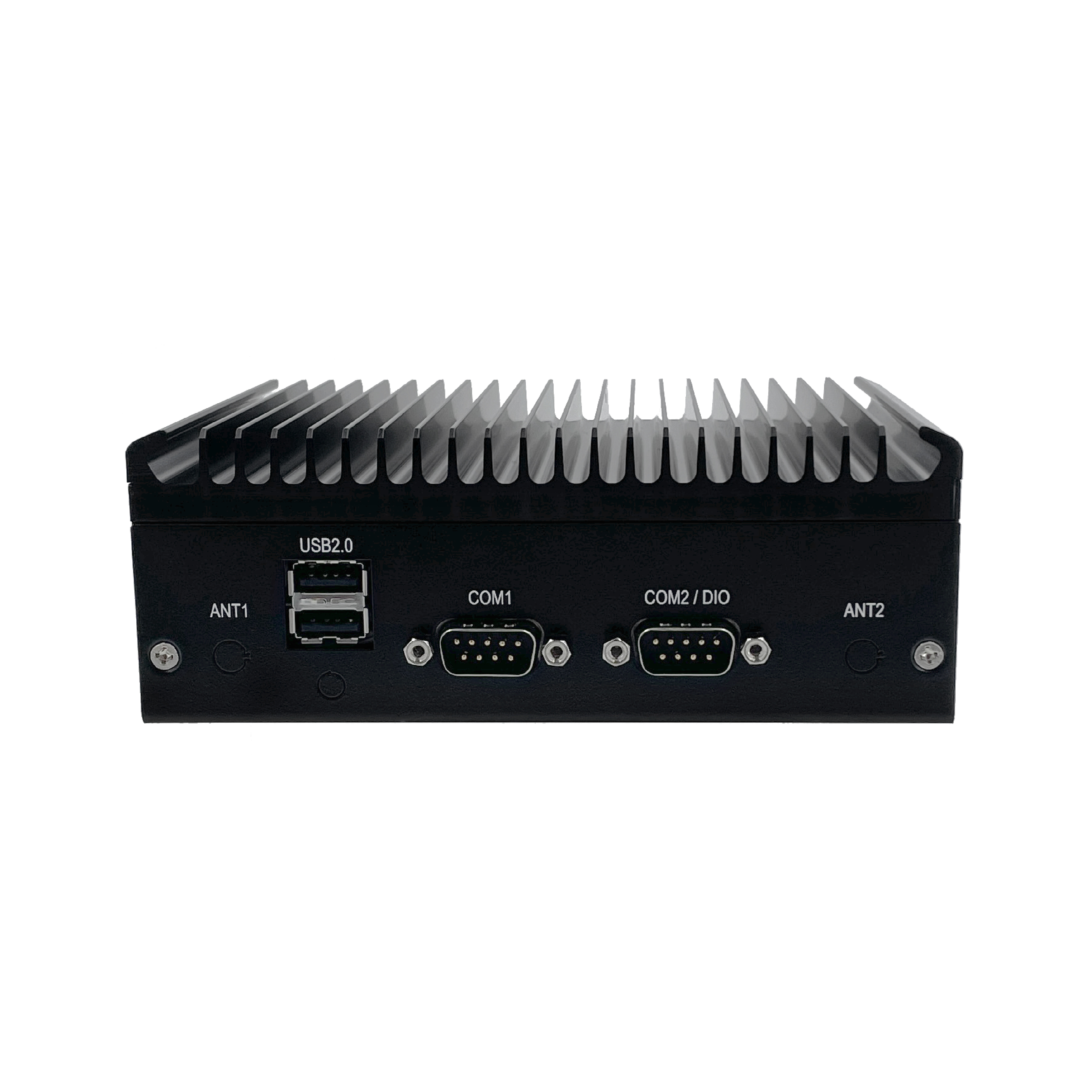

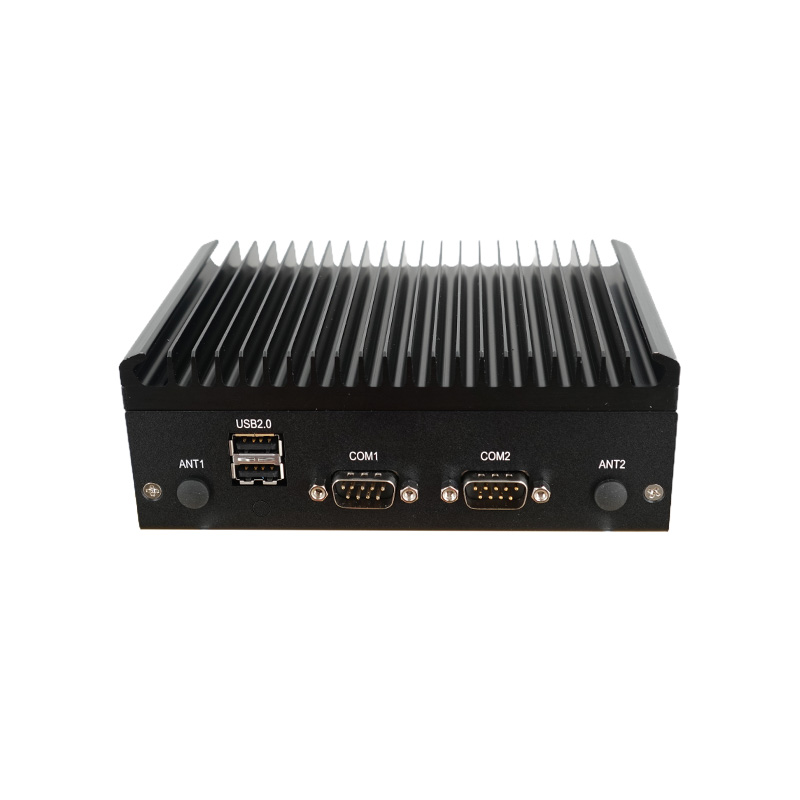

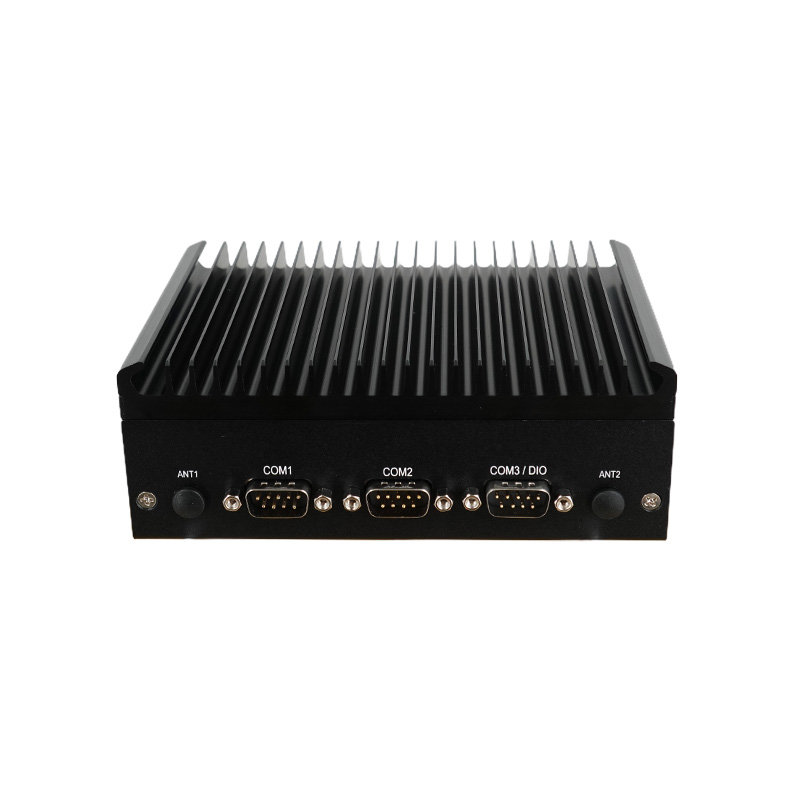

• 2 × RS-232/422/485
• 2 × RS-232/422/485 + 1 × RS-232 (Optional)
• 1 x M.2 3042/3052 Key B supports PCIe and USB interface for WWAN w/ single Nano SIM
• 1 x M.2 2230 Key E for Wi-Fi/BT
• 1 x 2.5” SATA SSD
• 1 x M.2 2242 Key B for SATA SSD*
*M.2 Key B is a combo slot, either WWAN module or M.2 SATA can be installed.
DC 9-36V (nominal power input DC 12V/24V) via 2-pin terminal block
OCP, OVP, surge protection, reversed polarity protection
• Windows 11 IoT Enterprise LTSC
• Ubuntu 24.04 LTS
-40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airflow
-40°C ~ 85°C (-40°F ~ 185°F)
10% RH ~ 90% RH (non-condensing)
CE, FCC Class A, UKCA, IEC/EN 62368-1
Aluminum Alloy
4 x SMA connector mounting hole
DIN rail, Wall, VESA mounting
1.2kg (2.64 lb)
150 x 106 x 55 mm (5.91 x 4.17 x 2.17 in.)
SBOX-2625-N150
SBOX-2625-N355
SBOX-2625-x7433RE
| SBOX-2625-N150 | Intel® Processor N150 w/ 2x HDMI® / 2 x 2.5GbE / 6 x USB / 2 x COM / DC-IN 9-36V Embedded Computer |
| SBOX-2625-N355 | Intel® Core™ 3 Processor N355 w/ 2x HDMI® / 2 x 2.5GbE / 6 x USB / 2 x COM / DC-IN 9-36V Embedded Computer |
| SBOX-2625-x7433RE |
Intel Atom® x7433RE w/ 2x HDMI® / 2 x 2.5GbE / 6 x USB / 2 x COM / DC-IN 9-36V Embedded Computer |
Made in Taiwan
DDR5-4800 SO-DIMM, 8GB to 16GB
M.2 2242 Key B+M SATA SSD
2.5″ SATA SSD
M.2 2230 Key A-E Wi-Fi module
M.2 3042/3052 Key B WWAN module
AC/DC 100-240V/12V 60W
All specications are subject to change without notice.
Are you seeking a reliable embedded system that delivers high performance with low power consumption at a budget-friendly cost? The SINTRONES embedded system — powered by the Intel® Twin Lake processor, the latest generation of Intel’s Processor N-series — is a choice you’ll never regret. As the successor to the Alder Lake-N lineup, the Twin Lake family introduces two new CPUs: a Quad-core model optimized for ultra-low power consumption and an Octa-core model designed for enhanced performance. These future-ready processors also ensure product availability for up to 10 years, through 2034 — making them ideal for industrial applications that demand extended lifecycle and long-term support. New Quad-Cores, Ultra-Low 6W TDP Built on four efficient cores (E-cores), the Twin Lake N150 achieves superior performance per watt with a thermal design power (TDP) of only 6W — 50% lower than its predecessor, the Alder Lake N97. This low-power design is especially suitable for large-scale system deployments in factory and retail environments. By cutting CPU power consumption in half, organizations can significantly reduce energy usage, lowering total cost of ownership (TCO) over time. Performance Where It Counts For heavier workloads, the Intel® Core™ 3 Processor N355 provides exceptional value with a max turbo frequency of 3.9GHz and GPU clock speeds up to 1.35GHz. The Twin Lake Octa-core CPU delivers a 10% boost in multi-threaded performance compared to the Alder Lake Core™ i3-N305, while maintaining the same efficient power profile. This performance uplift ensures greater efficiency and value without increasing energy consumption. 10-Year Product Longevity Lifecycle Support Launched in early 2025—two years after Alder Lake-N—the Twin Lake series provides product lifecycle support until 2034. With long-term availability and consistent...
Read more
SINTRONES is excited to present the SBOX-2625, an ultra-compact edge computer offering a versatile range of processors — from the mainstream Intel® Twin Lake 4-core N150, to the advanced 8-core Core™ 3 N355, and the industrial-grade Intel® Amston Lake x7433RE — tailored to meet diverse application demands. Optimized Performance, Minimized Power Consumption Integrated with the Intel® Twin Lake N150 featuring an ultra-low 6W TDP, the SBOX-2625 provides superior performance-per-watt efficiency compared to similar edge computers based on the Alder Lake-N series. Achieving the exceptional balance between computing performance and power consumption, this edge computer not only ensures reliable operation but also prolongs hardware lifespan, making it an ideal choice for energy-sensitive and resource-constrained applications across industries. 70% Faster with a More Powerful CPU For models equipped with the industrial-grade Intel® Amston Lake x7433RE processor, the successor to Intel® Elkhart Lake series, the SBOX-2625 supports operating temperature ranging from -40°C to 70°C while achieving up to 1.7× higher performance than comparable systems using the Elkhart Lake x6000 series processors — all at equivalent power consumption. This performance boost enables faster data processing and real-time response, providing minimal latency and seamless integration that are critical for smart automation, edge computing, and industrial IoT applications. 50% Smaller — Engineered for Space Efficiency Intentionally designed to achieve ultra-compact footprint, the SBOX-2625 is nearly half the size of its predecessors. The ultra-slim and fanless design ensures flexible deployment and minimal maintenance in various environments — from industrial control cabinets to retail systems — maximizing versatility and space utilization. Resilient to Power Issues and Data Breaches To ensure fail-safe operation, the SBOX-2625 supports a wide input voltage range (DC 9V to 36V) and incorporates robust safety...
