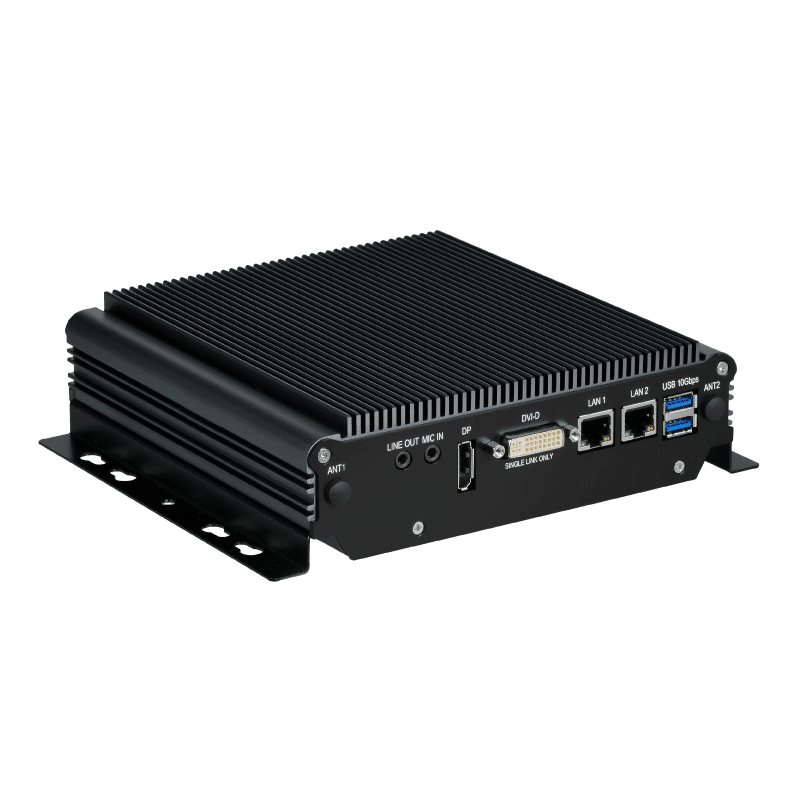

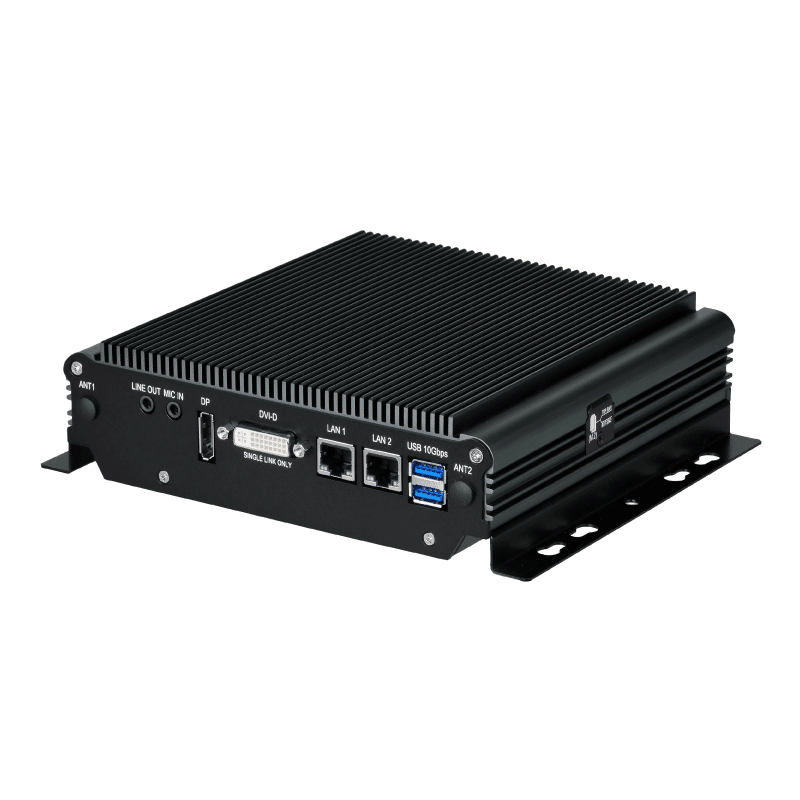

SBOX-2321

Industrial IoT Embedded Computer

Intel Atom® x6416RE Quad-core Processor w/ 2x LAN/ 1x DP / 1x DVI-D/ 2x COM/ DC-IN 9-36V Embedded Computer


Product Status:Sample Available

Features

• Intel Atom® x6416RE Quad-core Processor
• Dual Display Output (1 x DP / 1 x DVI-D)
• 2 x 2.5GbE for Embedded IoT Connection
• 3 x M.2 & 1 x mPCIe Slots for Wi-Fi / WWAN / GPS / CAN Expansion
• Wide Operating Temperature -40 ~ 70°C
• Dual SIM for Network Redundancy
• Industrial Fanless Design







Introduction

The SBOX-2321 is a state-of-the-art embedded computer system, fueled by the robust Intel Atom® x6416RE Quad-core Processor. With dual display output capabilities, including 1 x DisplayPort and 1 x DVI, it promises consistent and efficient computing, tailored for real-time operations pivotal in Industrial IoT setups.

The system is also equipped with 2 x 2.5GbE Ethernet ports, ensuring optimal connectivity, and is TSN (Time-Sensitive Networking) hardware-ready, indicating its preparedness for synchronized operations across devices. Its design also boasts three M.2 and one mPCIe slots, enhancing its versatility for Wi-Fi, WWAN, GPS, and CAN expansions. its reputation as a comprehensive solution for varied industrial needs.


SYSTEM
CPU

Intel Atom® x6416RE Quad-core Processor


Memory

1 x SO-DIMM-260 Socket supports DDR4-3200 up to 32 GB


Graphics

Integrated Intel® UHD up to 16 EUs


Ethernet

2 x Intel® 2.5GbE support 10/100/1000/2500BASE-T (TSN H/W Ready)


Watchdog

1 ~ 255 Level Reset Setting


Security

Infineon® TPM 2.0


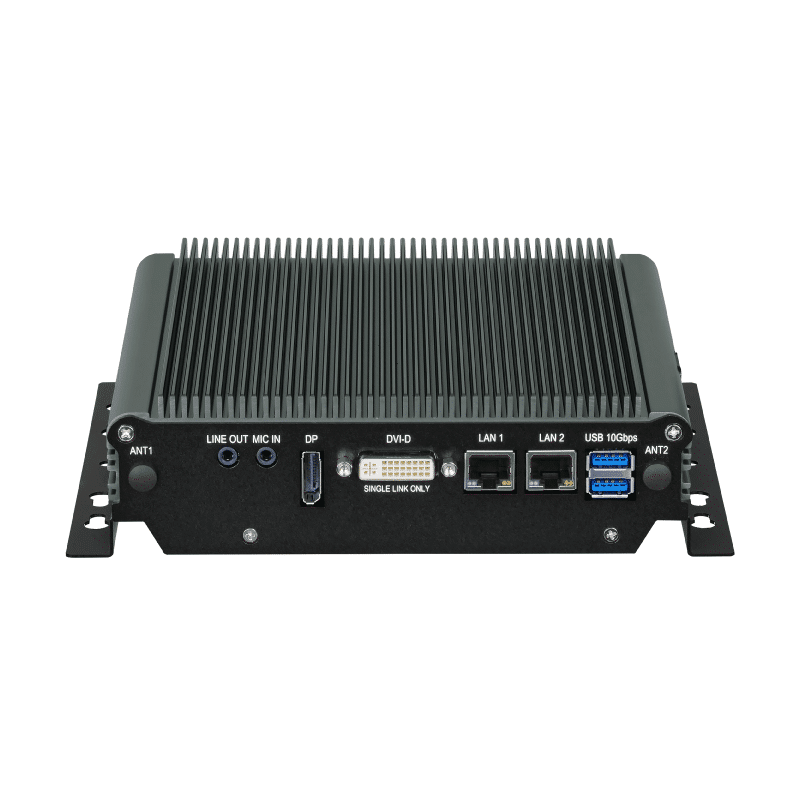

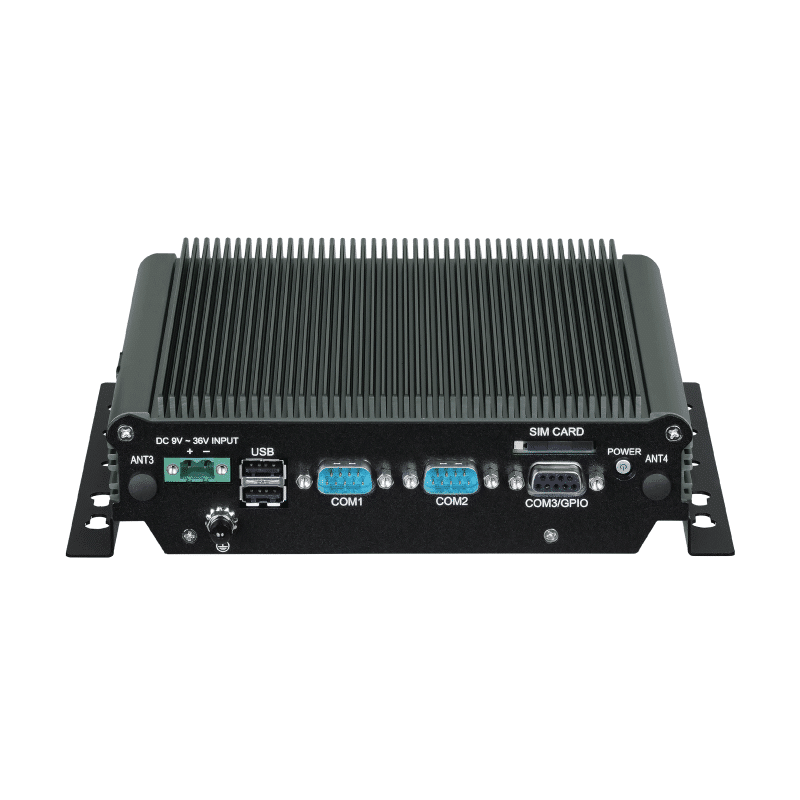

I/O
Ethernet

2 x RJ-45 for 2.5GbE


USB

2 x USB 3.2
2 x USB 2.0


Video Output

1 x DP / 1 x DVI-D (*Single-link cable only)


Audio

2 x 3.5mm TRS Jack for Stereo MIC-in and Line-out


Serial Port

2 x RS-232/422/485 (the 3rd for optional)


GPIO Port

1 x DB-9 for 4 x DI / 4 x DO (5V / 100mA)


Expansion

1 x M.2 2230 Key E Slot
1 x M.2 3042/52 Key B Slot
1 x mPCIe Slot


Telecom Support

2 x SIM Card Slots
4 x Pre-cutting SMA Antenna Holes


SOFTWARE
OS Support

Windows 10 IoT LTSC 64-bit
Windows 11 IoT 64-bit
Ubuntu 22.04 LTS 64-bit


ENVIRONMENTAL
Operating Temp.

– 40 ~ 70°C w/ 0.6m/s Airflow


Storage Temp.

– 40 ~ 85 ºC


Relative Humidity

10% RH ~ 90% RH (Non-condensing)


Certifications

CE, FCC Part-15 Class A


STORAGE
Type

1 x SATA 6Gb/s for 2.5″ SATA storage
1 x M.2 2280 Key M slot for NVMe/SATA SSD


POWER INPUT
DC

9 ~ 36VDC Terminal Block w/ OCP and OVP Protection
(The 9VDC is tested under 60 seconds of the use case.)


MECHANICAL
Construction

Aluminum Alloy


Mounting

Wall-mounting


Thermal Design

Fanless Passive Cooling Design


Weight

1,480g


Dimensions

182 (L) x 171 (W) x 54 (H) mm (w/o Mounting bracket)


Packaging

> 98% of Sustainable/Recyclable Packaging


ORDERING INFORMATION
Part Number

SBOX-2321-zz; zz=A4=Atom x6416RE


Description

Intel Atom® x6416RE w/ 2x LAN/ 1x DP/ 1x DVI-D/ 2x COM/ DC-IN 9-36V Embedded Computer


State of Origin

Made in Taiwan
