IBOX-650P-IP66-2S/DIO

NVIDIA® Jetson AGX Orin™ 64GB
(2048 CUDA® cores GPU + 12-core Arm Cortex-A78AE CPU + 64 GB LPDDR5)

Marvell® Industrial 10GbE, Intel® Industrial 2.5GbE

Platform Security Controller (PSC), Security Engine (SE)

1 x 10GbE, 2 x 2.5GbE w/ 2 x IEEE 802.3at PoE PSE Class 4 (PoE+ 30 watts)
(3 x Phoenix Contact® M12 X-coded connectors)
*M12 X-code cable is not included in the package.

2 x USB Type-A/IP67 connector for USB 3.2

*One port share 10Gbps bandwidth

1 x HDMI® via Type-A w/ IP67

1 x HD Audio output from the HDMI®

2 x M12 for 2 x RS-232/422/485 (1 x COM for DIO model)

2 x M8 A-coded connectors for CAN FD

1 x USB Type-C for System Recovery (Device only)

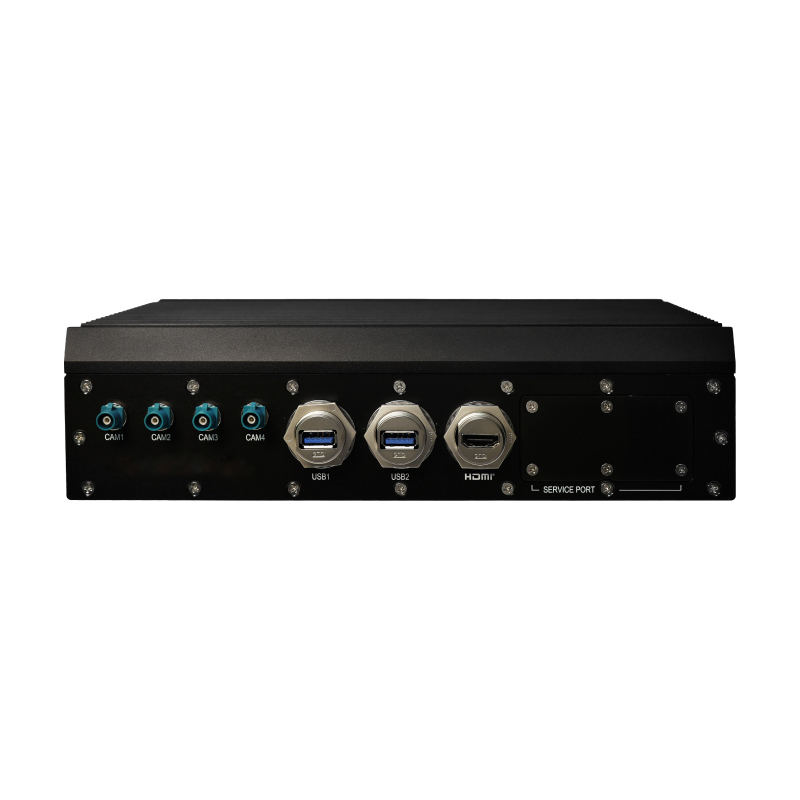

4 x FAKRA-Z connectors for GMSL-2 cameras

1 x Nano SIM card slot

DIO
• 4 x DI, 4 x DO (12VDC/100A)
Analog Input
• 1 x AI (5-60V)
PWM
• 1 x PWM Output (12VDC)

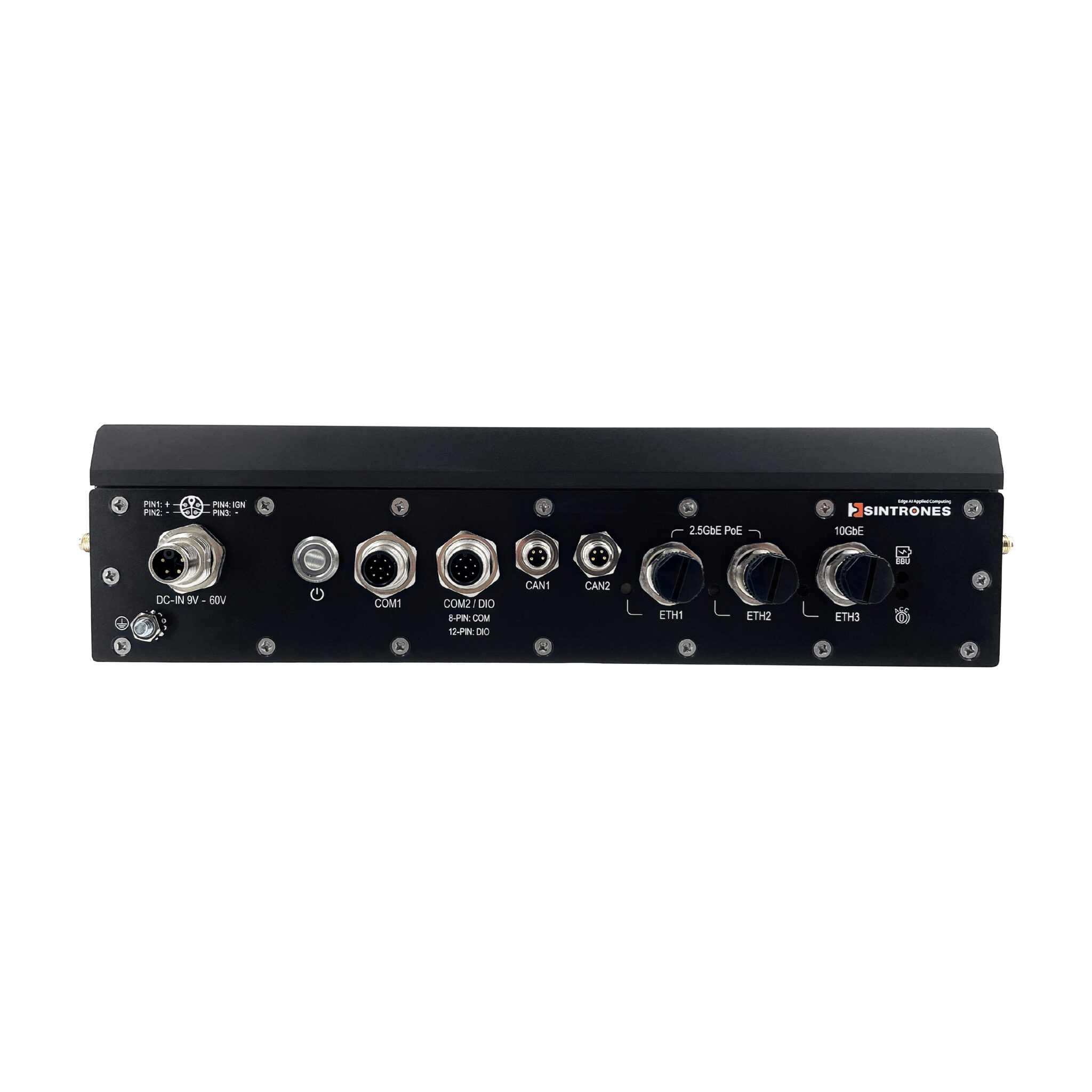

1 x Phoenix Contact® M12 K-coded connector for DC-IN 9~60V

OCP, OVP, Surge and Reversed Polarity Protection

Ignition Detection with Smart Power Management

High-capacity coin cell battery for RTC

Backup battery for system power backup

NVIDIA® JetPack 6.2 or above
(Jetson Linux and NVIDIA® development tools included)

• 1 x M.2 3042/52 Key B slot (USB3.0) with a Nano SIM Card Slot
• 1 x M.2 2230 Key E slot

1 x mPCIe Full size slot (USB.2.0 supported)

• 1 x 64GB eMMC (Built-in within SoM)
• 1 x M.2 2280 Key M slot supports NVMe SSD

Aluminum Alloy

IP66

Fanless Passive Cooling

Wall-mount

5100 g

300 (L) x 190 (W) x 77.5 (H) mm

-25°C ~ 70°C (-13°F ~ 158°F), ambient w/ 0.6m/s airflow

* Operating temp. varies by accessories installed.

-40°C ~ 80°C (-40°F ~ 176°F)

10% RH – 90% RH (non-condensing)

• MIL-STD-810H, Method 514.8, Procedure I, Cat.4 (Operating)
• IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis

MIL-STD-810H, Method 516.8, Procedure I,
Trucks and semi-trailers=15G (11ms) with SSD (Operating)

CE, FCC Class A, E-Mark, ECE R118, EN50155, EN45545-2 (R25)

• IBOX-650P-IP66-2S-01-JAO64｜NVIDIA Jetson AGX Orin 64GB / 1 x 10GbE / 2 x PoE / VDB-101 / 4 x GMSL-2 / 2 x COM
• IBOX-650P-IP66-2S-JAO64-LE｜NVIDIA Jetson AGX Orin 64GB / 1 x 10GbE / 2 x PoE / 2 x COM
• IBOX-650P-IP66-DIO-01-JAO64｜NVIDIA Jetson AGX Orin 64GB / 1 x 10GbE / 2 x PoE / VDB-101 / 4 x GMSL-2 / 4 x DI /4 x DO
• IBOX-650P-IP66-DIO-JAO64-LE｜NVIDIA Jetson AGX Orin 64GB / 1 x 10GbE / 2 x PoE / 2 x COM / 4 x DI / 4 x DO

* The system BSP is pre-installed in the internal 64GB eMMC.

Jetson Orin SoM Lifecycle is available through January 2032.

NVIDIA® Jetson AGX Orin™ w/ 1 x 10GbE / 2 x 2.5GbE / 1 x HDMI / 2 x CAN FD / DC 9-60V / IP66 Edge AI Computer

Made in Taiwan

M.2 2280 NVMe SSD 240GB / 480GB / 960GB / 1920GB

M.2 2230 Wi-Fi Module

M.2 3042/52 WWAN Modem

mPCIe GPS Module

BAT-2300v2 (Operating Temp. : -10°C ~ 60°C (-4°F ~ 140°F))

AC/DC 100-240V/24V 160W C14 DC plug power adapter

USB3.0 Waterproof (M) to USB3.0 (F); cable length: 1000mm

HDMI Waterproof (M) to HDMI (M); cable length: 2000mm

Supported Camera List
