Edge AI Rugged Computer
IBOX-601-M12X

NVIDIA® Jetson Orin NX Fanless Edge AI Computer

• NVIDIA® Jetson Orin™ NX SoM with 1024 CUDA Cores
• 4 x GMSL Cameras Support
• 2 x Ethernet with M12 Connectors
• 1 x CAN FD for Vehicle Connection
• 9-60VDC Input with Built-in Smart Power Management
• –25°C ~ 70°C Operating with Fanless Design
• Optional Backup Battery for Emergency

Status: Available
Conformité Européenne FCC Certification E-Mark Certification EN 50155 Wide voltage Wide temperature Fanless
Inquiry Datasheet
SINTRONES IBOX-601-M12X edge AI computing system with NVIDIA Jetson Orin NX and 4-CH GMSL-2 for real-time video analytics

High-Bandwidth Video Analytics with NVIDIA Jetson Orin and GMSL-2 Interface

The IBOX-601-M12X defines a new standard for high-performance Edge AI Computing, integrating the NVIDIA Jetson Orin NX module to deliver up to 100 TOPS of AI performance. Designed for time-sensitive video analytics, it features four GMSL-2 FAKRA connectors supported by a MAX96724 deserializer, enabling real-time, high-resolution digital video transmission with ultra-low latency over long distances. This architecture is ideal for complex computational tasks in smart traffic systems, robotic devices, and facial recognition, ensuring rapid decision-making at the edge without the need for remote server reliance.

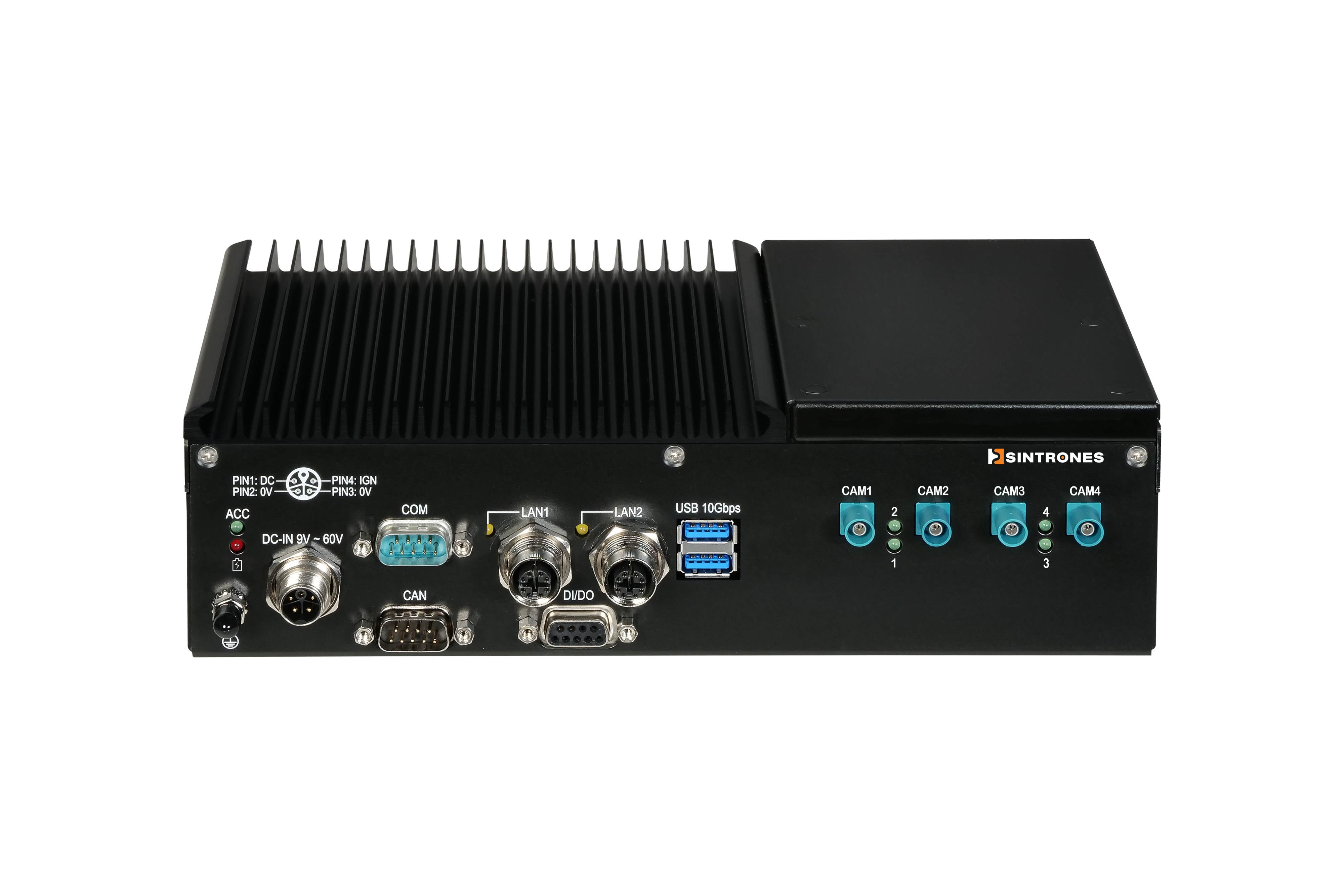

High-bandwidth edge AI computer IBOX-601-M12X featuring 4x GMSL-2 FAKRA camera ports and NVIDIA Jetson Orin NX 100 TOPS module
High-performance edge AI computing hub IBOX-601-M12X deployed in a fleet management center with GMSL-2 camera integration and fanless industrial PC design for real-time video analytics and rolling stock monitoring

Rugged Connectivity and EN 50155 Stability for Mission-Critical Mobility

Engineered for reliable operation in extreme environments, the IBOX-601-M12X is a versatile system perfectly suited to function as a Railway Computer, fleet management center, or industrial automation controller. It is fully certified with EN 50155 and MIL-STD-810G standards, utilizing vibration-proof M12 Connectors for Ethernet and power input to guarantee secure data transmission. The Fanless industrial PC design ensures maintenance-free operation from -25°C to 70°C, while Smart Power Management with ignition detection and an optional UPS backup battery safeguard against power fluctuations in rolling stock and harsh industrial sites.

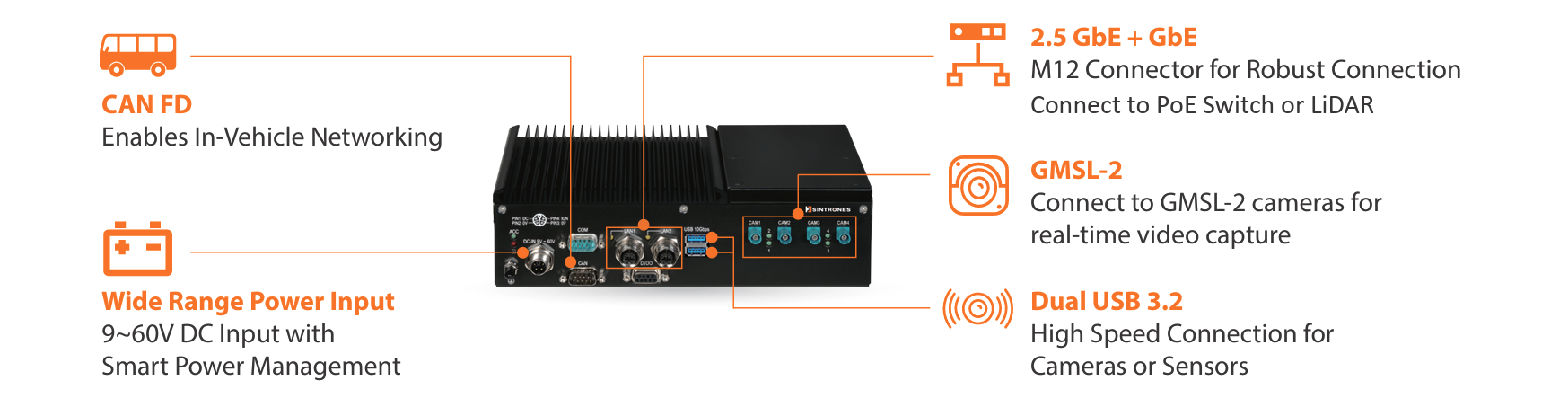

IBOX 601 M12X Edge AI Application

Technical FAQ

Q1: What are the AI computing capabilities of the IBOX-601-M12X for localized analytics?

A: The system utilizes the NVIDIA Jetson Orin NX 16GB module to provide up to 100 TOPS of AI performance. This enables high-speed Edge AI Computing locally, enhancing data security and ensuring real-time responses for mission-critical tasks.

Q2: How does the GMSL-2 interface benefit system installation and video transmission?

A: The GMSL-2 interface supports multi-stream transmission over a single coaxial cable, delivering real-time video, camera power, and bi-directional control signals. This streamlines installation for high-bandwidth applications like smart traffic and robotics.

Q3: Why are M12 Connectors and FAKRA connectors used in this Fanless industrial PC?

A: These connectors are purposely selected for their durability; M12 Connectors ensure secure Ethernet and power links, while FAKRA connectors provide vibration-proof connections for GMSL-2 cameras, meeting MIL-STD-810G requirements.

Q4: Can the IBOX-601-M12X be deployed in railway and rolling stock environments?

A: Yes, the IBOX-601-M12X is a certified system complying with EN 50155 and EN 45545-2 (R25) standards. Its ruggedized, fanless design is specifically tested to withstand the harsh conditions typical of rolling stock operations.

Q5: What are the expandability options for communication and positioning?

A: The device features M.2 and mPCIe slots for installing additional modules such as WWAN (5G/LTE), WLAN (Wi-Fi), and GPS. It also supports one 2.5 GbE and one GbE port, ideal for linking LiDAR instruments and external networks.
