Edge AI Rugged Computer
IBOX-601-G2

NVIDIA® Jetson Orin NX Fanless Edge AI Computer

• NVIDIA® Jetson Orin™ NX SoM with 1024 CUDA Cores
• 4 x GMSL Cameras Support
• 2 x Ethernet with M12 Connectors
• 1 x CAN FD for Vehicle Connection
• 9-60VDC Input with Built-in Smart Power Management
• -25°C ~ 70°C Operating with Fanless Design
•Watchdog for System Monitoring

Status: Available
Conformité Européenne FCC Certification E-Mark Certification EN 50155 Wide voltage Wide temperature Fanless
Inquiry Datasheet
Ultra-compact Edge AI Computer IBOX-601-G2 with NVIDIA Jetson Orin NX and 4x GMSL2 Camera ports for Autonomous Mobile Robot setups.

Ultra-Compact NVIDIA® Jetson Orin™ NX Platform for Space-Constrained AI

The IBOX-601-G2 redefines industrial intelligence by packing up to 100 TOPS of AI performance into an ultra-compact 150 x 135 x 77 mm footprint. Powered by the NVIDIA Jetson Orin NX module, this high-performance embedded computer device is specifically engineered for environments where every millimeter counts. Featuring a robust fanless passive cooling design and aluminum alloy construction, it delivers massive parallel processing power for complex neural networks without the bulk, making it the ideal edge AI computer for next-generation logistics and automation deployments.

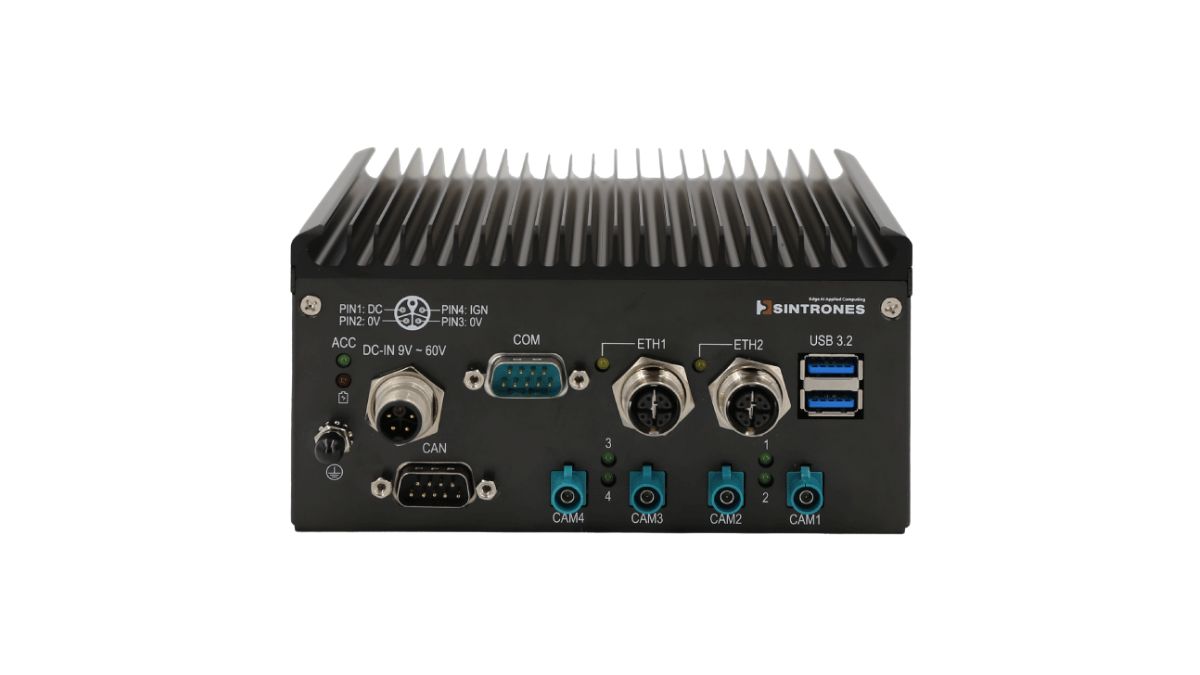

SINTRONES IBOX-601-G2 ultra-compact fanless Edge AI Computer powered by NVIDIA Jetson Orin NX module on a white background.
An Autonomous Mobile Robot navigating a smart factory floor, utilizing the IBOX-601-G2 Embedded Computer device as an AMR Controller with GMSL2 Camera connectivity.

Advanced GMSL2 Camera Integration for Autonomous Mobile Robots

Designed as the ultimate vision processing hub for autonomous robotics, the IBOX-601-G2 features 4 x FAKRA ports supporting low-latency GMSL2 camera configurations. This high-bandwidth imaging capability makes it the premier choice for deploying an agile AMR controller, where real-time obstacle detection and 360-degree situational awareness are mandatory for any autonomous mobile robot. Despite its miniature dimensions, it maintains rugged DNA with secure M12 connectors for 2.5GbE networking, wide-voltage input (9-60V), and dual wireless expansion via M.2 slots for seamless 5G and GPS synchronization.

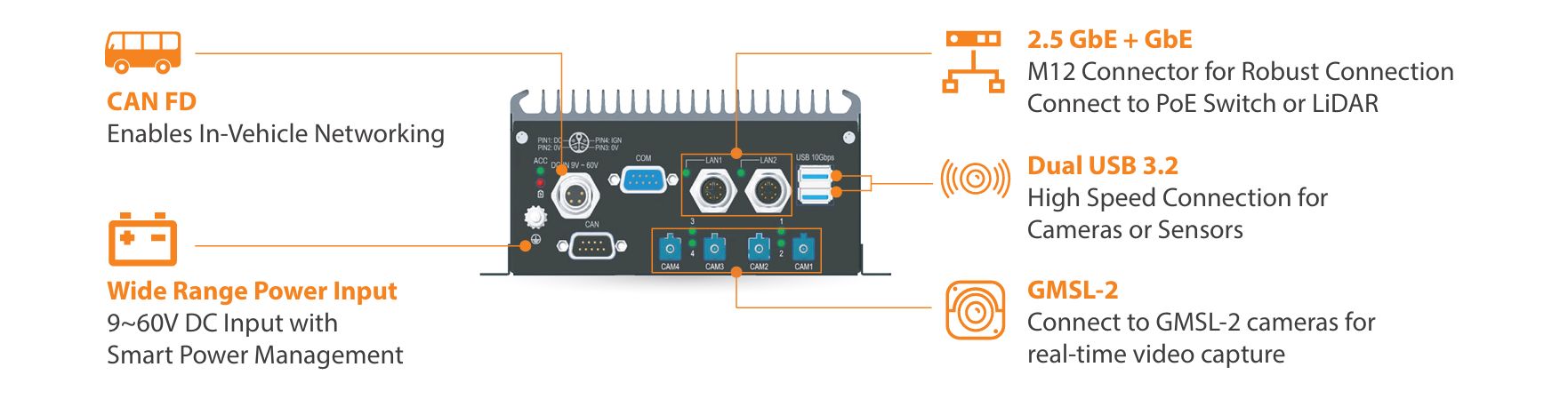

Ibox 601 G2 Edge Ai Application

Technical FAQ

Q1: What makes the IBOX-601-G2 different from larger Orin NX platforms?

A: The IBOX-601-G2 focuses on an ultra-compact form factor. By optimizing the hardware layout for agility and removing internal UPS components, it strips away excess weight and volume, making it an ideal embedded computer device for small mobile platforms like last-mile delivery robots.

Q2: Why is the IBOX-601-G2 highly sought after as an AMR controller?

A: As an AMR controller, it offers the perfect balance of 100 TOPS processing power and native 4-channel GMSL2 camera support via FAKRA connectors, allowing an autonomous mobile robot to execute real-time SLAM and path planning seamlessly.

Q3: Can this edge AI computer survive harsh industrial and vehicle environments?

A: Yes. This rugged system features a wide operating temperature range (-25°C to 70°C) and complies with MIL-STD-810G standards for shock and vibration. It also holds E-Mark and EN 50155 certifications, ensuring high reliability in transport and warehouse automation.

Q4: How does the system handle rugged networking for autonomous mobile robot?

A: It is equipped with secure M12 connectors for 2.5GbE and GbE LAN, preventing cable disconnects caused by constant robotic motion, while internal M.2 slots expand high-speed 5G/LTE and precision GPS connectivity.

Q5: Does this fanless passive cooling design require external airflow?

A: The system is optimized for efficient heat dissipation through its aluminum alloy chassis. For peak performance in extreme environments, an ambient airflow of 0.6 m/s is recommended to ensure reliable 24/7 edge AI computer operations.
