Edge AI Rugged Computer

IBOX-650P-IP66-T1

NVIDIA® Jetson AGX Orin™ 64GB

(2048 CUDA cores + 12-core ARM Cortex-A78AE CPU + 64 GB LPDDR5)

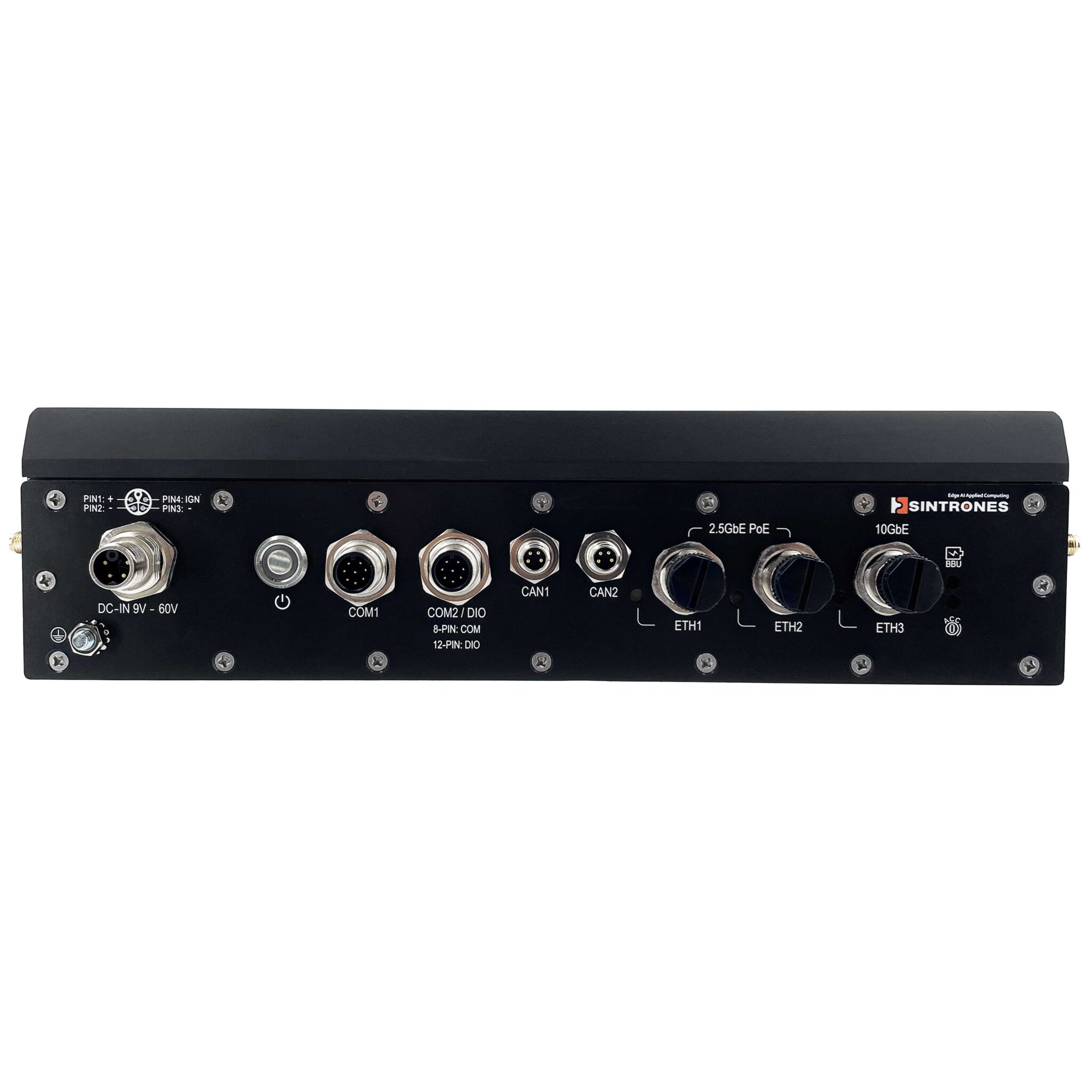

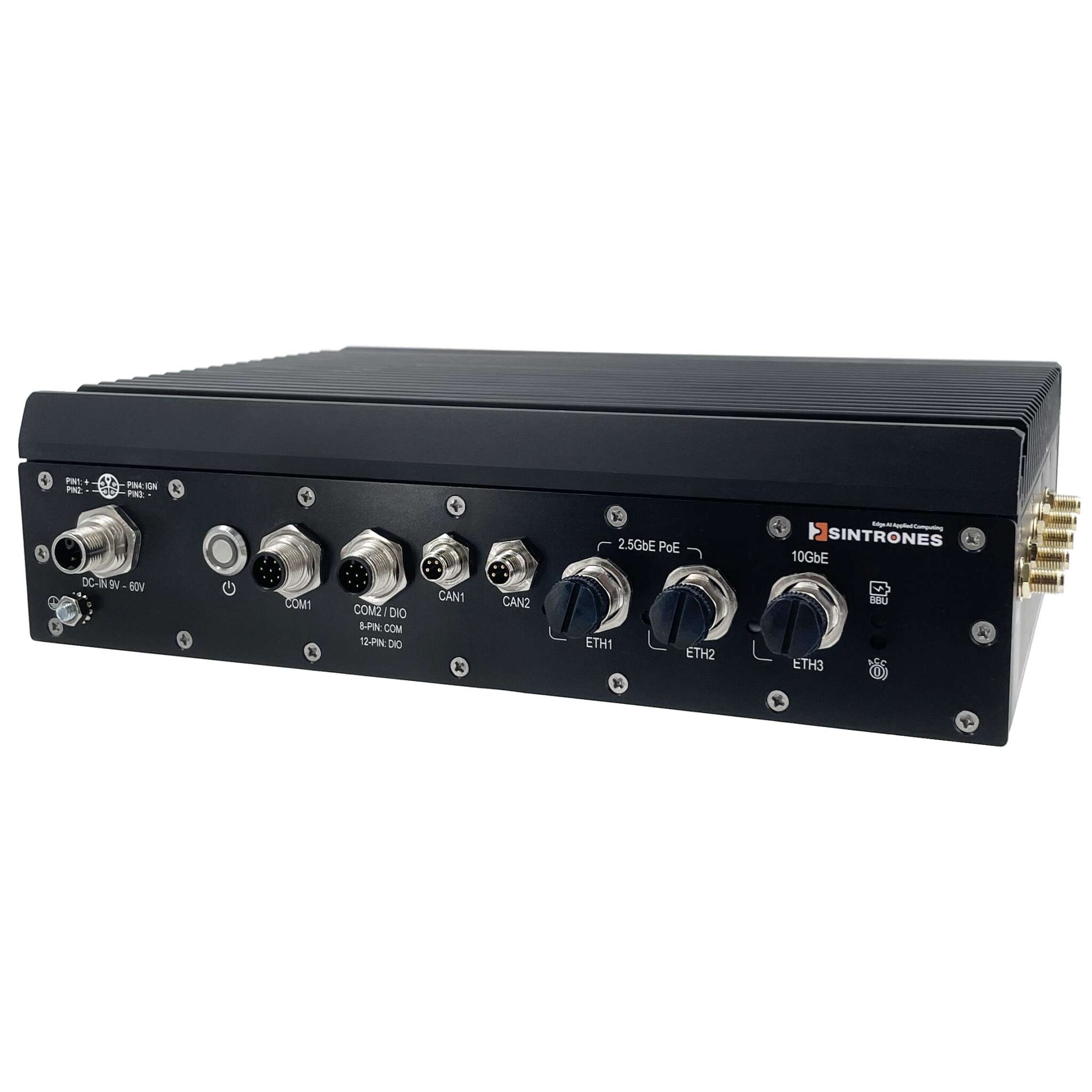

1 x Marvell® SPE, 1 x Marvell® Industrial 10GbE, 2 x Intel® 2.5GbE

Platform Security Controller (PSC), Security Engine (SE)

The self-reset mechanism for unresponsive system

1 x HDMI®

1 x HD Audio from the HDMI®

1 x 100/1000 SPE, 1 x 10GbE, 2 x 2.5GbE w/ 2 x IEEE 802.3at PoE PSE Class 4

(PoE+ 30 watts)

*1 x Phoenix Contact® IEC 63171-5 connector, 3 x Phoenix Contact® M12 X-coded connectors

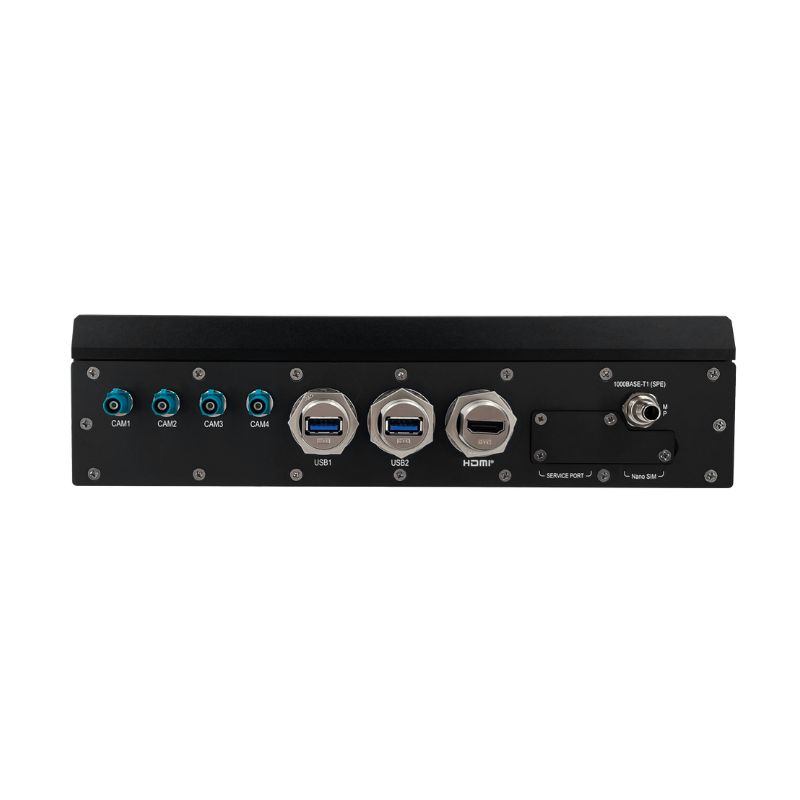

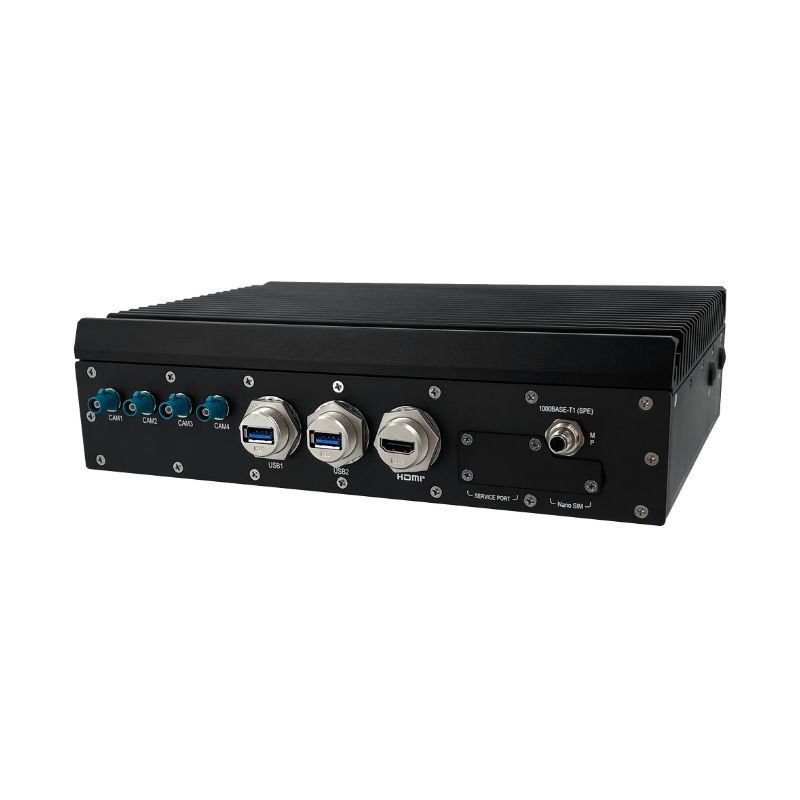

4 x GMSL-2 via FAKRA connectors

2 x CAN FD via M8 connectors

2 x USB 3.2 via USB Type-A / IP67

4 x DI, 4 x DO (12VDC/100A) via M12 connector

1 x Analog Input (5-60V)

1 x PWM Output (12VDC)

1 x RS-232/422/485 via M12 connector

1 x USB type-C for system recovery (device only)

7 x Antenna holes

1 x M.2 3042/52 Key B supports WWAN w/ a Nano SIM

1 x M.2 2230 Key E supports Wi-Fi/BT

1 x mPCIe Full-size (USB 2.0 supported)

1 x Internal 64GB eMMC (Pre-installed system BSP)

1 x M.2 2280 Key M supports NVMe SSD

DC 9V-60V for 12/24/48V via M12 K-coded connector (Phoenix Contact®)

OCP, OVP, Surge Protection, and Reversed Polarity Protection

Supports Smart Power Management

High-capacity coin cell battery for RTC

Backup battery for system power backup

NVIDIA® JetPack 6.2 or above

(Jetson Linux and NVIDIA® development tools included)

-25°C ~ 70°C (-13°F ~ 158°F), with SSD,

ambient w/ air  ow 0.6m/s (ONX8 model)

-40°C ~ 80°C (-40°F ~ 176°F)

10% RH – 90% RH (non-condensing)

Random – IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis

MIL-STD-810H – Method 514.8, Procedure I, Category 4

MIL-STD-810H – Method 516.8, Procedure I,

trucks and semi-trailers=15G (11ms) with SSD

Aluminum Alloy

Wall-mount

5.30 kg

300 (L) x 190 (W) x 77.5 (H) mm (11.9 x 7.5 x 3.06 inch)

IP66

• IBOX-650P-IP66-T1-JAO64 NVIDIA®Jetson AGX Orin™ 64GB / 1 x T1 / VDB-101 / 4 x GMSL-2 / 2 x PoE / 1 x 10GbE

* The system BSP is pre-installed in the internal 64GB eMMC.

Jetson Orin SoM Lifecycle is available through January 2032.

NVIDIA® Jetson AGX Orin™ 64GB SoM w/ 1 x T1 / 1 x 10GbE / 2 x 2.5GbE / 2x PoE / 4 x GMSL-2 / 2 x CAN FD / DC 9-60V / Edge AI Computing

Made in Taiwan

M.2 2280 NVMe SSD 240GB / 480GB / 960GB / 1920GB

M.2 2230 Wi-Fi Module

M.2 3042/52 WWAN Modem

mPCIe GPS Module

BAT-2300v2 (Operating Temp. : -10°C ~ 60°C (-4°F ~ 140°F))

AC/DC 100-240V/24V 160W C14 DC plug power adapter

USB3.0 Waterproof (M) to USB3.0 (F); cable length: 1000mm

HDMI Waterproof (M) to HDMI (M); cable length: 2000mm

SPE IEC 63171-5 IP67 Cable F-F; cable lenght: 2000mm

Supported Camera List
