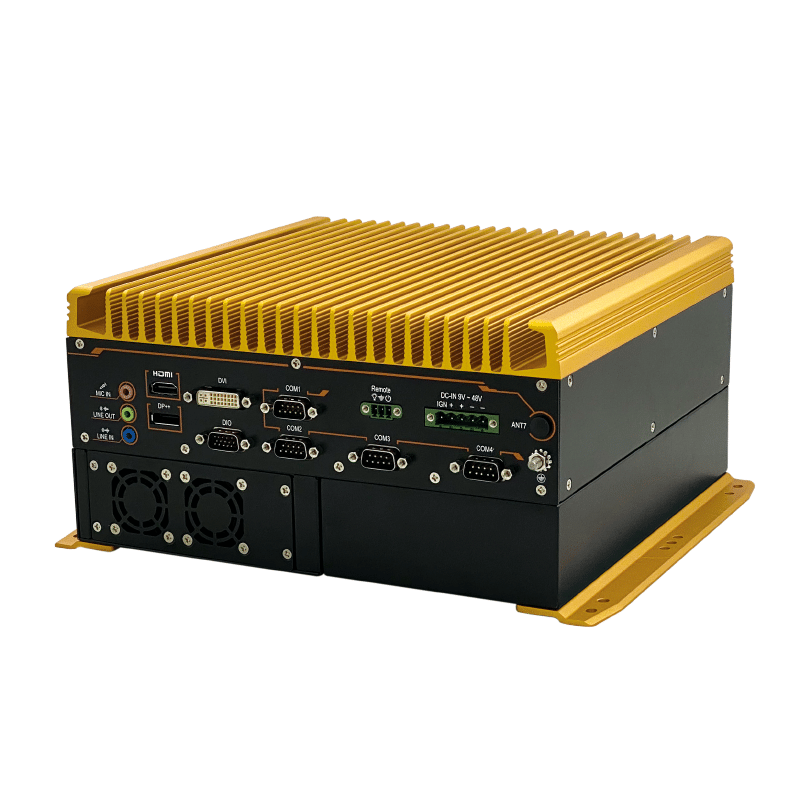

EBOX-7000

Edge AI GPU Industrial Computer

Intel 9th Gen Core i7/ Intel 8th Gen Core i7/i5/i3 CPU w/ 6 x RJ45 GbE (optional 4 x PoE Max. 100W) / 4 x COM / 1 x DP/ 1 x HDMI®/ 1 x DVI-I/ 4 x USB 3.2 Gen 1x1/ 9-48V Edge Computing

Product Status: Available
Features
  • Intel 9th Gen Core i7/ Intel 8th Gen Core i7/i5/i3
  • 1 x PCIe 3.0 x16 Interface Expansion (optional 2 x PCIe 3.0 x8 Interface)
  • 6 x RJ45 GbE (optional 4 x PoE Max. 100W)
  • 8 x DI, 4 x DO and 2 x RS-232/422/485
  • 1 x DP + 1 x HDMI® + 1 x DVI-D (Single Link w/o Analog Video)
  • Dual Hot Swappable SATA Storage RAID 0,1,5
  • 9-48V DC Input and Operating Temp.: -40~70°C
  • TPM 2.0
Introduction

The EBOX-7000 Edge Computing is suitable for various factory automation and Industrial Internet of Things (IIoT) control systems in large-scale processes such as machine vision, mining, and manufacturing. It is powered by Intel 9th Gen Core i7/ Intel 8th Gen Core i7/i5/i3 CPU with 6 x RJ45 GbE (optional 4 x PoE Max. 100W). EBOX-7000 features TPM 2.0 and memory 2 x DDR4 2400/2666 MHz SO-DIMM up to 64GB. Furthermore, the environmental tolerance continually maintains a wide range of operating temperatures (-40 ~ 70 ºC). In addition, it provides Intel® UHD Graphics 630 with max resolution (HDMI®): 4096×2304@24Hz.

System
Processor

Intel Gen9 Core i7-9700TE (12M Cache 1.8GHz up to 3.8GHz)
Intel Gen8 Core i7-8700T (12M Cache 2.4GHz up to 4.0GHz)
Intel Gen8 Core i5-8500T (9M Cache 2.1GHz up to 3.5GHz)
Intel Gen8 Core i3-8100T (6M Cache 3.1GHz)
Intel Gen8 Celeron G4900T (2M Cache 2.9GHz)

Memory

2 x DDR4 2400/2666 MHz SO-DIMM up to 64GB

Watchdog

1 ~ 255 Level Reset

TPM

2.0

Graphics
Graphics Engine

Intel® UHD Graphics 630 for i7/i5/i3, Intel® UHD Graphics 610 for G5900T

HDMI®

1

Display Port

1

DVI

1 x DVI-I
(Single Link w/o Analog Video)

Resolution

(DP 1.2) : 4096 x 2304@60Hz
(HDMI® 1.4b) : 4096 x 2304@24Hz

AUDIO
Line-out

1

Line-in

1

Line-out

1

ETHERNET
LAN Chipset

5 x Intel i210-AT
1 x i219 (iAMT9.5 w/ i5, i7 only) Gb/s Ethernet Controllers Onboard Support PXE and WOL

LAN

6 x RJ45 GbE

PoE

Optional 4 x PoE Max. 100W

I/O
Serial Port

4 x RS 232/422/485 (Auto Direction Control)

USB

4 x USB 3.2 Gen
1 x 1 Ports

DIO

8 x DI (5~48VDC)
4 x DO (5VDC, 100mA)

Storage
SSD/HDD

Hot Swappable 2 x 2.5” Drive Bay for SATA Type HDD/SSD RAID 0, 1, 5 w/ External Accessibility via USB 3.2 Gen 1×1 when removed Patent No. : M601447 – Removeable Storage Device

M.2

1 x M.2 M key 2280 slot supports NVMe and SATA SSD *Thermal heatsink is required for M.2 storage. Please contact sales window for more information.

EXPANSION
PCIe

Riser card w/ 1 x PCIe x 16 slot
(1 x PCIe 3.0 x16 interface w/ 1 x ATX 6 Pin Power Output)
Optional riser card w/ 2 x PCIe x16 slot (2 x PCIe 3.0 x8 interface w/ 1 x ATX 6 Pin Power Output)
*Supports up to 185mm in length and 112mm in height PCIe cards
*Maximum power supply from PCIe slot and ATX 6 pin combined @ 150W when DC power source is above 15V
*DC 15V or above power source is suggested when graphics cards are installed

Mini PCIe

2 x Full Mini-PCle Slots

M.2

1x M.2 A-E Key 2230 slot, 1 x M.2 B Key 3042 slot w/ 2 x SIM Card Sockets for WWAN
Patent No. : M592609 – Automatic SIM Card Detection

power
Power Input

9V – 48V DC Power Input

Power Protection

Automatics Recovery Short Circuit Protection

Power Management

Vehicle Power Ignition for Variety Vehicle

Power Off Control

Power off Delay Time Setting by BIOS and Software

Battery (UPS)

Internal Battery Kit for 10 Mins Operating
(Optional and cannot be installed with PoE module)
*UPS backup time varies depending on actual overall system power consumption. Patent No. : M447854 – Build-in Battery

Mechanical
Dimensions

260(L) x 250(W) x 137(H) mm

Construction

Aluminum Alloy

Weight

7600g (Barebone)

Mounting

Wall-mount

ENVIRONMENT
Relative Humidity

10% RH – 90% RH (non-condensing)

Operating Temp.

-40°C ~ 70°C, with SSD and ambient w/ air flow 0.6m/s
(System only, not including PCIe cards)

-20°C ~ 60°C with BAT-5200-E1 Battery Kit
*Operating temp. spec of PCIe cards installed affects overall system operating temp. spec

Storage Temp.

-40°C ~ 80°C

Certification
Certification

CE, FCC Class A, RoHS (Self declaration)

Operating Information
Part Number

EBOX-7000xyy-zz (x= P= w/PoE, x= Empty= w/o PoE, yy= E1= w/1 x PCIe x16 interface, yy= E2= w/2 x PCIe 3.0 x8 interface, zz= i7R= i7-9700TE, zz= i7= i7-8700T, zz= i5= i5-8500T, zz= i3= i3-8100T, zz= C1= G4900T)

Description

Intel 9th Gen Core i7/ Intel 8th Gen Core i7/i5/i3 CPU w/ 6 x RJ45 GbE (optional 4 x PoE Max. 100W) / 4 x COM / 1 x DP/ 1 x HDMI®/ 1 x DVI-I/ 4 x USB 3.2 Gen 1×1/ 9-48V Edge AI GPU Computing

State of Origin

Made in Taiwan

Optional Accessories
DRAM

DDR4-2933 MHz SO-DIMM, 4GB~32GB, 0~70°C/-40~85°C

SSD

M.2 2280 B-M key NVMe TLC -40~85°C 64GB~1TB w/ Heatsink
M.2 2280 B-M key SATA TLC -40~85°C 64GB~1TB w/ Heatsink
2.5 inch SATA TLC -40~85°C 64GB~2TB

PCIe Graphics Card

GTX 1650 4GB GDDR5 w/ 1 x DP1.4a, 1x HDMI® 2.0b, and 1x DVI-D Dual Link

Wi-Fi

WiFi M.2 2230 A-E key module

Modem

M.2 3042 B key 5G&LTE module

GPS

MiniPCIe GPS module

CAN Bus

MiniPCIe CAN Bus module

Battery backup kit

BAT-5200-E1 Battery Kit, 5200m/h, -30~60°C, discharge -20~60°C, operating about 10 mins

External Cable

280W/24V power adapter
