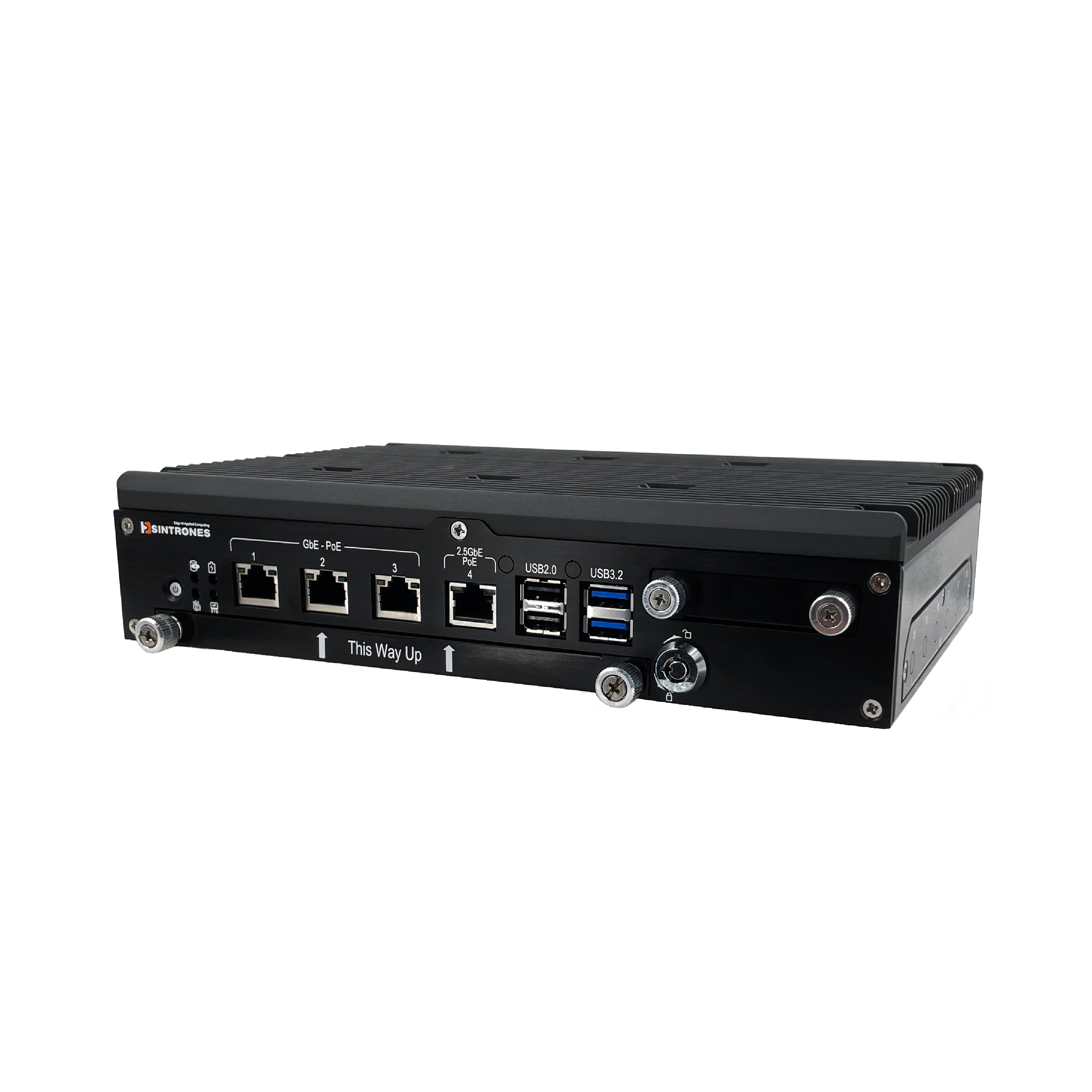

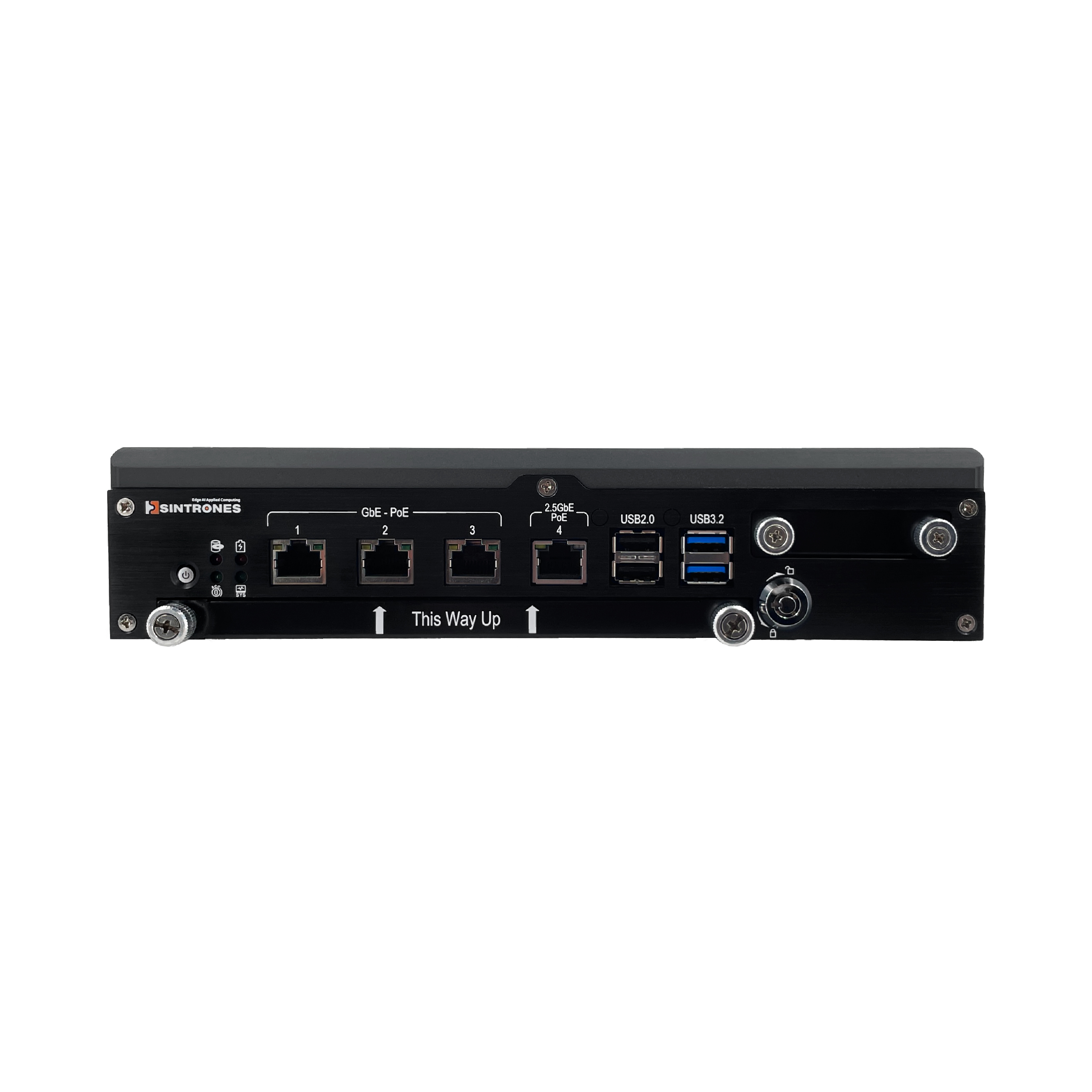

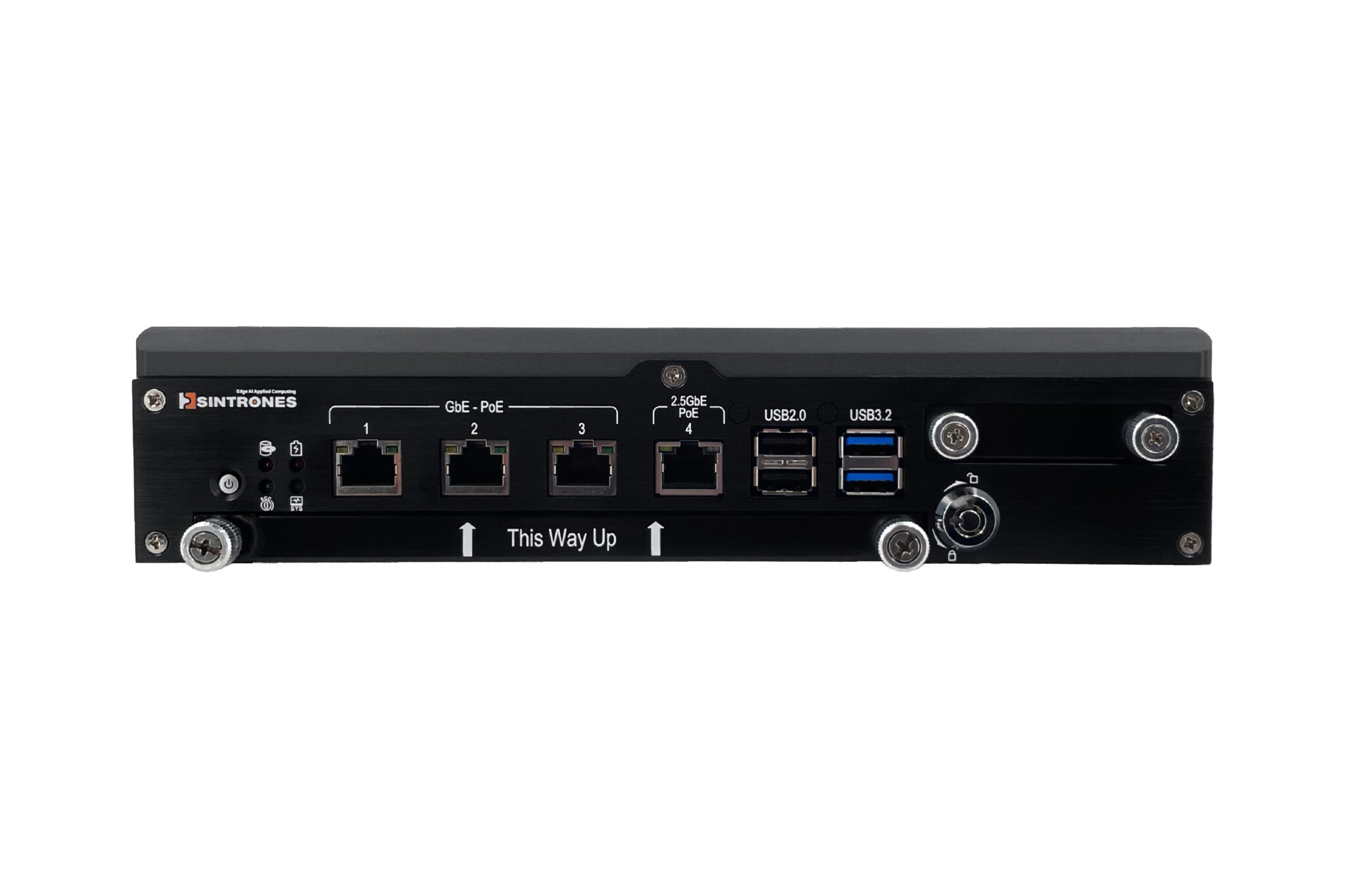

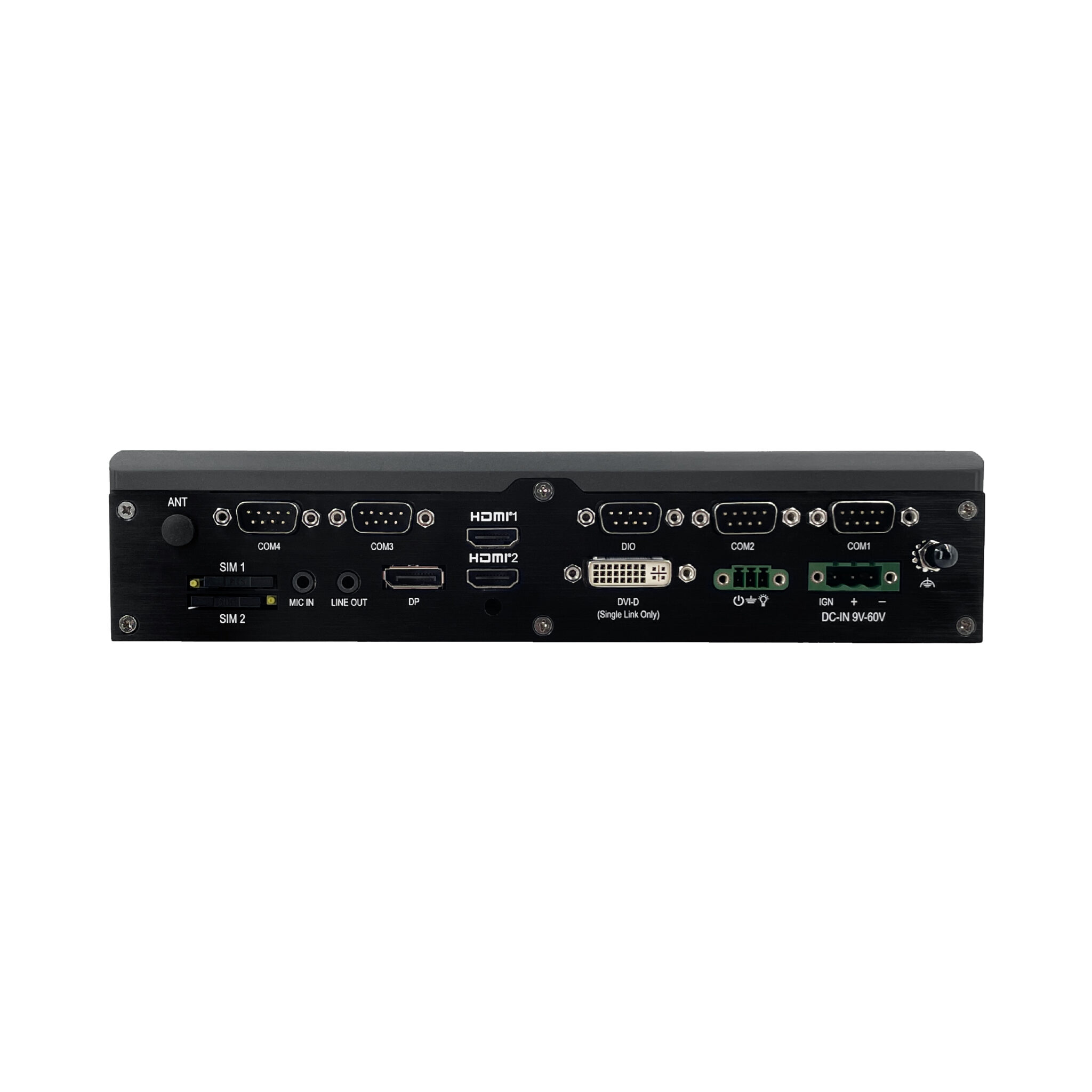

In-Vehicle Rugged Computer

VBOX-3650(P)-(M12X)

• Intel® Core™ Ultra X9 Processors 388H up to 5.1 GHz (P-Core)
• Intel® Core™ Ultra 7 Processors 366H up to 4.8 GHz (P-Core)
• Intel® Core™ Ultra 5 Processors 336H up to 4.6 GHz (P-Core)
*4 x P-core + 8 x E-core + 4 x LP E-core for Ultra X9 388H and Ultra 7 366H
*4 x P-core + 4 x E-core + 4 x LP E-core for Ultra 5 336H
**Processor Base Power (TDP) is limited at 25W

• Intel® Arc™ B390 GPU for Ultra X9 388H
• Intel® Graphics for Ultra 7 366H and Ultra 5 336H

2 x DDR5-7200 SO-DIMM up to 128 GB (In Band ECC Support)

1 x TPM 2.0 (Comply with FIPS 140-3)

Auto reset for unresponsive system

1 x HDMI® with support for 8K@60Hz as specified in HDMI 2.1

1 x Line-out, 1 x Mic-in

• 1 x 2.5GbE from Intel I226-LM via RJ-45 or M12 X-code
• 3 x GbE from Intel I210-AT via RJ-45 or M12 X-code
*Optional SKU for 4-port PoE
**PoE supports 15.4W per-port with a total power budget: 60W

2 x USB 3.2, 2 x USB 2.0

6 x DI (0-60VDC), 4 x DO (12VDC/100mA)

4 × COM support RS-232/422/485 ports (3 x COM for M12 model)

1 x Standby Control via 3-pin terminal block

• 2 x M.2 3042/3052* Key B for WWAN with dual Nano SIM support
• 1 x M.2 2230 Key E for Wi-Fi/BT
* One slot share with one Mini PCIe

2 x Mini PCIe* (full-size w/ USB 2.0 only)
* One slot share with one M.2 3042/3052

• 1 x M.2 2242/2260/2280 Key M for NVMe SSD

• 1 x Removable tray for dual 2.5″” SATA SSD
  * Support RAID 0,1

DC 9-60V (nominal power input DC 12V/24V/48V) via 3-pin terminal block or M12 K-code

2 x DC 12V/1A via DB-15

OCP, OVP, surge protection, reversed polarity protection

Ignition detection, Smart Power Management

Removable front tray for RTC coin cell battery

• Optional battery kit for up to 5 minutes of emergency backup time
(Battery charging Temp. 0°C ~ 45°C and discharging Temp. -10°C ~ 60°C)
* BBU backup time varies depending on actual overall system power consumption and battery is required to be charged before being used for system power backup
** Operating temperature will be limited within -10°C and 50°C with the battery kit installed.

Windows 11 IoT Enterprise LTSC, Ubuntu 24.04 LTS or above

-40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airflow
*Operating temperature varies by accessories installed.

-40°C ~ 80°C (-40°F ~ 176°F)

10% RH – 90% RH (non-condensing)

• IEC 60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
• MIL-STD-810H, Method 514.8, Procedure I, Category 4

MIL-STD-810H, Method 516.8, Procedure I, trucks and semi-trailers=15G (11ms)

Aluminum Alloy with Fanless Design

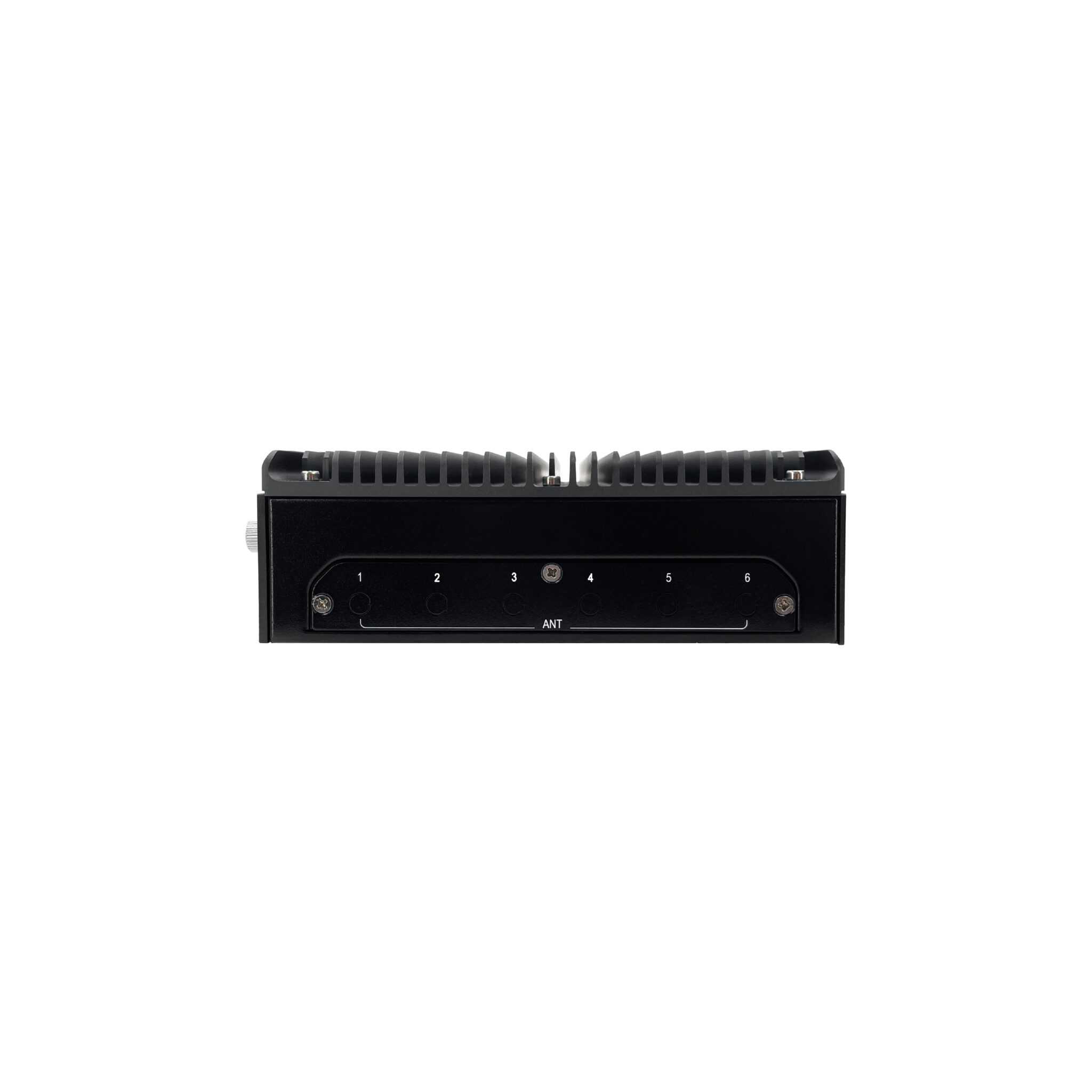

7 x SMA connector panel mount hole

Wall mounting

• RJ-45 model: TBDkg (TBD lb)
• M12 model: TBDkg (TBD lb)

250 x 160 x x 55 mm (9.85 x 6.30 x 2.17 in.)

VBOX-3650(P)(-M12X)-zzz-zzzzz (P=w/ PoE, M12X=w/ M12 X code connectors
zzz-zzzz=UX9-388H=Intel® Core™ Ultra X9 Processor 388H
zzz-zzzz=U7-366H=Intel® Core™ Ultra 7 Processor 366H
zzz-zzzz=U5-336H=Intel® Core™ Ultra 5 Processor 336H

Intel® Core™ Ultra Series 3 Edge AI Computer

Made in Taiwan

DDR5 SO-DIMM 8/16/24GB, -40°C ~ 85°C

M.2 2280 NVMe SSD 256GB~2TB, -40°C ~ 85°C

M.2 2230 Wi-Fi module, -40°C ~ 85°C

M.2 3042/3052 WWAN module, -40°C ~ 85°C

• M.2 2242 Key B GNSS module, -40°C ~ 85°C
• Mini PCIe GNSS module, -40°C ~ 85°C

• M.2 3042 Key B CAN module
• Mini PCIe CAN module, -40°C ~ 85°C

BAT-2300v2 (Operating Temp. : -20°C ~ 60°C (-4°F ~ 140°F)

24VDC, 160W
