Intel® Pentium® / Celeron® Processor In-Vehicle Computer with 9~36V DC Input
Features
Introduction

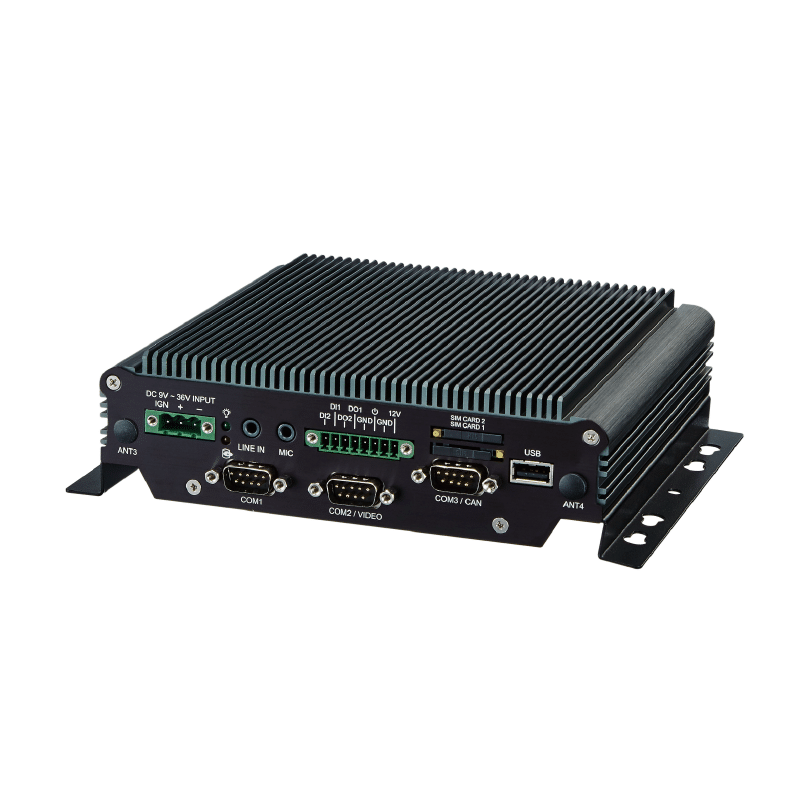

The VBOX-3130 is an in-vehicle computer that is powered by Intel® Pentium® Processor with 9~36V DC power input. It provides 3 x RS-232 (COM1 & COM2 with RS-232/422/485) serial I/O port. VBOX-3130 is designed for fleet management, mobile DVR, driver behavior records,s and in-vehicle digital signage. It features Smarter Vehicle Power Ignition for a variety of vehicles. VBOX-3130 can effectively support vehicles in bad weather and extreme working conditions, such as snowplows, train, and stacker operations. Moreover, VBOX 3130 features a power-off control with a delay time set via software (default is 5 minutes).
System
Processor
Intel® N3710 Quad Core CPU up to 2.56GHz
Intel® N3160 Quad Core CPU up to 2.24GHz
Intel® N3060 Dual Core CPU up to 2.48GHz
Chipset
N/A
Memory
1 x DDR3L-1600 SO-DIMM up to 8GB
Watchdog
1 ~ 255 level reset
TPM
N/A
GRAPHICS
Graphics Engine
Intel HD Graphics
HDMI®
1
DisplayPort
N/A
DVI-I
1 (Use only with Single Link DVI Cables.)
VGA
N/A
Resolution
N/A
AUDIO
Audio Codec
N/A
Line-out
1
Mic-in
1
Line-in
N/A
ETHERNET
LAN Chipset
2 x Intel i210-AT Gigabit Ethernet
LAN
2 x RJ45 Ports for GbE
PoE
N/A
I/O
Serial Port
3 x RS-232 (COM1 & COM2 with RS-232/422/485 [Optional Max 4 x RS-232/422/485])
USB
2 x USB 3.0, 1 x USB 2.0
DIO
N/A
AIO
N/A
GPIO
2 In and 2 Out (12V / 100mA)
SIM Socket
2 x SIM Card Sockets Supported Onboard with eject
* Use only with Single Link DVI Cables.
Antenna
4 x SMA-type External Antenna Connectors for LTE / WLAN /
UMTS / GSM / GPRS / GPS / Bluetooth
STORAGE
SSD/HDD
1 x 2.5” Drive Bay for SATA Type Hard Disk Drive/SSD
SATA
1 x SATA DOM
EXPANSION
Mini-card
3 x Mini-card Slots
POWER
Power Input
9V – 36V DC Power Input
Power Protection
N/A
Smart Ignition
Vehicle Power Ignition for Variety Vehicle
Power-off Delay Control
Power off Delay Time Setting by BIOS and Software
Backup Battery Solution
Internal Battery Kit for 10 Mins Operating (Optional)
*UPS backup time varies depending on actual overall system power consumption. Patent No. : M447854 – Build-in Battery
MECHANICAL
Dimensions
182(L) x 167.6(W) x 54(H) mm
Weight
1406 g
Construction
Aluminum Alloy
Mounting
Wall-mount, VESA-mount, Din Rail Mounting Kit
ENVIRONMENT
Relative Humidity
10% RH – 90% RH (non-condensing)
Operating Temp.
-40°C ~ 70°C (SSD), ambient w/ 0.6m/s airflow
Storage Temp.
-40°C ~ 80°C
Vibration & Shock
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers=15G (11ms) with SSD
IP Rating
N/A
CERTIFICATION
CERTIFICATION
CE, FCC Class A, E-Mark
Safety
N/A
Patent
Patent No. : M447854 – Build-in Battery
OPERATIONAL SYSTEM
Windows
WES 7, Windows*
*The supported version depends on the Microsoft® announcement.
Linux
Ubuntu 16.04
ORDERING INFORMATION
Part Number
VBOX-3130-NX (X= 0= w/N3060 , X= 1= w/N3160 , X= 2= w/N3710)
Description
Intel Braswell N-Series Atom CPU In-Vehicle Computer with 9~36V DC Input In-Vehicle Computer
State of Origin
Made in Taiwan
Optional Accessories
DRAM
SO-DIMM max.DDR3L 1600, 2GB~8GB,0~70oC/-40~85oC
SATA SSD
2.5inch MLC/TLC 64GB~1TB 0~70oC/-40~85oC
SATA DOM
MLC 8GB~128GB, 0~70oC/-40~85oC
Wifi
Wifi miniPCIe half size card 802.3a/b/g/n/ac
Modem
LTE miniPCIe card
GPS
GPS miniPCIe card
Battery backup kit
BAT-3000 kit, 1150mAH 3S1P Battery kit (-30~60oC)
Power adapter
Power Adapter 12V/5A 60W Jack
