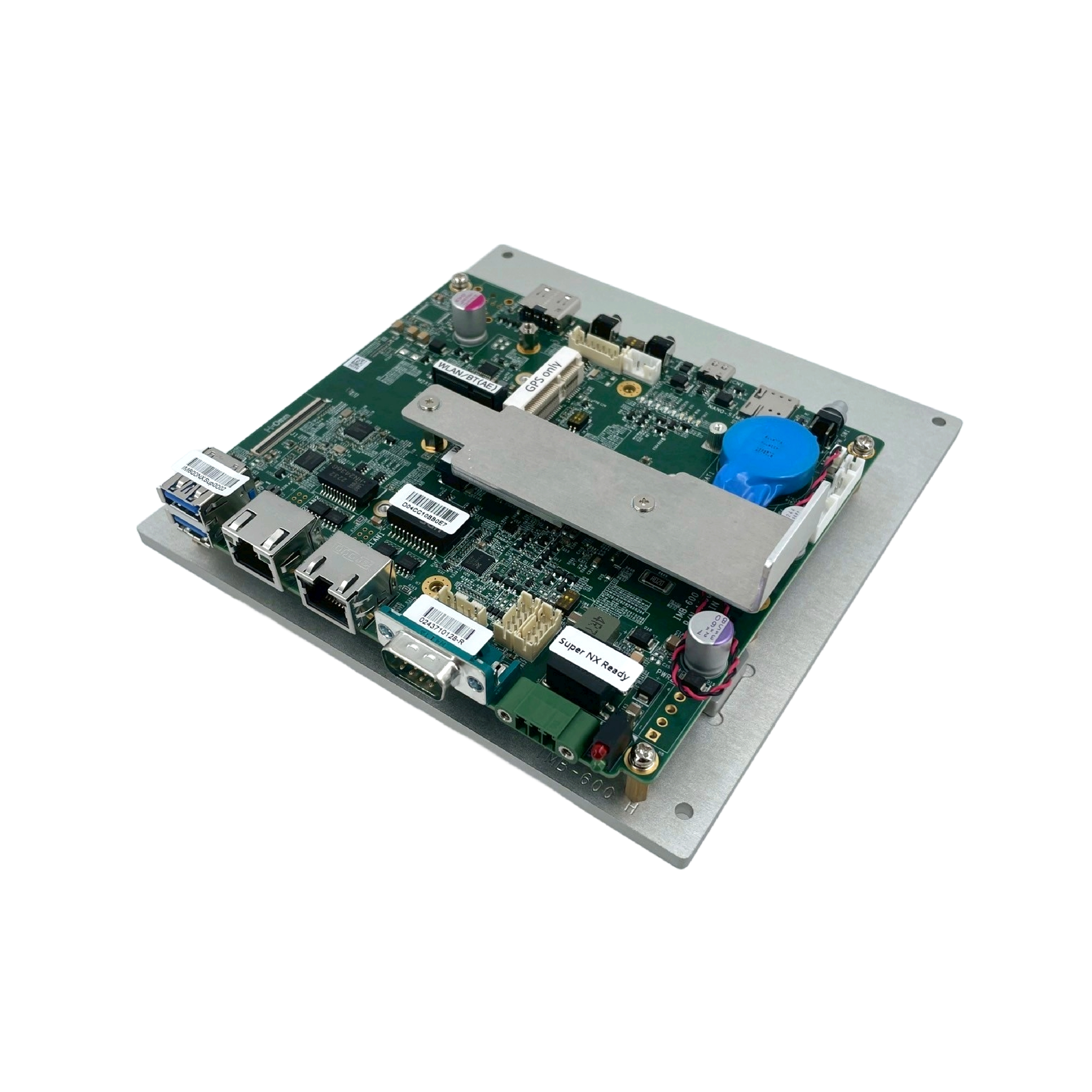

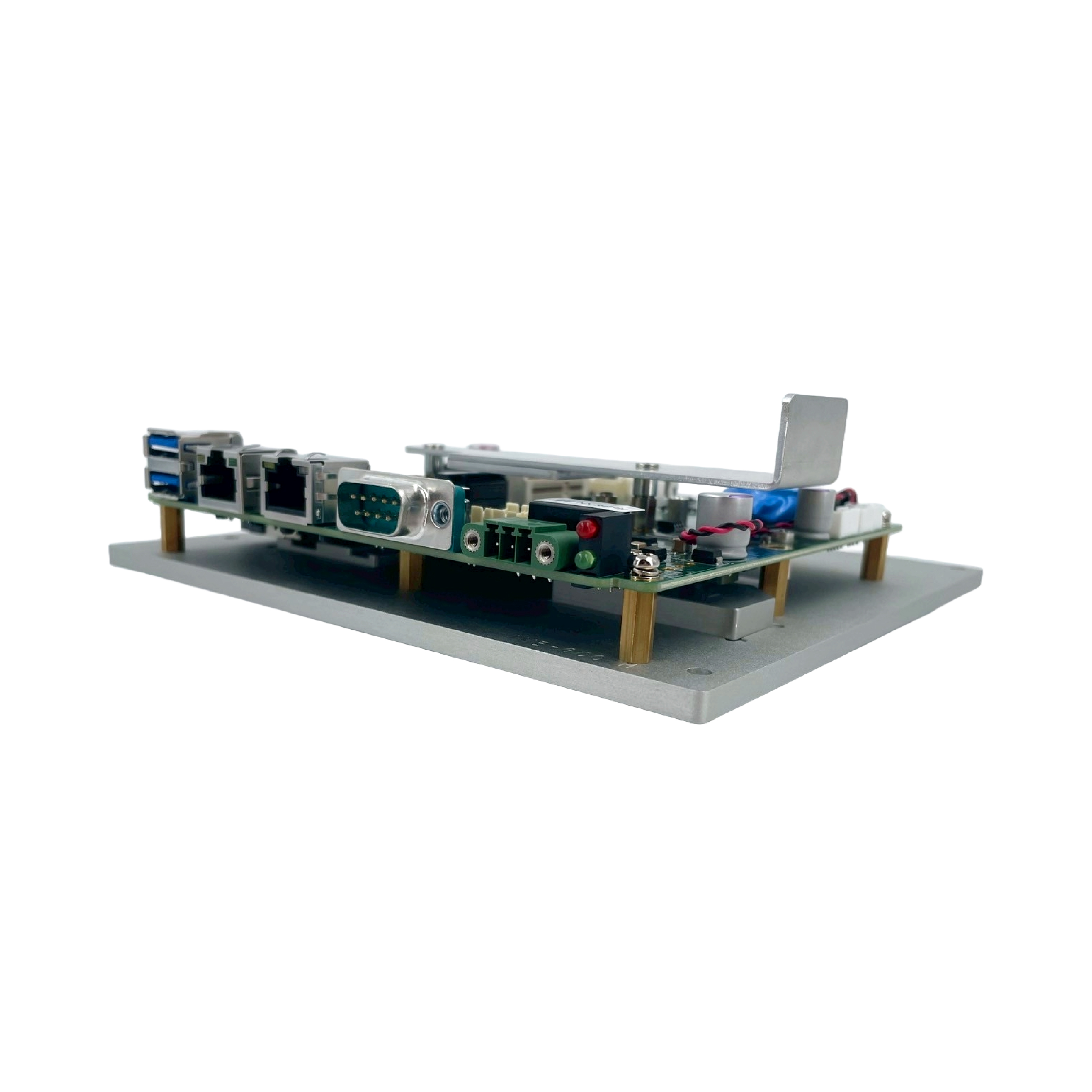

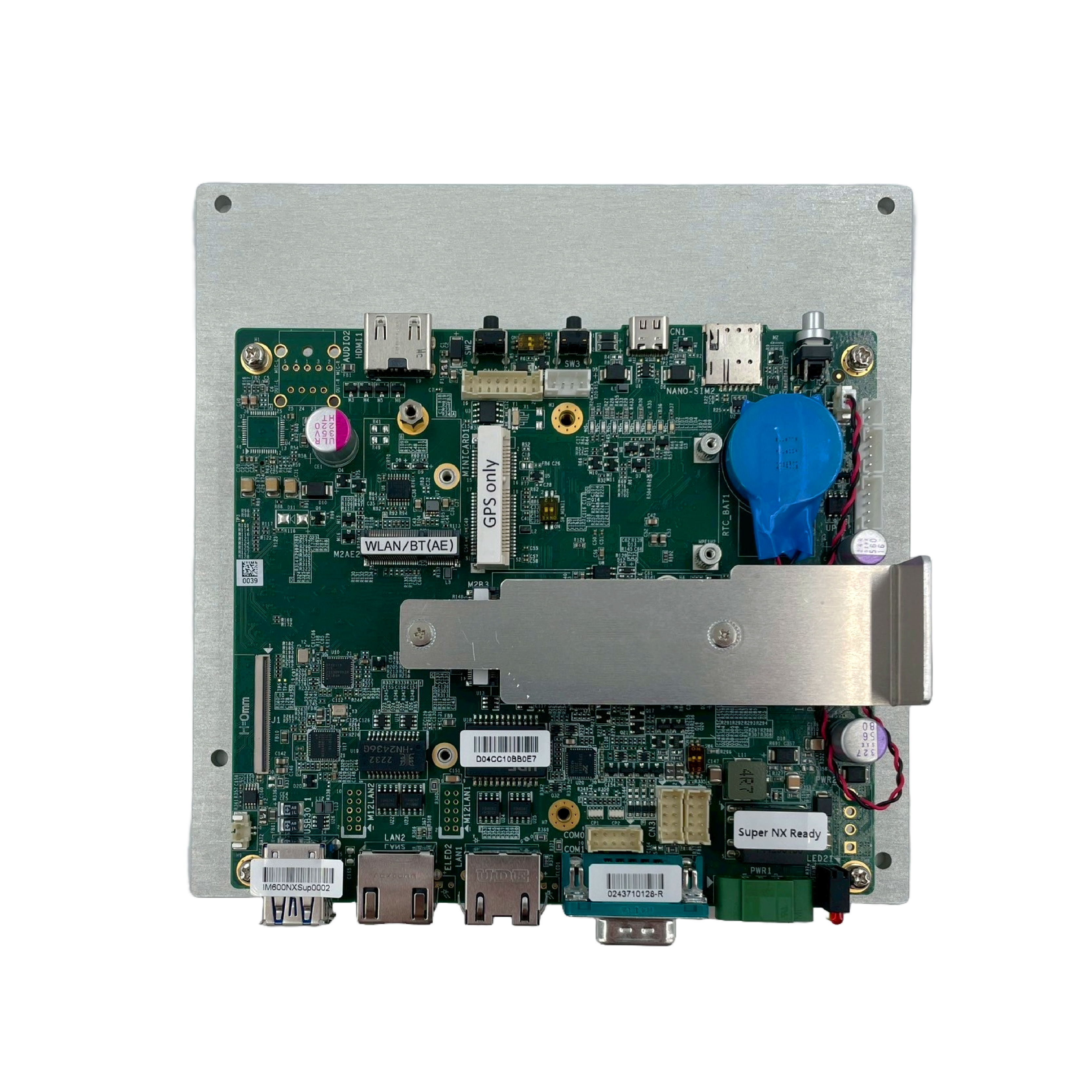

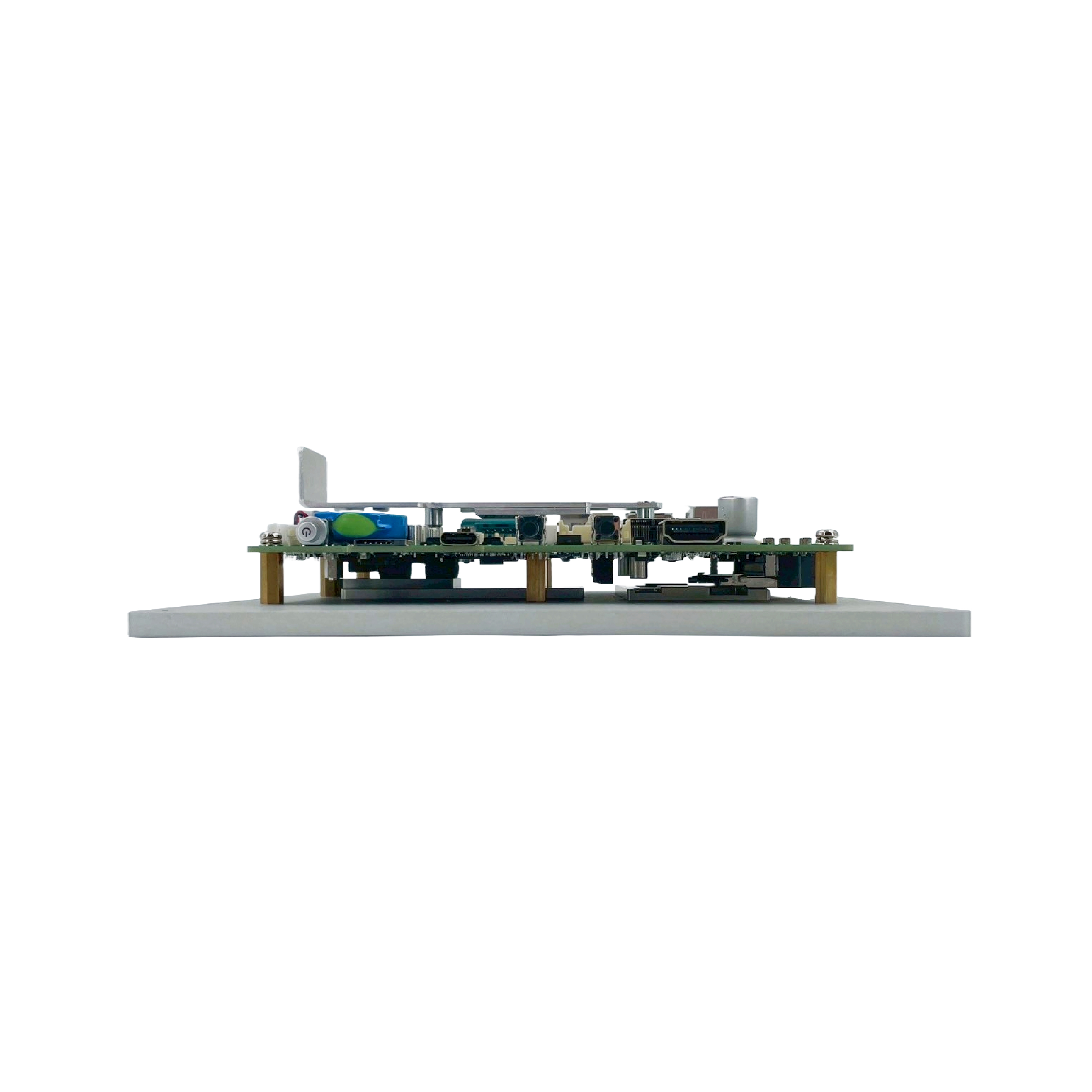

NVIDIA® Jetson Orin™ NX Developer Kit
• Carrier Supports NVIDIA® Jetson Orin™ NX SoM
• 2 x Ethernet Ports
• Eight Lanes MIPI CSI-2 for Camera Support
• Option GMSL-2 Deserializer Board
• Standard Mini-ITX Form-factor Chassis
• NVIDIA® Jetson Orin™ NX 16GB
(1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5)
• NVIDIA® Jetson Orin™ NX 8GB
(1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5)
1 x Intel® 2.5GbE, 1 x SoM Built-in GbE
Platform Security Controller (PSC), Security Engine (SE)
The self-reset mechanism for unresponsive system
1 x HDMI Type-A
1 x HD Audio from the HDMI
2 x RJ-45 connectors
1 x Eight lanes MIPI CSI-2 | D-PHY 2.1 via 50-pin FFC
1 x CAN FD via DB-9
2 x USB 3.2
4 x DI, 4 x DO (12VDC/100mA) via DB9 connector
1 x RS-232/422/485 via DB9 connector
1 x USB type-C for system recovery (device only)
• 1 x M.2 3042/3052 Key B (Supports USB 3.2 Interface)
• 1 x M.2 2230 Key E (Supports PCIe and USB 2.0 Interface)
1 x mPCIe supports USB2.0 interface
DC 9V-60V for 12/24/48V via 3-pin Terminal Block
OCP, OVP, Surge Protection, and Reversed Polarity Protection
Supports Smart Power Management
High-capacity coin cell battery for RTC
NVIDIA® JetPack 6.2 above, including Jetson Linux, and NVIDIA® development tools
-25°C ~ 50°C (-13°F ~ 122°F), with SSD, ambient w/ air flow 0.6m/s (ONX16 model)
-40°C ~ 80°C (-40°F ~ 176°F)
10% RH – 90% RH (non-condensing)
CE, FCC Class A, UKCA
1 x M.2 2280 Key M supports NVMe SSD (Pre-installed system BSP)
Aluminum Alloy
Mini-ITX Standard Mounting Holes
0.9 kg (1.98 lb)
• w/o VDB-100GDS4/101GDS4 :
170 (L) x 170 (W) x 35.44 (H) mm ( 6.7 x 6.7 x 1.4 inch)

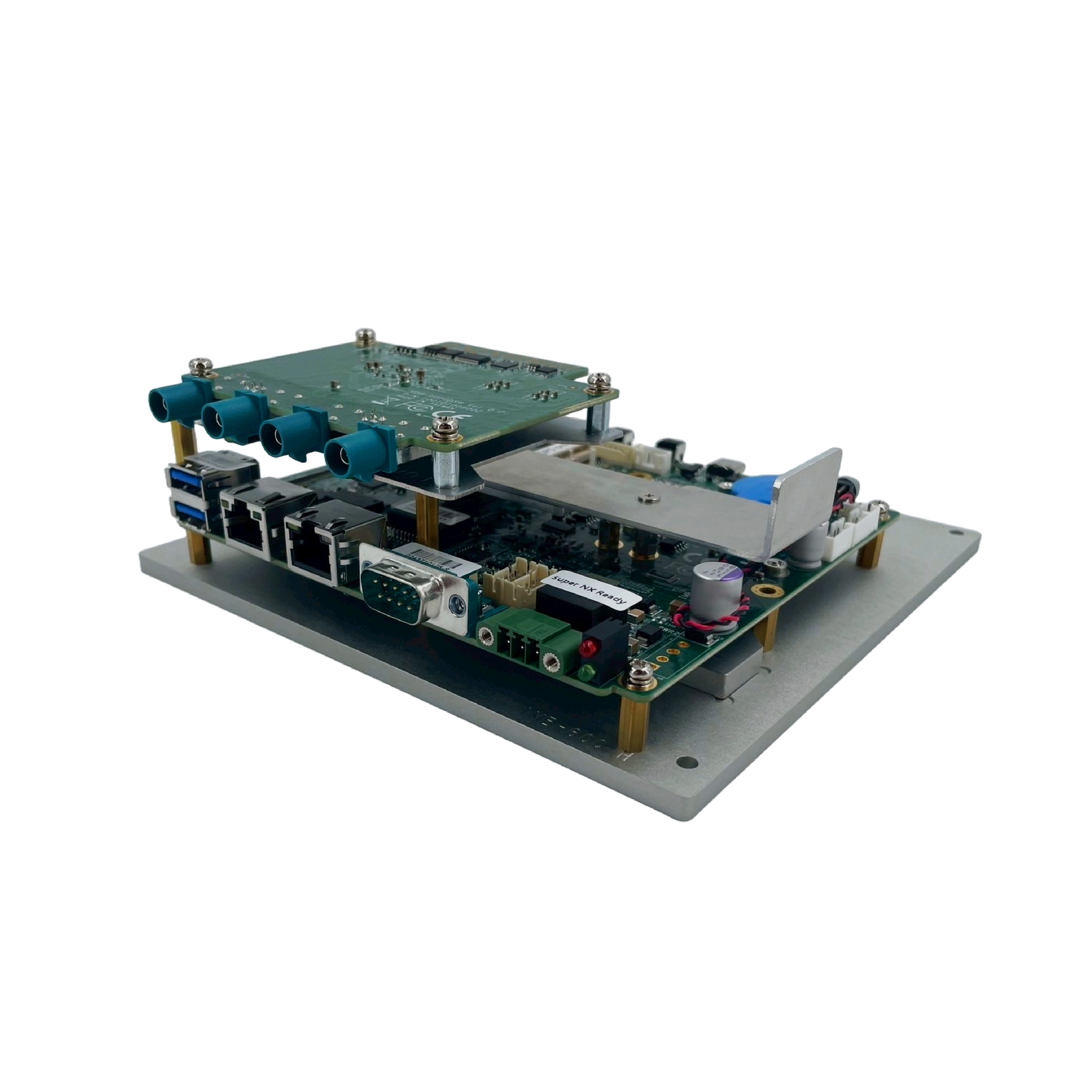

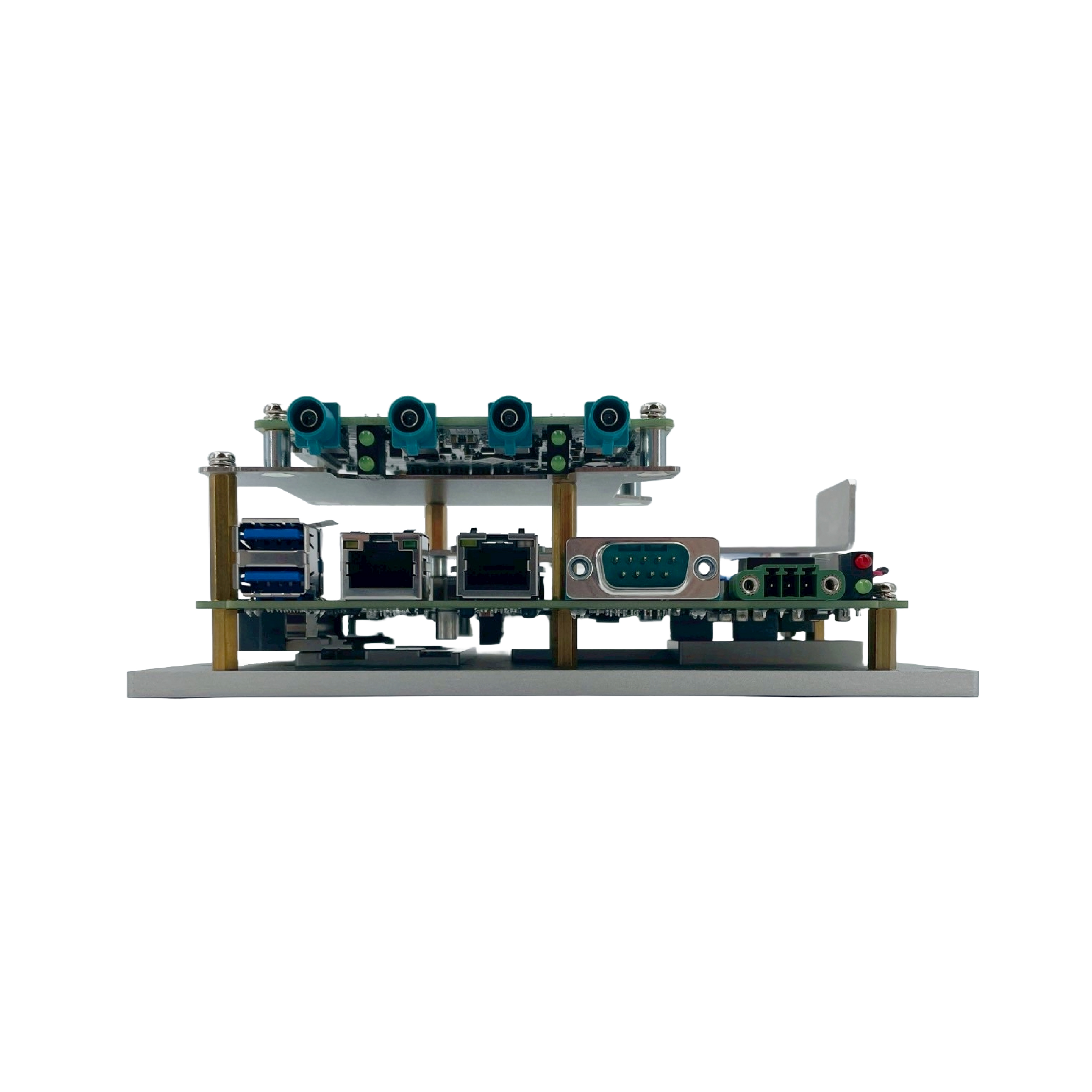

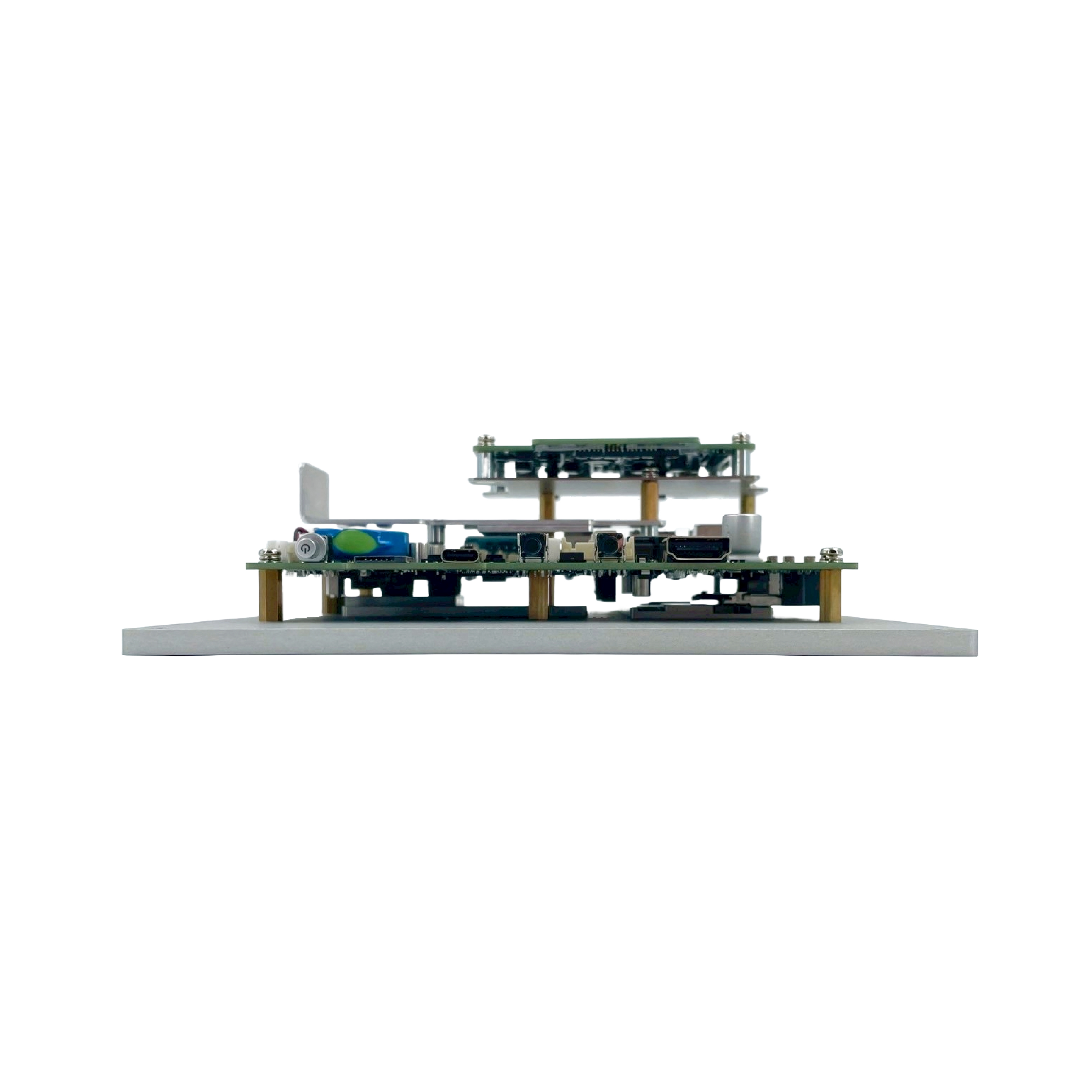

• w/ VDB-100GDS4/101GDS4 :
170 (L) x 170 (W) x 59.4 (H) mm (6.7 x 6.7 x 2.34 inch)
|
IMB-600-ONX16-DEV KIT |
IMB-600 Carrier with Jetson Orin NX 16GB SoM |
|
IMB-600-ONX8-DEV KIT |
IMB-600 Carrier with Jetson Orin NX 8GB SoM |
VDB-100GDS4 DEV KIT /4-port GMSL-2 Deserializer – Analog Devices MAX96724 (Option for Plus Version)
VDB-101GDS4 DEV KIT /4-port GMSL-2 Deserializer – Analog Devices MAX9296A (Option for Plus Version)
SSD 480 GB* / NVMe SSD 480GB w/ System BSP
SSD 240 GB* / NVMe SSD 240GB w/ System BSP
BBU-2300V2 / Battery Backup Unit 2350 mAh
NVIDIA® Jetson Orin™ NX Developer Kit
Made in Taiwan (Carrier PCBA)
M.2 2230 Wi-Fi Module
M.2 3042/52 WWAN Modem
mPCIe GPS Module
SINTRONES – VCM-1020G2 Series (Sony IMX390 2MP, 63.9°, GMSL-2, 63.9°/120°/186°)
oToBrite – otoCAM223
