Intel® Graphics
1 x DDR5-4800 SO-DIMM up to 16GB
TPM 2.0
Auto reset for unresponsive system
(custom 1-255 sec/min delay settings in BIOS)
2 x HDMI® up to 3840 x 2160 @ 60Hz as specified in HDMI 2.0b
1 x Line-out, 1 x Mic-in
2 x 2.5GbE (Intel I226-LM) via RJ-45
• 2 x USB 3.2 Gen 1
• 4 x USB 2.0
4 x DI (DC 5-36V), 4 x DO (DC 5V/100mA)
DC 9-36V (nominal power input DC 12V/24V) via 2-pin terminal block
OCP, OVP, surge protection, reversed polarity protection
-40°C ~ 70°C (-40°F ~ 158°F) with 0.6 m/s airflow
-40°C ~ 85°C (-40°F ~ 185°F)
10% RH ~ 90% RH (non-condensing)
CE, FCC Class A, UKCA, IEC/EN 62368-1
146 x 102 x 1.6 mm (5.74 x 4.02 x 0.06 in.)
160g (0.35 lb)
SMB-2615-zzzzz ( zzzzz=N150=Intel® Processor N150, zzzzz=x7433RE=Intel Atom® x7433RE)

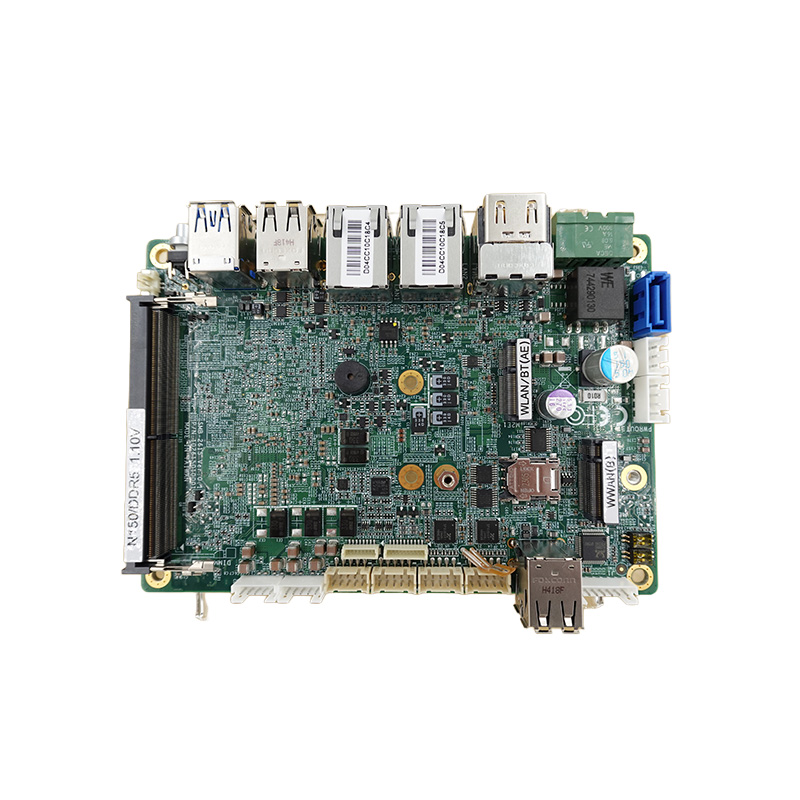

Intel® Twin Lake N150/Atom x7433RE 3.5″ SBC
Made in Taiwan
AC/DC 100-240V/12V 60W
1 x Heat Sink w/ Thermal Pad
4 x COM Cable, 1 x SATA w/ Power Cable, 1 x DIO Cable, 1 x Audio Cable
SINTRONES is excited to present the SBOX-2625, an ultra-compact edge computer offering a versatile range of processors — from the mainstream Intel® Twin Lake 4-core N150, to the advanced 8-core Core™ 3 N355, and the industrial-grade Intel® Amston Lake x7433RE — tailored to meet diverse application demands. Power-Efficient Industrial Edge Computer for Optimized Performance Integrated with the Intel® Twin Lake N150 featuring an ultra-low 6W TDP, the SBOX-2625 provides superior performance-per-watt efficiency compared to similar edge computers based on the Alder Lake-N series. Achieving the exceptional balance between computing performance and power consumption, this edge computer not only ensures reliable operation but also prolongs hardware lifespan, making it an ideal choice for energy-sensitive and resource-constrained applications across industries. Amston Lake Delivers Up to 1.7× Performance for Real-Time Edge Computing For models equipped with the industrial-grade Intel® Amston Lake x7433RE processor, the successor to Intel® Elkhart Lake series, the SBOX-2625 supports operating temperature ranging from -40°C to 70°C while achieving up to 1.7× higher performance than comparable systems using the Elkhart Lake x6000 series processors — all at equivalent power consumption. This performance boost enables faster data processing and real-time response, providing minimal latency and seamless integration that are critical for smart automation, edge computing, and industrial IoT applications. Ultra-Compact Design Reduces System Footprint by 50% Intentionally designed to achieve ultra-compact footprint, the SBOX-2625 is nearly half the size of its predecessors. The ultra-slim and fanless design ensures flexible deployment and minimal maintenance in various environments — from industrial control cabinets to retail systems — maximizing versatility and space utilization. Robust Power Protection and TPM 2.0 Security for Industrial Systems To ensure fail-safe operation, the SBOX-2625 supports a wide input voltage...
