NVIDIA® Jetson Rugged IP66 PoE Edge AI Computer
• NVIDIA® Jetson Orin™ NX 16GB
(1024 CUDA cores + 8-core ARM Cortex-A78AE CPU + 16 GB LPDDR5)
• NVIDIA® Jetson Orin™ NX 8GB
(1024 CUDA cores + 6-core ARM Cortex-A78AE CPU + 8 GB LPDDR5)
Platform Security Controller (PSC), Security Engine (SE)
1 x Intel® 2.5GbE, 1 x SoM Built-in GbE
The self-reset mechanism for unresponsive system
1 x HDMI® (w/ cover)
1 x HD Audio from the HDMI®

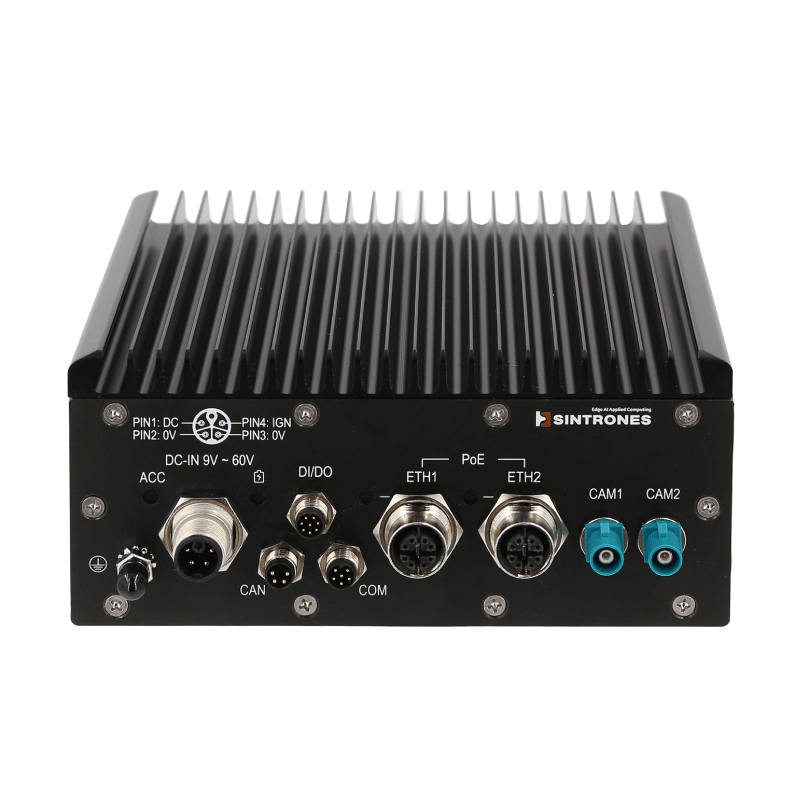

2 x M12 X-coded connectors
2 x PoE PSE Class 3 (15 watts)
2 x GMSL-2 via FAKRA connectors
1 x CAN FD via M8 connector
1 x USB 3.2 (with a cover)
3 x DI, 4 x DO (12VDC/100mA) via M8 connector
1 x RS-232/422/485 via M8 connector
1 x USB Type-C for System Recovery (Device only)

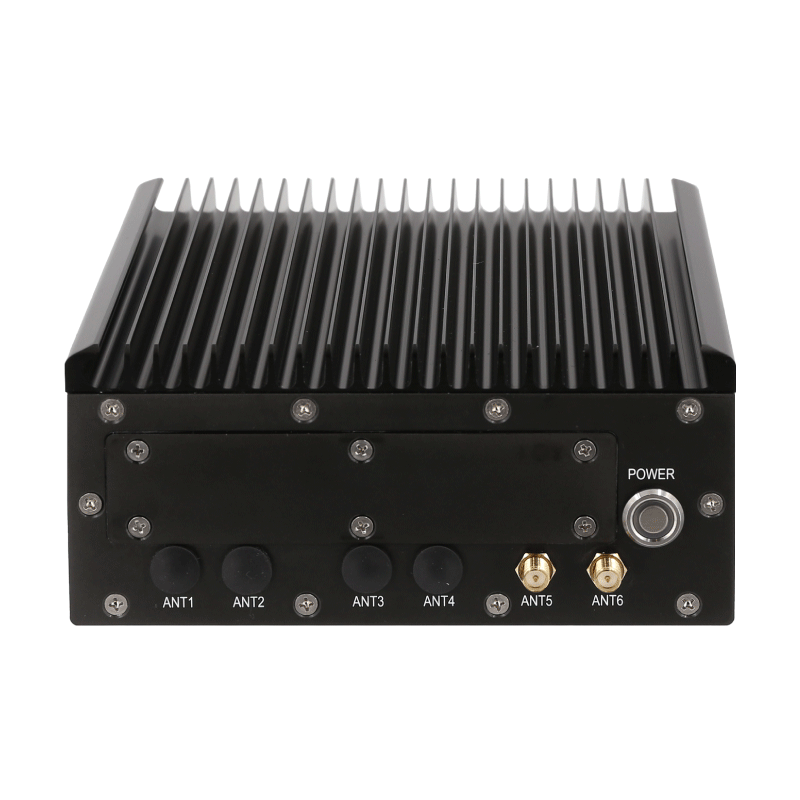

6 x Antenna holes with protection caps
1 x M.2 2280 Key M supports NVMe SSD (Pre-installed system BSP)
NVIDIA® JetPack 6.2 above, including Jetson Linux, and NVIDIA® development tools
DC 9V-60V for 12/24/48V via M12 K-coded
OCP, OVP, Surge Protection, and Reversed Polarity Protection
Supports Smart Power Managemen
High-capacity coin cell battery for RTC
Backup battery for system power backup
Low-Temp. Starter Enabled
Condition: Default power mode setting without stress testing
Condition: 2 x GMSL-2 enabled without stress testing
Condition: Stress testing with 2 x GMSL-2 and 2 x PoE enabled
Powered by A Built-in BBU
Condition: 2 x GMSL-2 enabled for 10 min without stress testing
-40°C ~ 80°C (-40°F ~ 176°F)
10% RH – 90% RH (non-condensing)
Random – IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810G – Method 514.6, Procedure I, Category 4
MIL-STD-810G – Method 516.6, Procedure I, trucks and semi-trailers=15G (11ms) with SSD
CE, FCC Class A, UKCA, E-mark, EN50155, EN45545-2 (R25)
Aluminum alloy
Fanless passive cooling design
Wall-mounting
1.78 kg
150 (L) x 138 (W) x 66 (H) mm (6.0 x 5.5 x 5.6 inch)
IP66
IBOX-602P-IP66-ONX16｜NVIDIA® Jetson Orin™ NX NX 16GB / 2 x PoE / 2 x GMSL-2 / IP66
IBOX-602P-IP66-ONX8｜NVIDIA® Jetson Orin™ NX NX 8GB / 2 x PoE / 2 x GMSL-2 / IP66
NVIDIA® Jetson Orin™ NX NX SoM w/ 2x LAN / 2x PoE / 2x GMSL-2 / 1x CAN FD / DC 9-60V / IP66 Edge AI Computer
Made in Taiwan
M.2 2280 NVMe SSD 240GB / 480GB / 960GB
*The NVMe SSD is a mandatory accessory for this product.
M.2 2230 Wi-Fi Module
M.2 3042/52 WWAN Modem
M.2 2242 GPS Module
BAT-2300v2 (Operating Temp. :-10°C ~ 50°C (14°F ~ 122°F))
AC/DC 100-240V/24V 160W C14 DC plug power adapter
Taipei, Taiwan, April 22, 2025 – SINTRONES Technology Corp. (TWSE 6680), a global leader in edge AI computing, is excited to present the IBOX-602P-IP66, a quick-to-deploy solution that seamlessly bridges AI compute capability with uncompressed videos transmitted via GMSL-2 technology, ensuring real-time image processing and data-driven decision-making at the edge, making it a top choice for various automotive applications that require machine vision such as self-driving cars, agricultural autonomous vehicles, smart traffic management, medical imaging, security inspection, and industrial automation. Enhancing Operational Excellence in Volatile Environments Incorporating NVIDIA® Jetson Orin™ NX module and JetPack 6.2 SDK, Analog Devices® GMSL-2 solution, a well-built IP66 water-resistance and dustproof enclosure, and meticulously-selected reliable connectors, the IBOX-602P-IP66 is resilient to any hostile conditions, relentlessly delivering high performance for edge AI applications. To further combat extremely low temperature environments or tackle unexpected power shortage, an optional thermal solution or UPS backup battery is also available for customer needs. Compact Yet Full Featured for Rapid and Flexible Deployment The compact edge AI computer is tailored for easy installation and smooth integration by its small physical footprint. Meanwhile, a wide range of power input from DC 9V to 60V offers high tolerance for large fluctuations in 12V/24V/48V vehicle systems. Other purposely designed features include the smart power management with ignition detection and watchdog mechanism that constantly monitor the system status to ensure smooth shutdowns and data integrity, the built-in CAN FD that is widely used for in-vehicle communication, serial and DIO ports for peripherals control, and dual PoE that supply power to the connected IP cameras, LiDAR sensors or other peripherals. Seamless Mobility for Uninterrupted Data Transmission With support for an M.2 expansion module and dual Nano SIM cards, the IBOX-602P-IP66...
