Platform Security Controller (PSC), Security Engine (SE)
Auto reset for unresponsive system
Built-in 3-axis accelerometer
• 1 x M.2 3042/3052 Key B for WWAN w/ dual SIM support
• 1 x M.2 2230 Key E for Wi-Fi/BT (For IBOX-604-G2W only)
1 x M.2 2242 Key M for NVMe SSD
DC 10-60V (nominal power input DC 11V/22V/58V) via 3-pin terminal block
OCP, OVP, surge protection, reversed polarity protection
Ignition detection, Smart Power Management
Built-in RTC coin cell battery

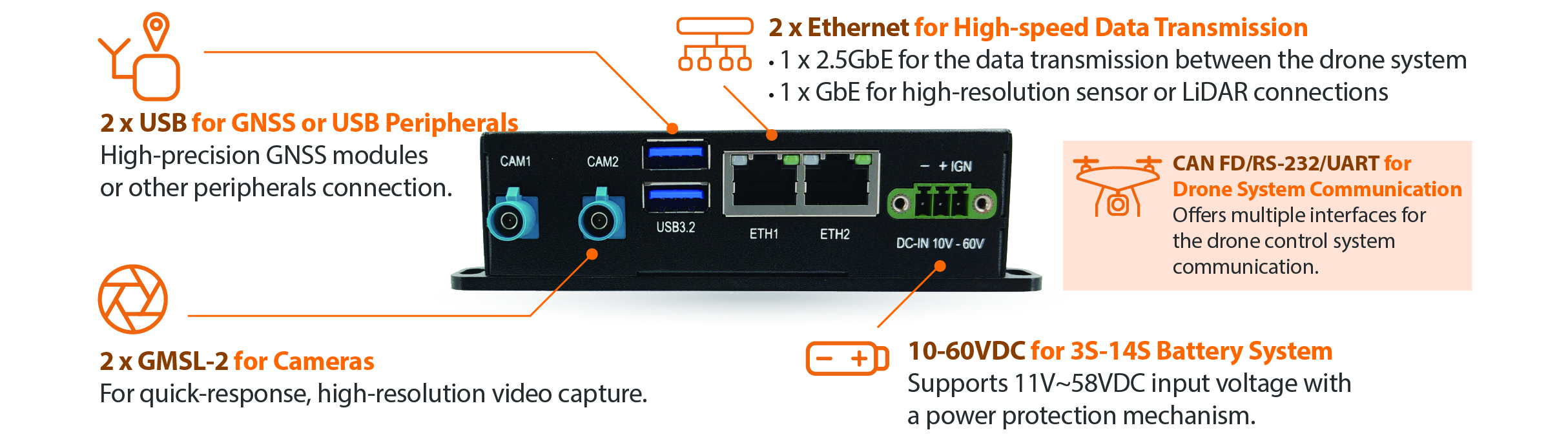

1 x HDMI® Type-A output
1 x HD audio output via HDMI®
• 1 x 2.5GbE (Intel® I226-IT) via RJ-45
• 1 x GbE (NVIDIA SoM) via RJ-45
2 x GMSL-2 via FAKRA
1 x CAN FD
2 x USB 3.2
1 x DI, 1 x DO, I2C (optional)
1 x UART w/ 3.3VDC (connector shared with CAN FD)
1 × RS-232/422/485
1 x USB type-C for system recovery (device only)
NVIDIA® JetPack 6.2 or above
(Jetson Linux and NVIDIA® development tools included)
CE, FCC Class A, UKCA
-25°C ~ 50°C (-13°F ~ 122°F) with 0.6 m/s airflow
*Operating temperature varies by accessories installed.
-40°C ~ 80°C (-40°F ~ 176°F)
10% RH ~ 90% RH (non-condensing)
• MIL-STD-810H, Method 514.8, Procedure I, Cat.4 (Operating)
• IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis
MIL-STD-810H, Method 516.8, Procedure I,
Trucks and semi-trailers=15G (11ms) with SSD (Operating)
Aluminum Alloy
3 x SMA connector mounting hole
Wall mounting
< 339 g (Excluding enclosure)
*Included enclosure (1 x SoM, 2 x DB-9 cable)
120 x 115 x 32 mm (4.73 x 4.53 x 1.26 in.)

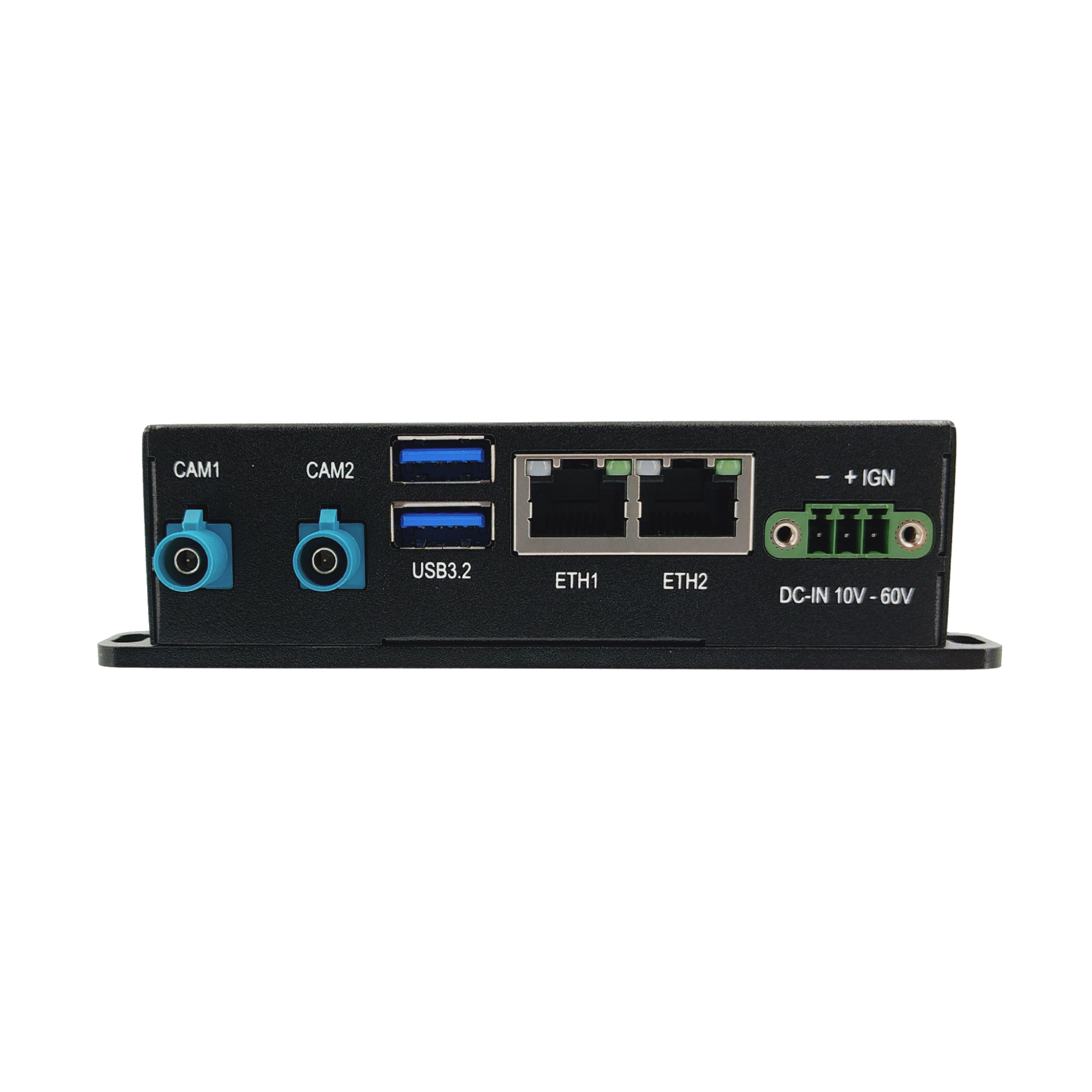

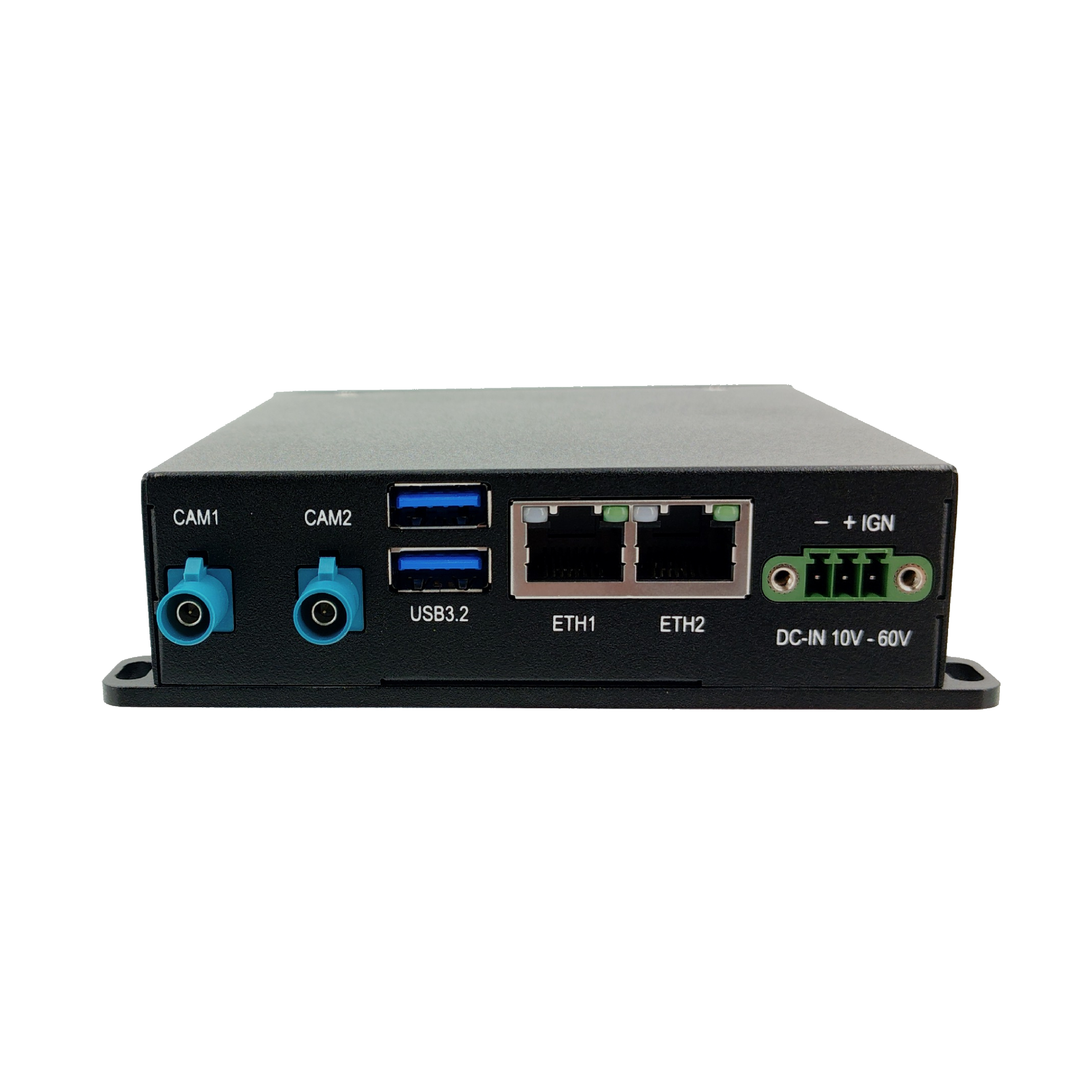

NVIDIA® Jetson Orin™ NX SoM w/ 2 x GMSL / 1 x CAN FD / 1 x UART Lightweight AI Drone Computer
Made in Taiwan
M.2 2242 Key M NVMe SSD -40°C ~ 85°C
M.2 2230 Key A-E Wi-Fi module, -40°C ~ 85°C
M.2 3042/3052 Key B WWAN module, -40°C ~ 85°C
M.2 2242 Key B GNSS module, -40°C ~ 85°C
AC/DC 100-240V/12V 60W C14 DC plug power adapter
SINTRONES Technology Corp. proudly unveils the IBOX-604-G2, the world’s lightest compact edge AI computer for drones, fleets, and autonomous mobility. Designed for maximum space efficiency and payload capacity, this industrial-grade AI minicomputer is set to transform edge AI deployment across autonomous platforms — unlocking new possibilities once out of reach. Small Footprint Design for Maximum Space and Energy Efficiency Measuring only 3.2 x 11.5 x 12 cm with ultra-lightweight design and weight about 0.3kg, the world’s lightest compact edge AI computer, our IBOX-604-G2 fits neatly into a compact NEMA 3R junction box or mounts seamlessly on unmanned vehicles and aircraft, while preserving full load potential. By reducing overall vehicle or aircraft weight, this palm-sized embedded AI system lowers energy consumption while increasing payload capacity. Versatile Power Input, Reliable Performance Built for optimal balance of versatility and reliability, the IBOX-604-G2 supports a wide input voltage range from DC 10V to 60V, making it ideal for 3S-14S lithium battery systems. This versatility enables convenient deployment across applications with low and high power demands. Additionally, this edge AI computer features smart power management for ignition detection and safe shutdown, ensuring data integrity and extending system longevity. Advanced Vision AI for Real-Time Autonomous Decisions Integrated with multiple carefully selected I/O interfaces, the IBOX-604-G2 is engineered for automation scenarios demanding high-performance AI, real-time image processing, and scalable connectivity. Powered by NVIDIA® Jetson Orin™ modules and equipped with two FAKRA Z connectors, this lightweight edge AI computer delivers up to 157 AI TOPS and supports automotive-grade GMSL-2 cameras for high-bandwidth video transmission and real-time data analytics. Moreover, this compact AI system includes an M.2 2230 Key E slot for Wi-Fi module (IBOX-604-G2W only), dual Ethernet ports...
