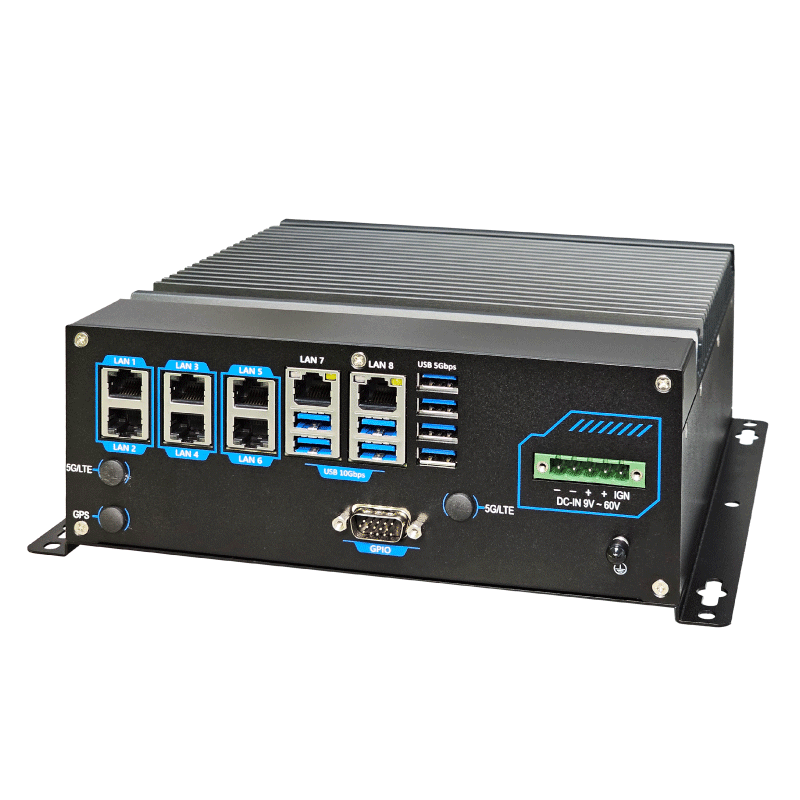

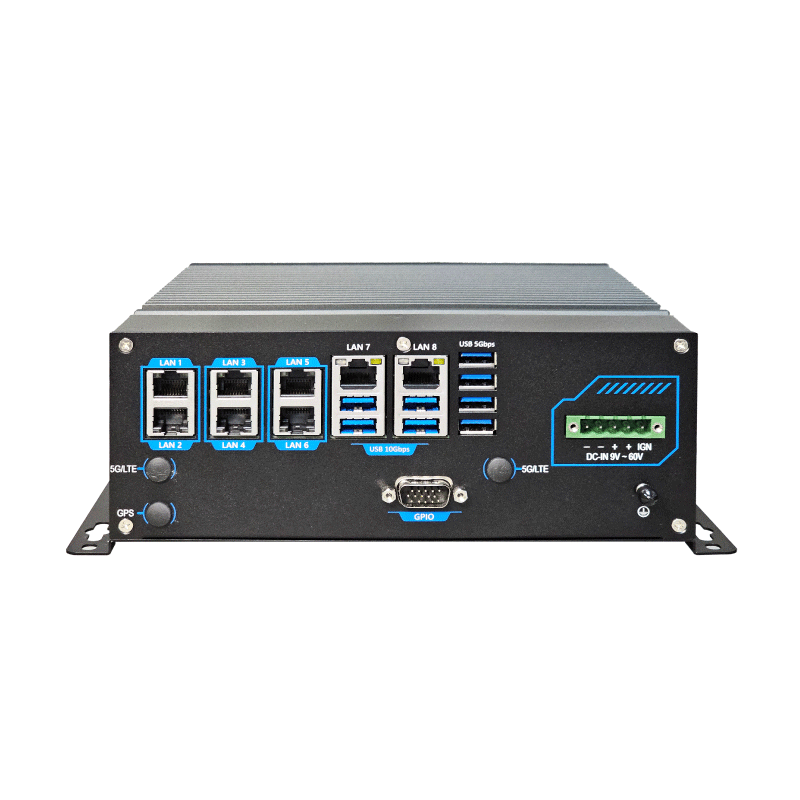

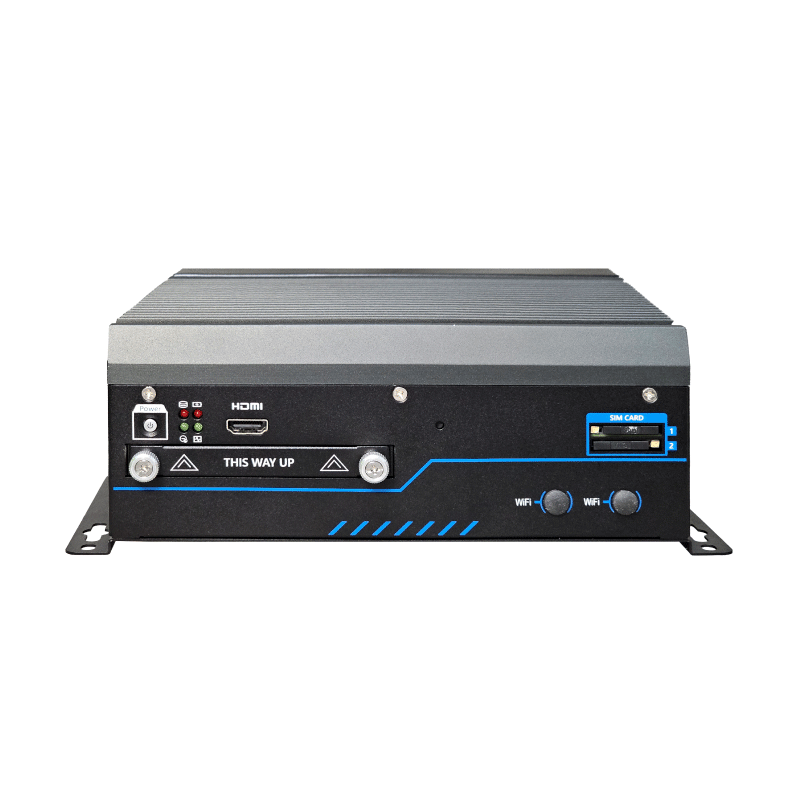

ABOX-5211P-i5

Intel® 10th Generation Core™ i5-10500TE Processor On-Board Computer

Product Status: Available
Features
  • 2 x M.2 2280 Key M for NVMe or AI Accelerator on Module
  • 1 x M.2 2280 Key M for NVMe or SATA SSD
  • 8 x GbE with PoE Support for Easy Connection with IP Camer
SYSTEM
Processor

Intel® 10th Generation Core™ i5-10500TE

Graphics

Processor Built-in GPU – Intel® UHD 630 Series Graphics

Chipset

Q470E

Memory

2 x SO-DIMM Support DDR4-3200 up to 64GB

Network

8 x I210-AT

Security

TPM 2.0

Watchdog

System power on/off 1 ~ 255 min setting by BIOS

INTERFACE
Video

2 x DP 1.4 (Maximum Resolution: 7680 x 4320 @ 60Hz)

2 x HDMI (Maximum Resolution: 4096 x 2160 @ 60Hz)

Audio

1 x Line-out, 1 x Line-in, and 1 x MIC

Ethernet

8 x GbE with PoE (Total 120W Power Budget)

USB

4 x USB 3.2 Gen 10Gbps, 4 x USB 3.2 5Gbps

DIO

8 x DI (9~60VDC), and 4 x DO (5V, 100mA)

Serial Port

4 x RS-232/422/485

INTERNAL EXPANSION
M.2

2 x M.2 3042/52 Key B for WWAN (USB3.0) with Dual SIM Support
1 x M.2 2230 Key E for Wi-Fi

Mini-PCIe

2 x Mini-PCIe

STROAGE
INTERNAL

2 x M.2 2280 Key M for PCIe 4.0 x4 NVMe SSD
1 x M.2 2280 Key M for PCIe 4.0 x4 NVMe or SATA SSD (Auto Detection)
2 x 2.5” Drive Bay for SATA Type SSD

POWER
Power Input

DC 9~60V

Power Protection

OCP, OVP, Surge and Reversed Polarity Protection

POWER MANAGEMENT

Ignition Detection, and Power off Delay Time Setting by Software

SOFTWARE
Operating System

Windows 10 IoT Enterprise LTSC
Windows 11 IoT Enterprise
Ubuntu Desktop 22.04

ENVIROMENTAL
Operating Temp.

-40ºC ~ 70ºC w/0.6 m/s airflow (for barebone system)
*Operating Temp. Varies by Accessories Installed.

Storage Temp.

-40ºC ~ 80ºC

Relative Humidity

10% RH – 90% RH (non-condensing)

Vibration (with SSD)

MIL-STD-810G, Method 514.6, Procedure I, Cat.4 (Operating)
IEC60068-2-64, random, 2.5G@5~500Hz, 1hr/axis

Shock (with SSD)

MIL-STD-810G, Method 516.6, Procedure I,
Trucks and semi-trailers=15G (11ms) with SSD (Operating)

CERTIFICATION/STANDARD

CE
FCC Class A
E-Mark
ECE R118

MECHANICAL
Construction

Aluminum Alloy

Mounting Method

Wall Mount

Weight

3.5kg

Dimensions

150 mm (L) x 135 mm (W) x 66 mm (H)
